Atrio Alto Atrium Wall System

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Maximum Glazing Panel Width: 60″
  • Maximum Glazing Panel Height: Full height up to 12′-0″
  • Glazing Available: 3/8″, 7/16″, 1/2″, 9/16″, 3/4″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available

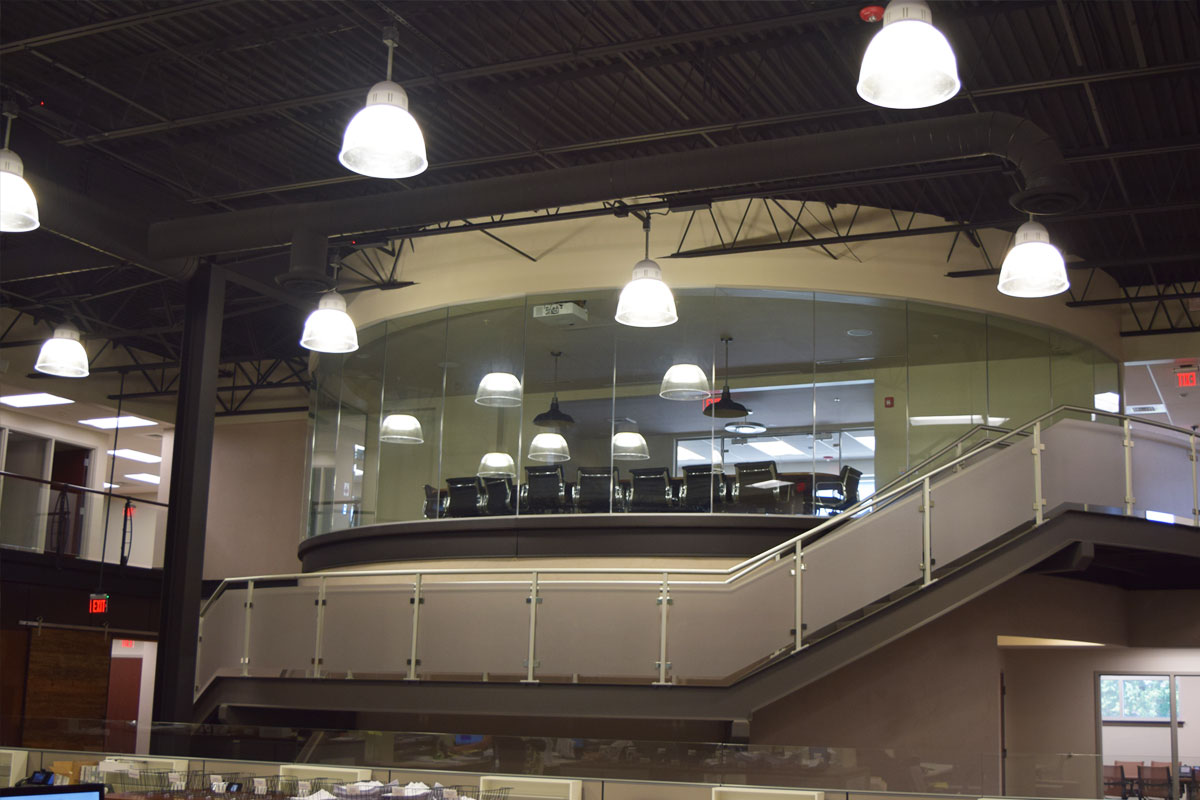

Gallery

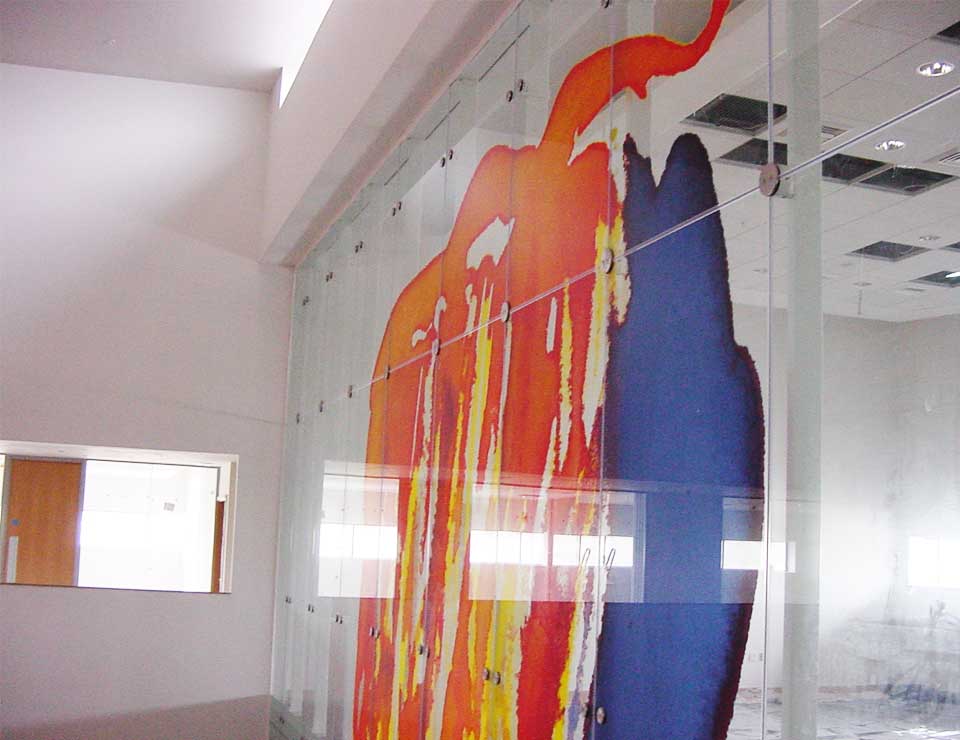

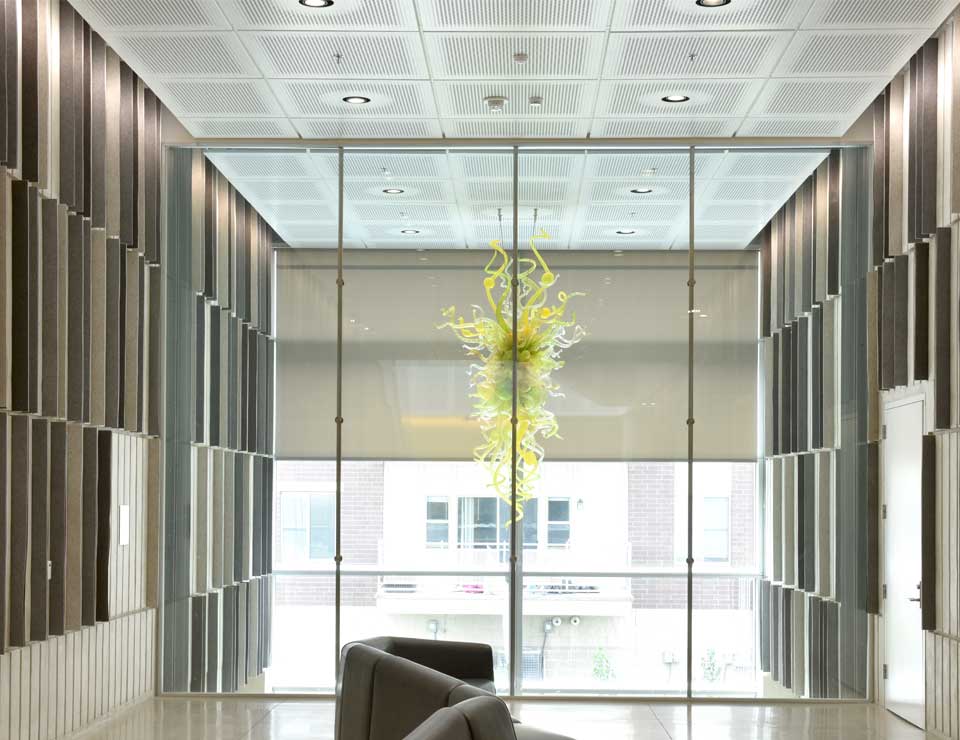

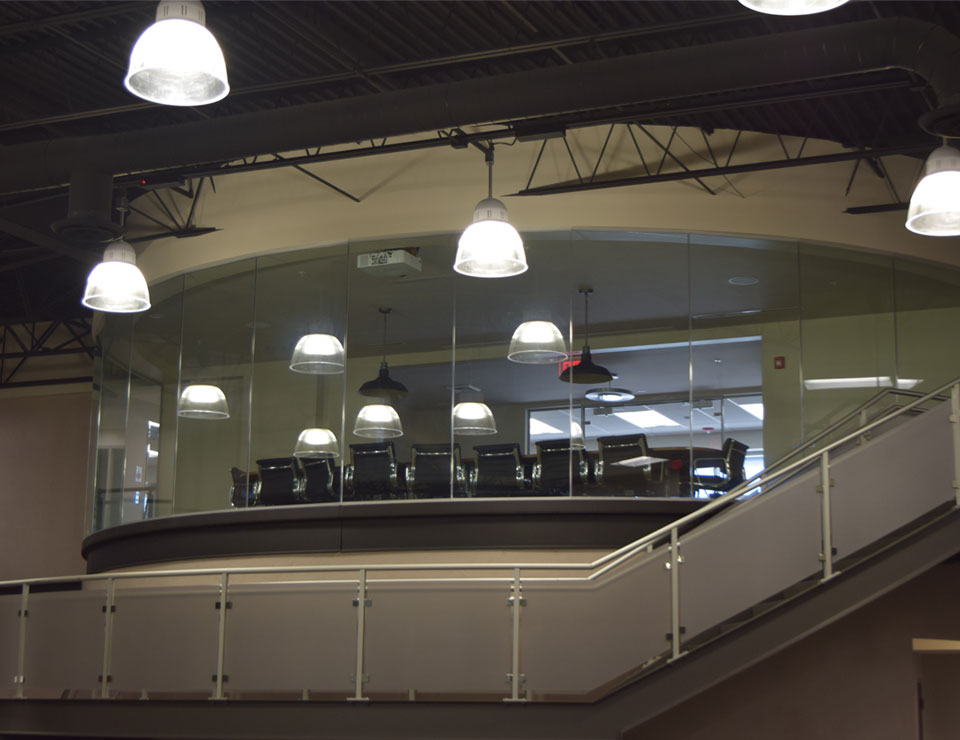

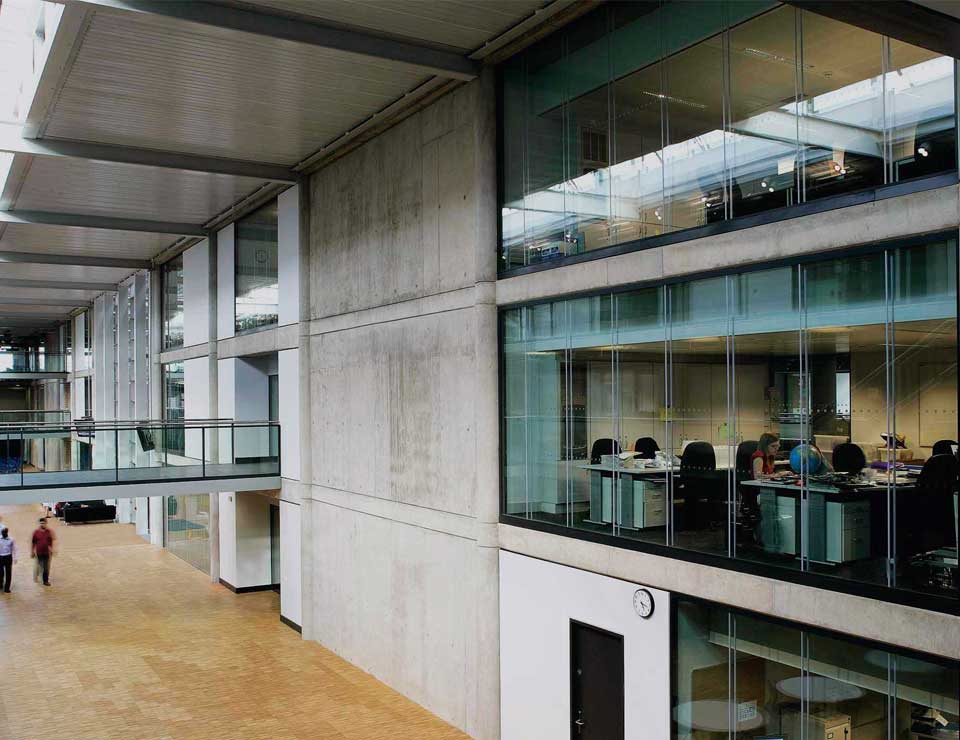

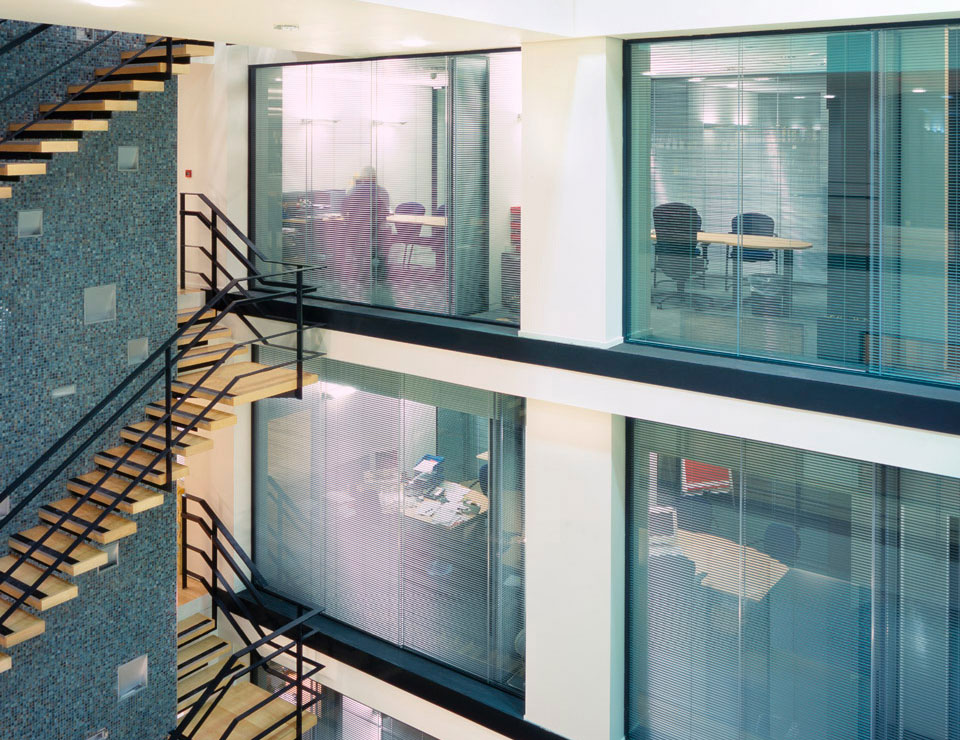

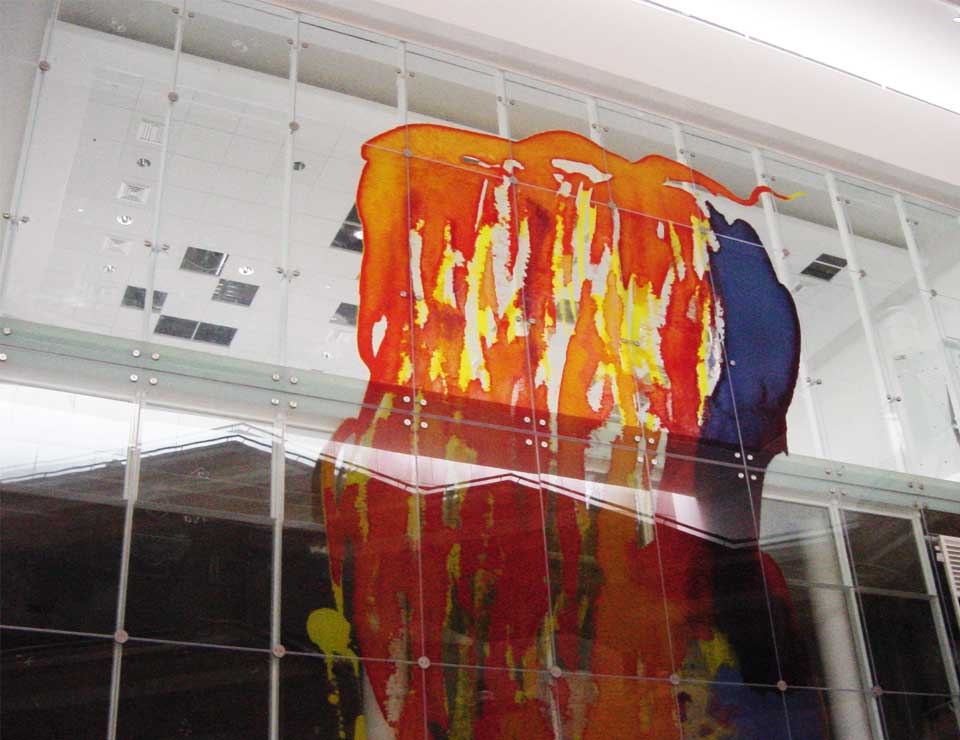

Description

Based upon the Solare Single Glazed or Acoustic Double Glazed Partition System, the minimum STC wall rating is 35. The system is ideal for interior offices and commercial spaces to utilize the benefits offered from an interior atrium.

The 1”w x 1”h (single glazed) or 4”w x 1”h (double glazed) aluminum track accommodates tempered, laminated, low iron and LCD glazing and may be of standard or custom RAL color. The track may also be of a straight or curved configuration.

The maximum height for the Atrium Wall System is 12’-0” and maximum panel width is 60”.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

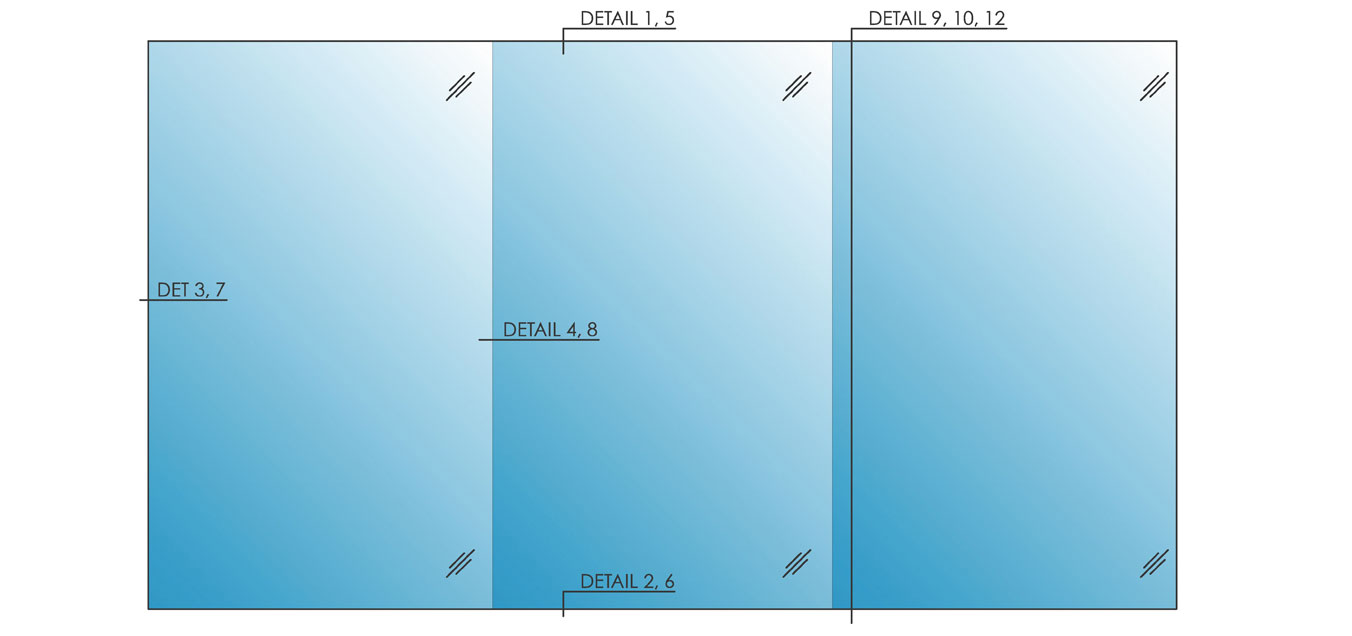

Elite Freestanding Elevation
  • Detail 01

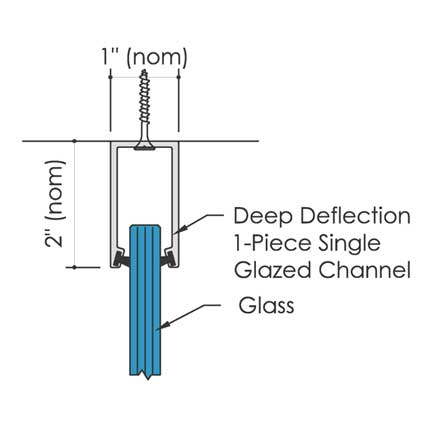

    Standard Track Single Glazed Head

    Standard Track Single Glazed Head Download Detail: DWG | DXF | PDF
  • Detail 02

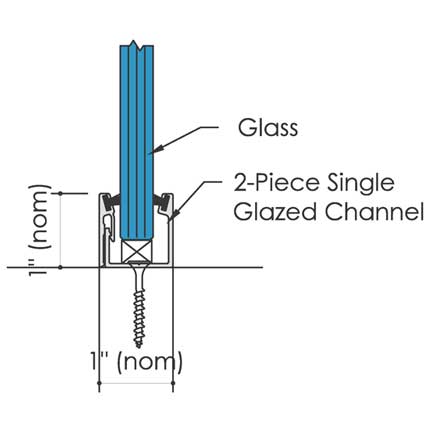

    Standard Track Single Glazed Base

    Standard Track Single Glazed Base Download Detail: DWG | DXF | PDF
  • Detail 03

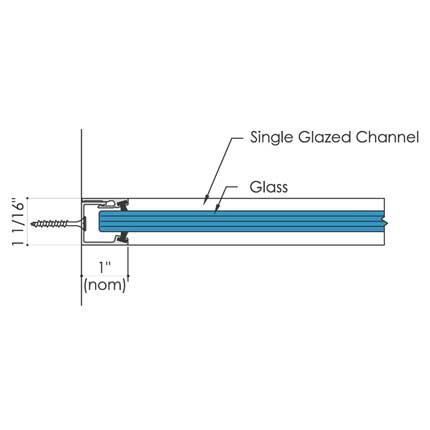

    Standard Track Single Glazed Jamb

    Standard Track Single Glazed Jamb Download Detail: DWG | DXF | PDF
  • Detail 04

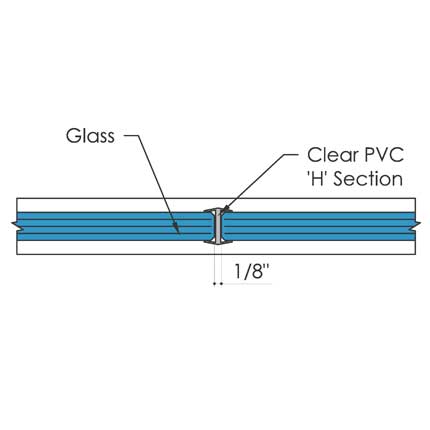

    ‘H’ Section Straight Joint

    'H' Section Straight Joint Download Detail: DWG | DXF | PDF

  • Detail 05

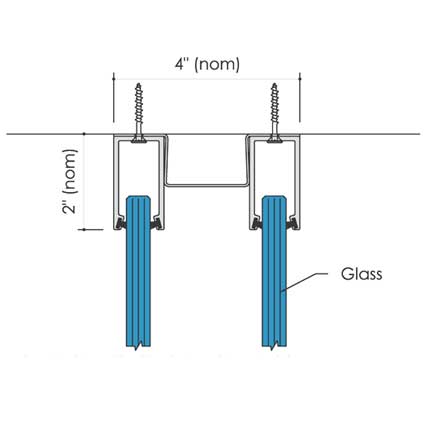

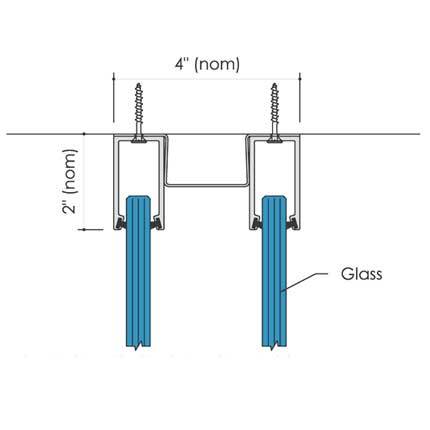

    Standard Track Double Glazed Head

    Standard Track Double Glazed Head Download Detail: DWG | DXF | PDF
  • Detail 06

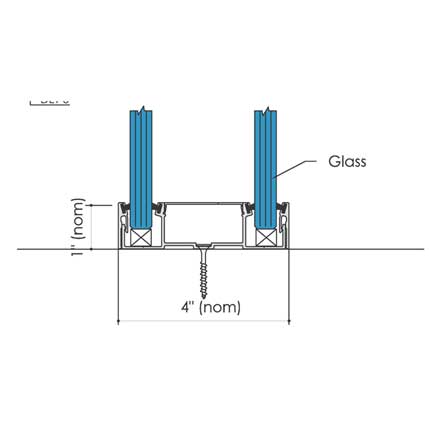

    Standard Track Double Glazed Sill

    Standard Track Double Glazed Sill Download Detail: DWG | DXF | PDF
  • Detail 07
    Standard Track Double Glazed Jamb

    Standard Track Double Glazed Jamb Download Detail: DWG | DXF | PDF
  • Detail 08

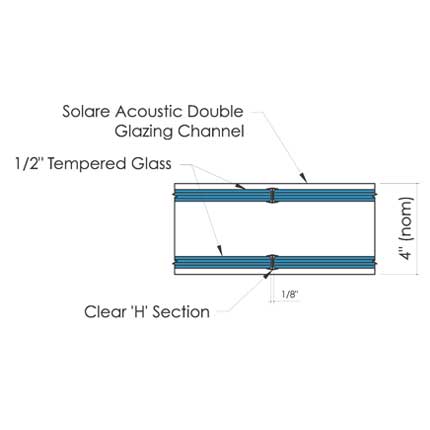

    H Section Straight Joint

    H Section Straight Joint Download Detail: DWG | DXF | PDF

  • Detail 09

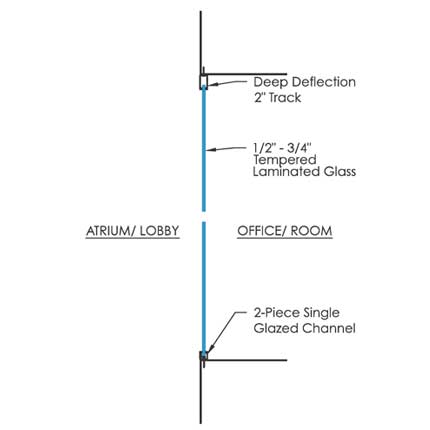

    Single Glazed Section

    Single Glazed Section Download Detail: DWG | DXF | PDF
  • Detail 10

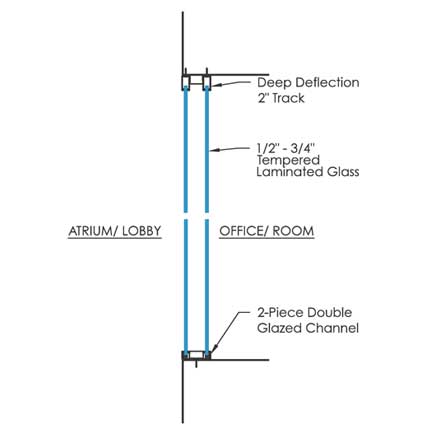

    Double Glazed Section

    Double Glazed Section Download Detail: DWG | DXF | PDF
  • Detail 11

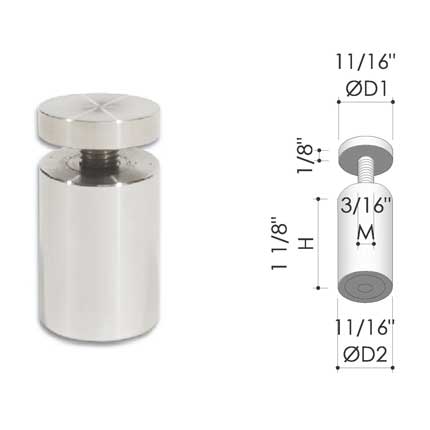

    Fastener

    Fastener Download Detail: DWG | DXF | PDF
  • Detail 12

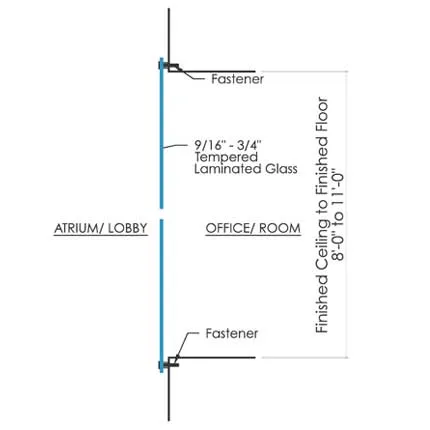

    Standoff Section

    Standoff Section Download Detail: DWG | DXF | PDF

The Atrium Wall System is fully demountable. It’s components contain recycled material and are infinitely recyclable. The dry jointed glazed installation does not require the use of adhesives. The Acoustic Wall System meets LEED Characteristics.

The System meets LEED Characteristics:
LEED 2009 (v3): MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.

LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.
