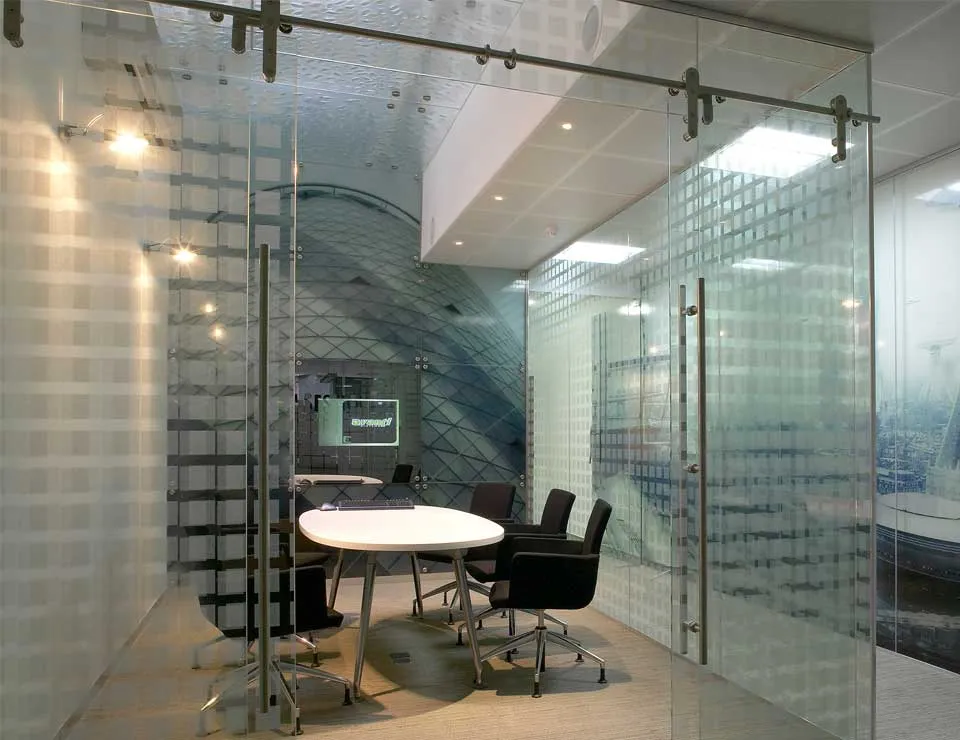

Eclipse Sliding Glass Barn Doors

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Highlights: Full Height Available & ADA Compliant
  • Glazing Available: 3/8″, 1/2″, 9/16″, 3/4″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available
  • Available Hardware: Free Swing & Self Closing Options, Locking Lever Handle, Standard Lever Handle, 4 1/2″ Hinges, Recessed Floor Closer, Overhead Closer

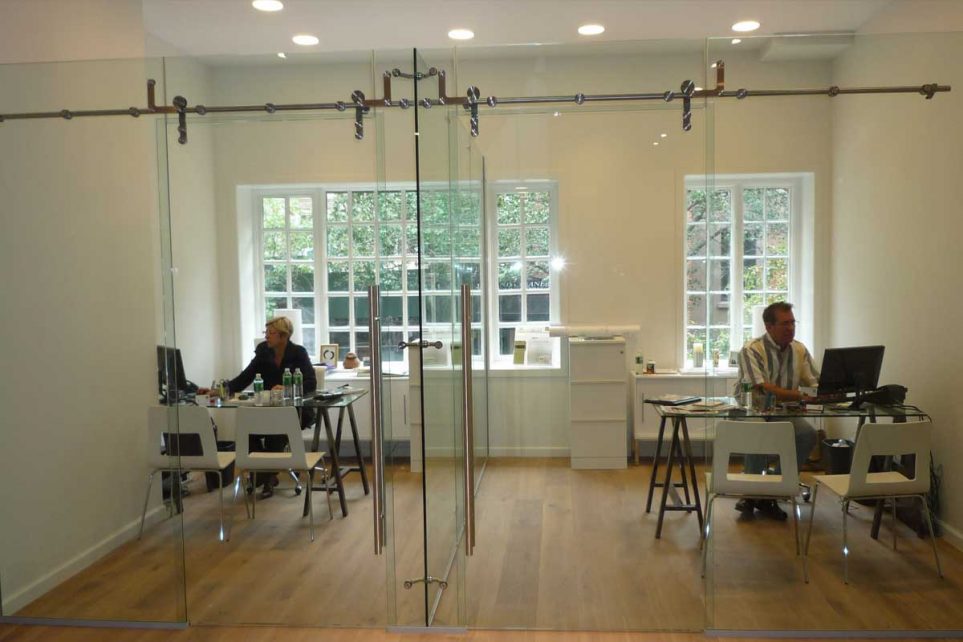

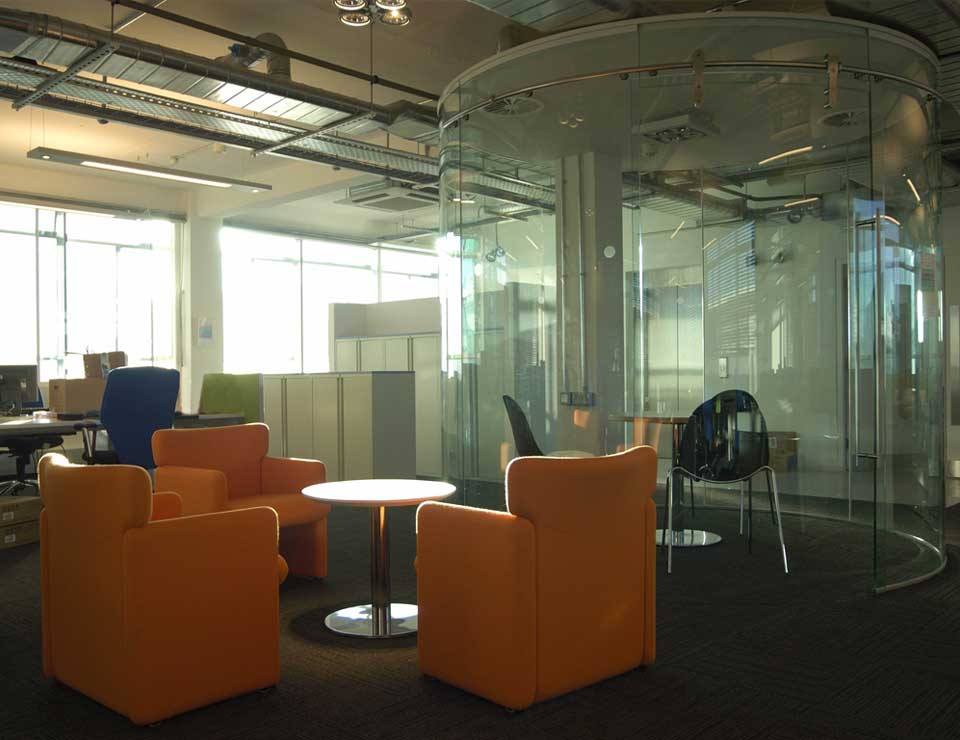

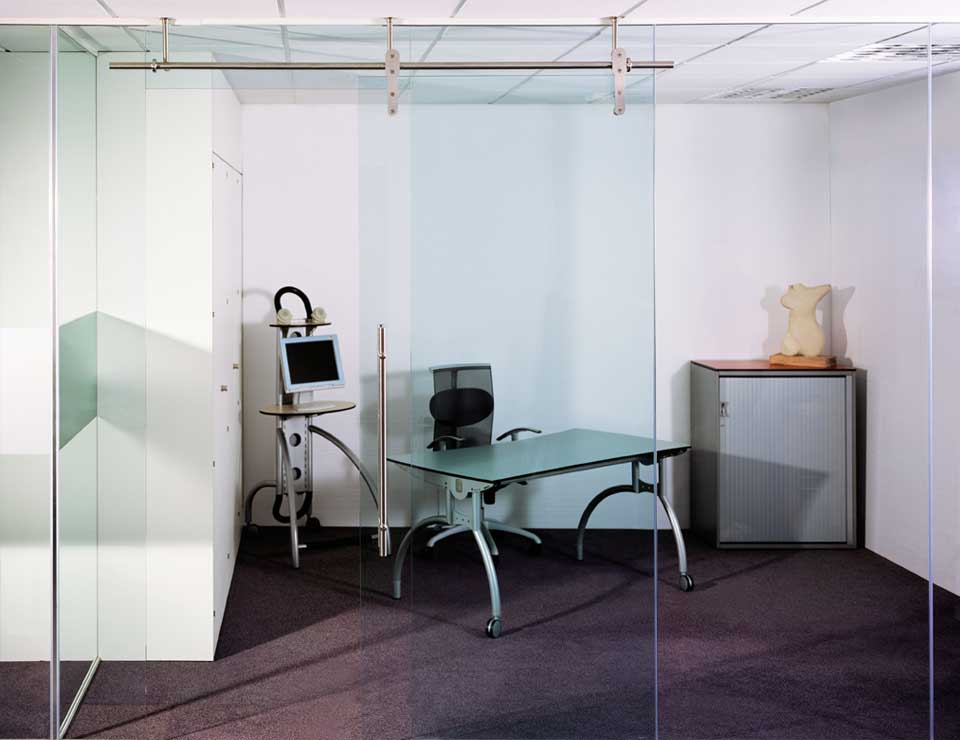

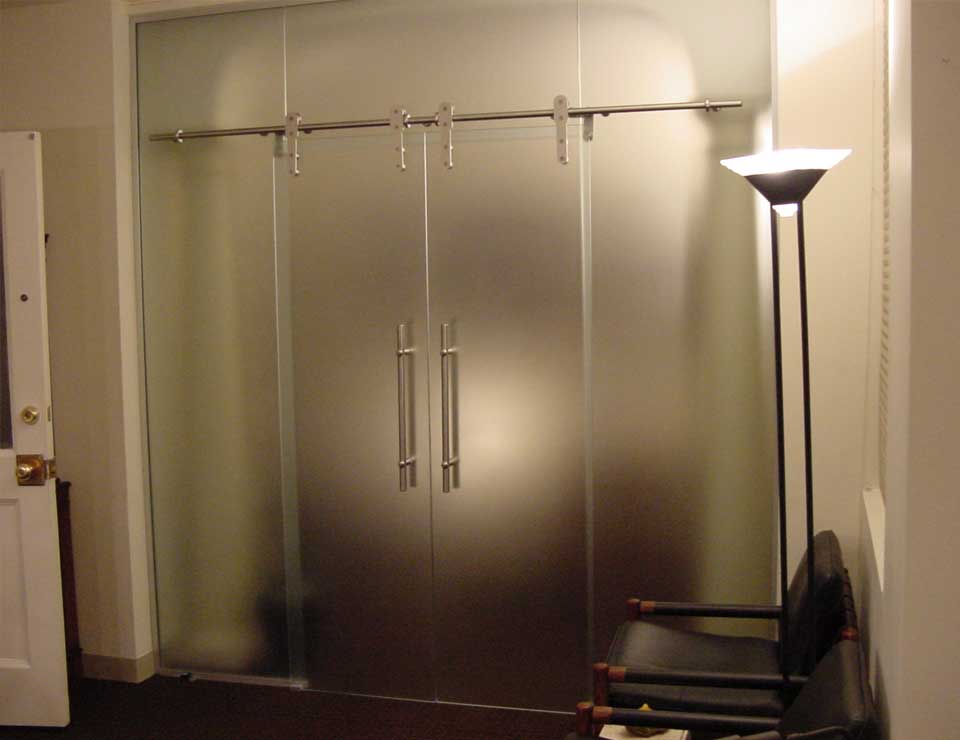

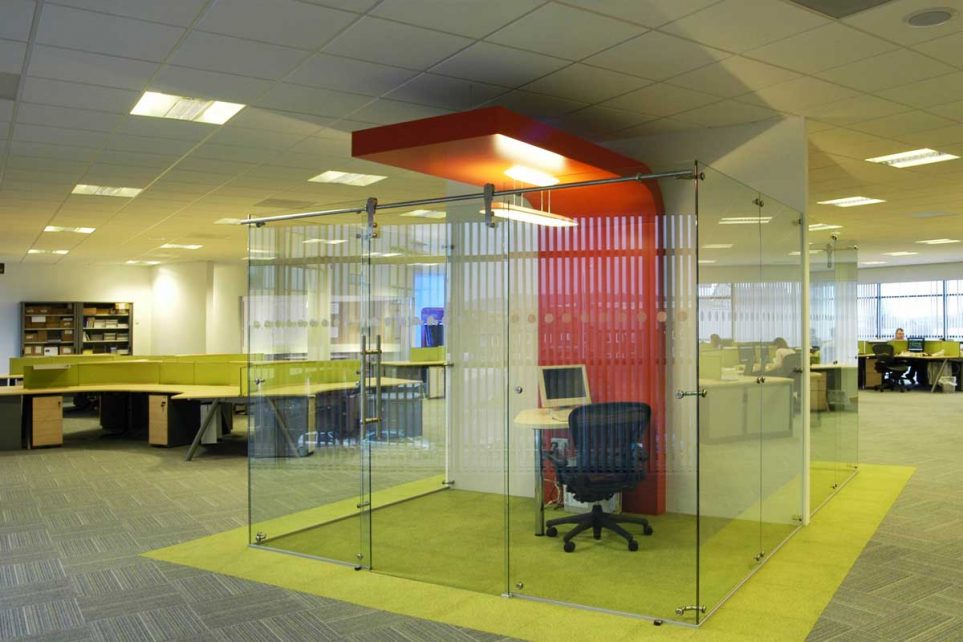

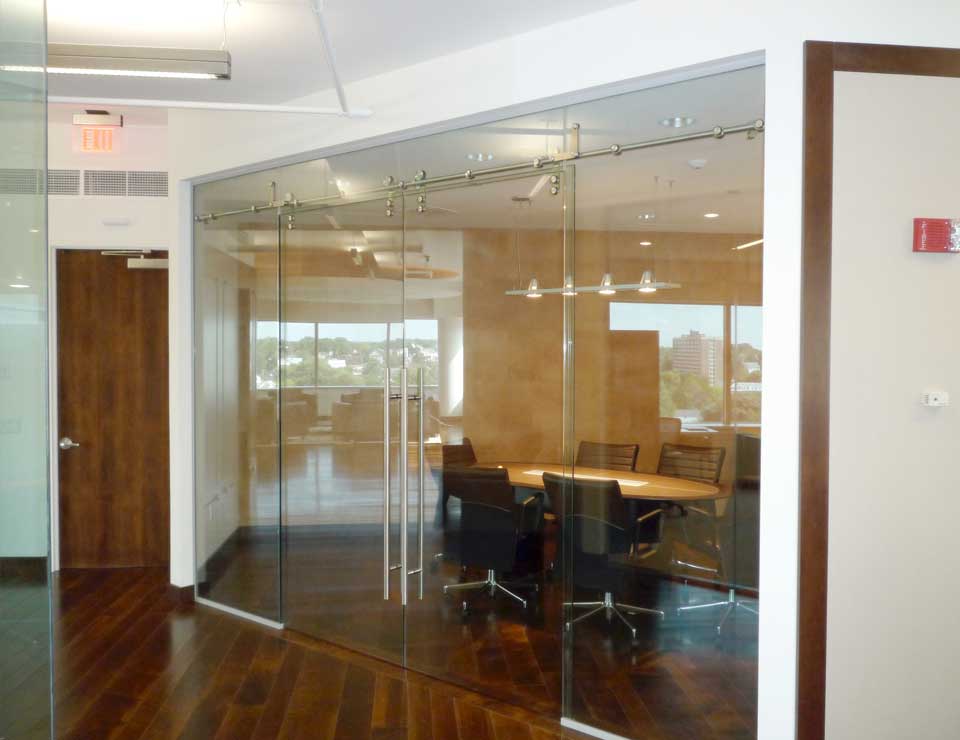

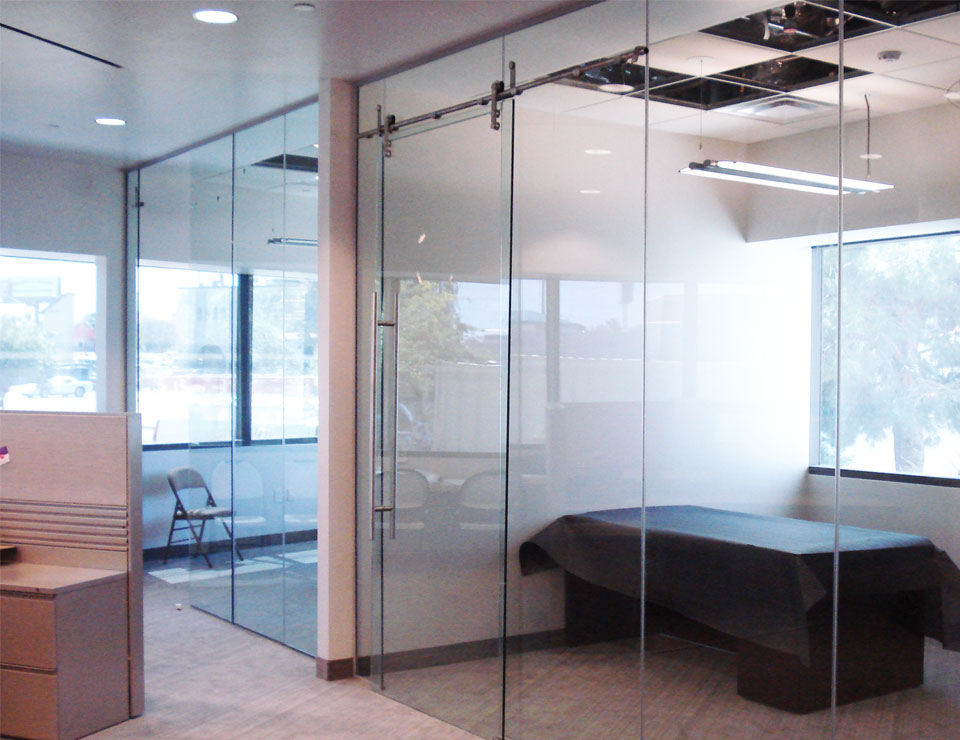

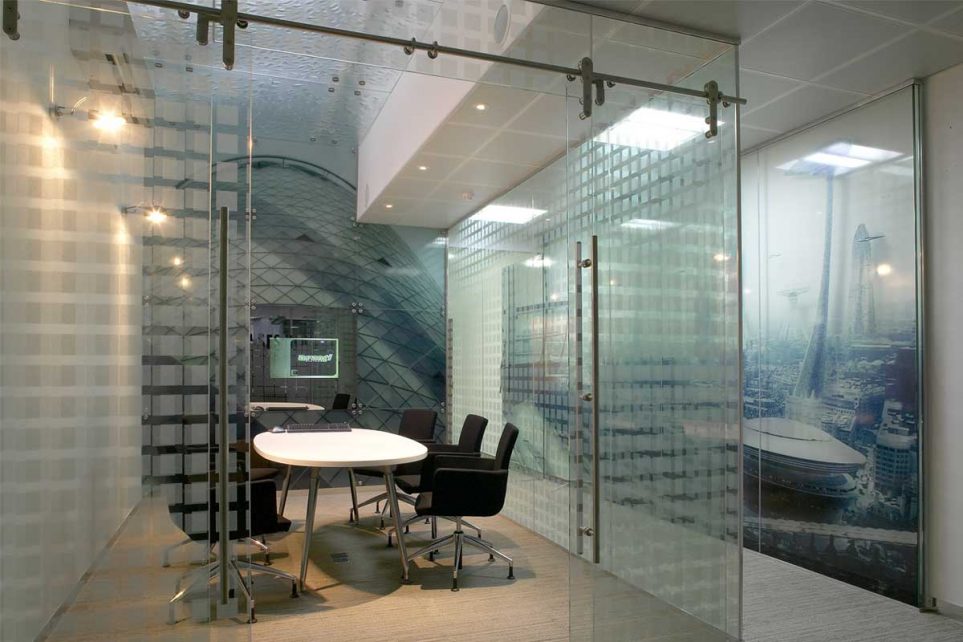

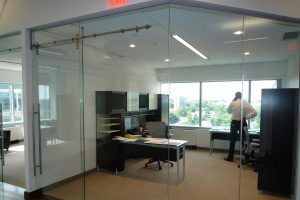

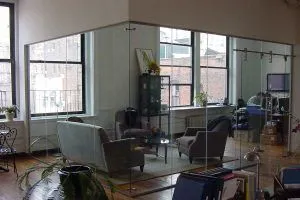

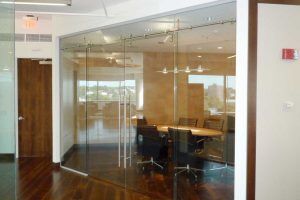

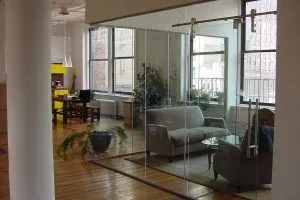

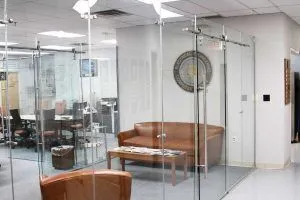

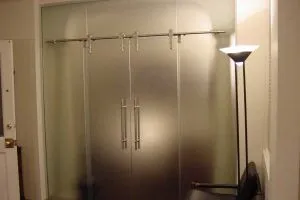

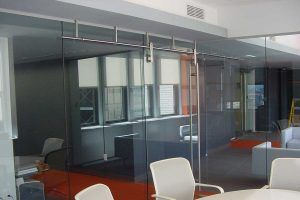

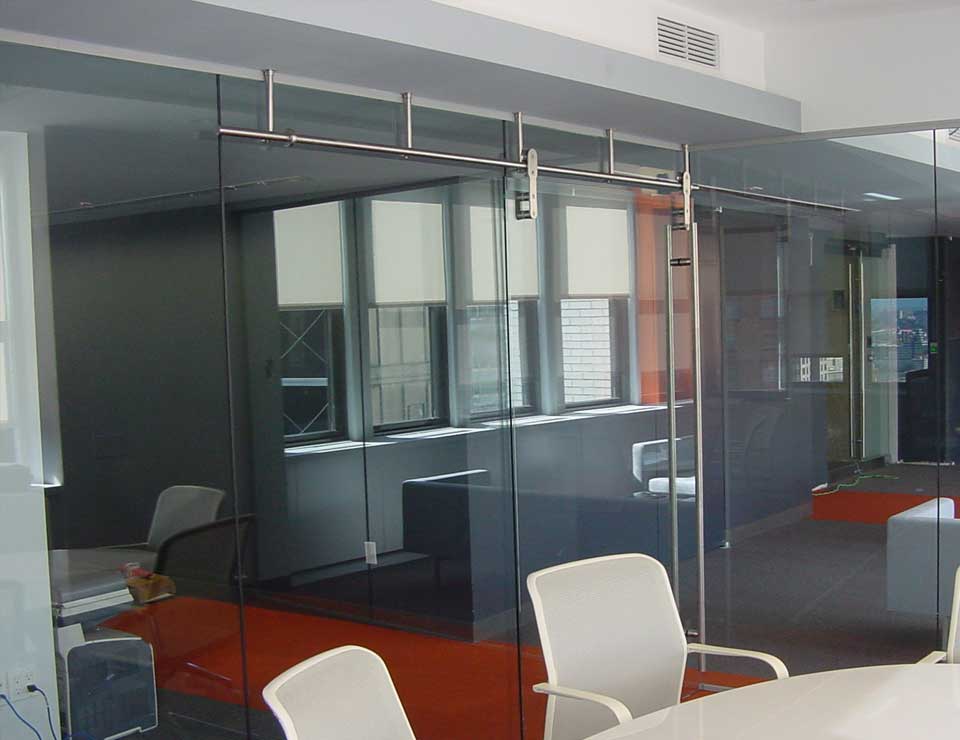

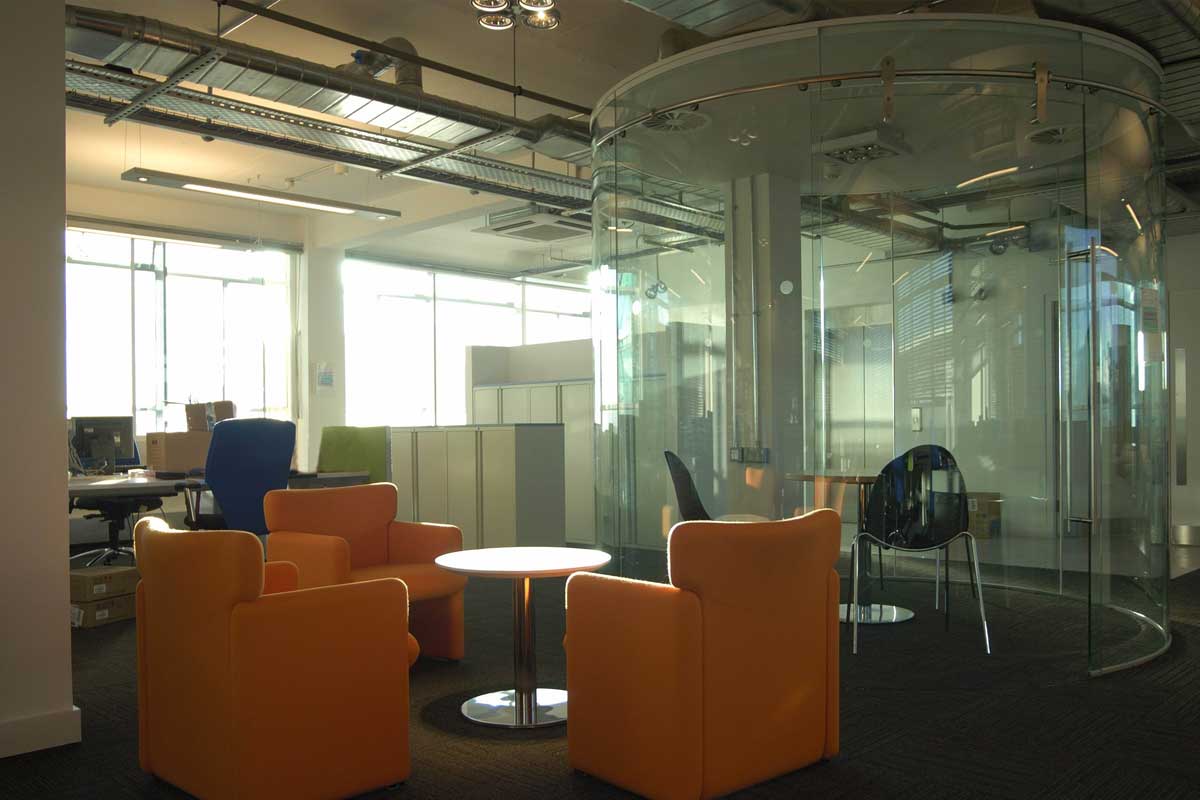

Gallery

Description

The Barn Sliding Glass Door is our standard interior manual sliding glass door which can be integrated into the Solare Frameless, Elite Freestanding Partition System as well as a solid traditional wall to add a touch of modern style to any entryway.

The door accommodates tempered, laminated and low iron glazing, and can be clear or patterned or have a custom graphic. The Barn Sliding Glass Door fits into a straight or curved configuration. A pair of sliding doors is also an option for wider entries. The minimal 5/8” gap between the door and fixed panel reduces the risk of trapping fingers. Locking hardware is available.

The maximum height for the Barn Sliding Glass Door is 12’-0” and maximum panel width is 4’-0”. The components of the sliding door system are of stainless steel which fit over countersunk fasteners.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

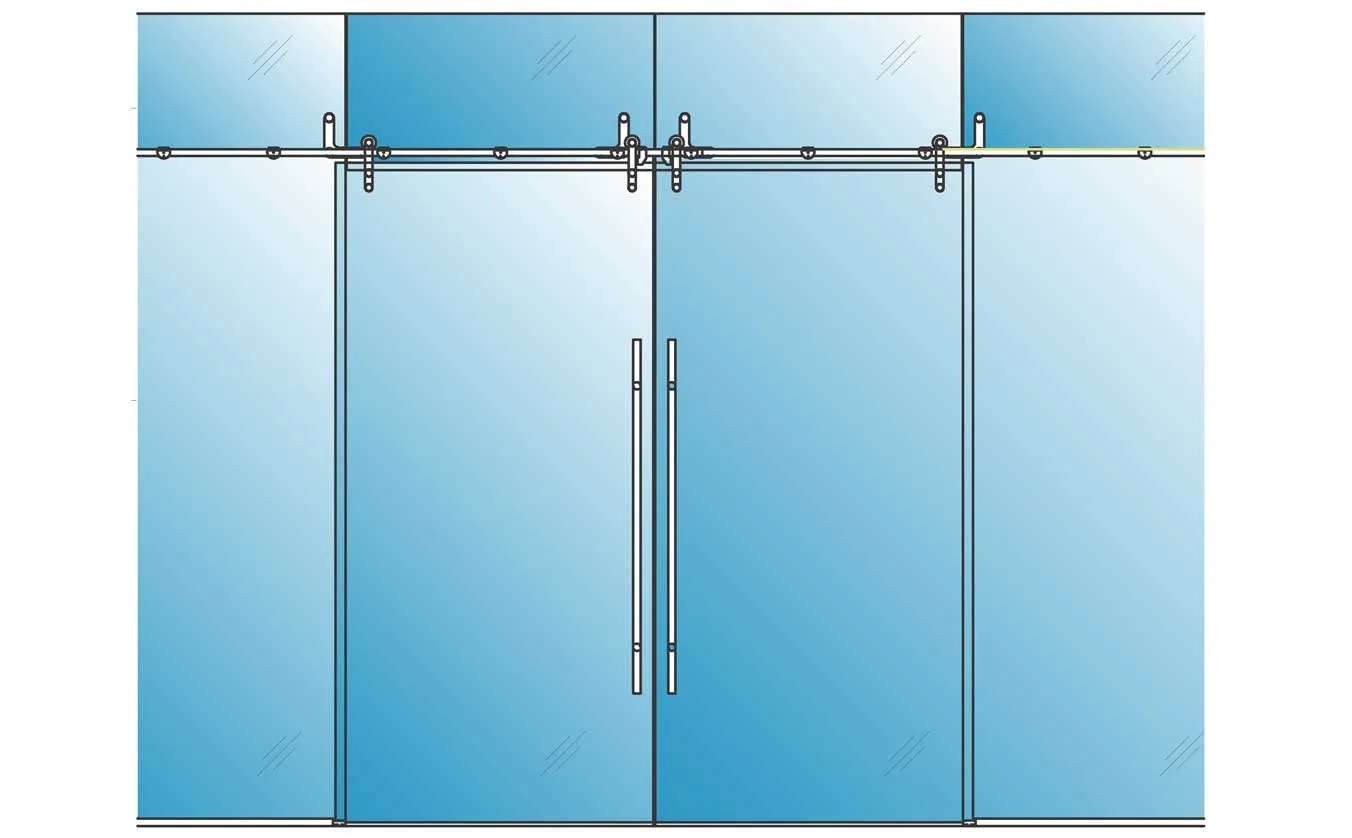

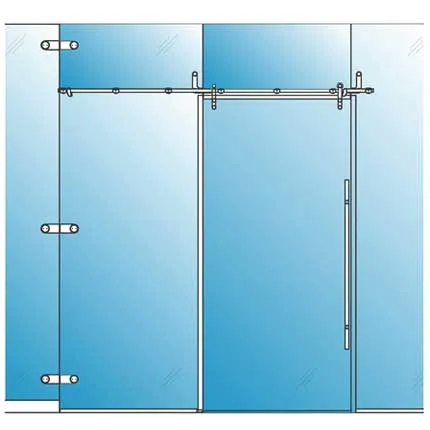

Sliding Barn Glass Door Rail System Elevation
  • Detail 01
    Hinged Framed Swing

    Sliding Glass Barn Door Download Detail: DWG | DXF | PDF
  • Detail 02
    Hinged Framed Swing

    Rail Sliding Glass Door Download Detail: DWG | DXF | PDF
Specifications (3 Part Spec)

Download Individual Specifications:

Download All

The Barn Sliding Glass Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.
Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.


System Integrations

Solare Single Glazed

Solare Single Glazed Pivot Door

Solare Double Glazed

Solare Double Glazed Pivot Glass Door

Elite Freestanding

Elite Freestanding Pivot Door

Lunar LCD Privacy Smart Glass

Lunar LCD Pivot Door
