Elite Freestanding Glass Partition System

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Maximum Glazing Panel Width: 60″
  • Maximum Glazing Panel Height: Full height up to 12′-0″
  • Glazing Available: 3/8″, 7/16″, 1/2″, 9/16″, 3/4″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available

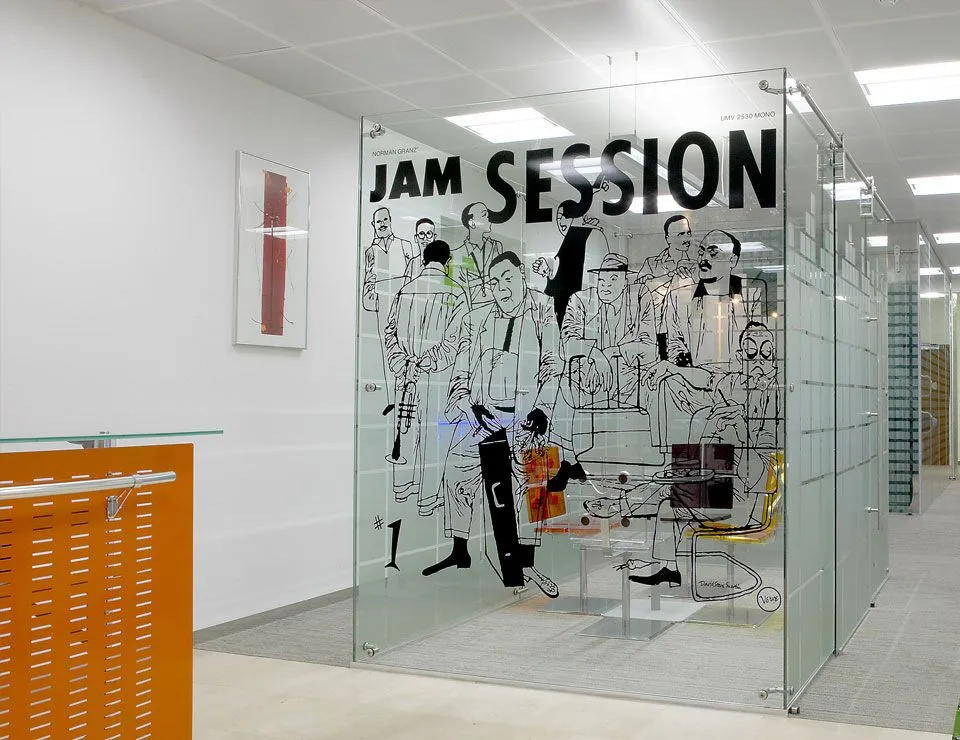

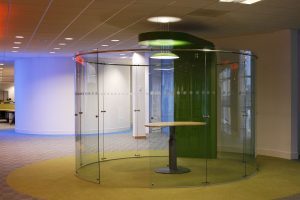

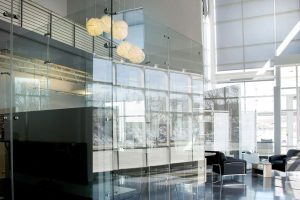

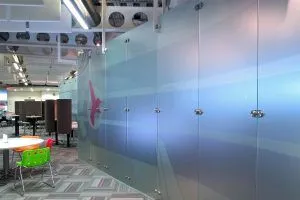

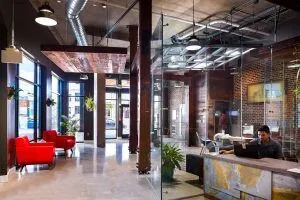

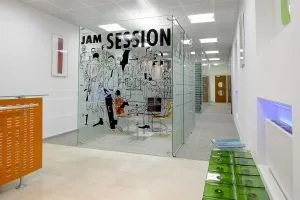

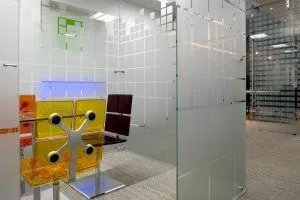

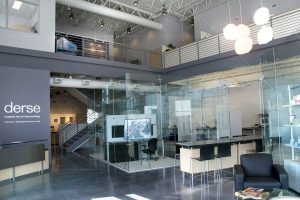

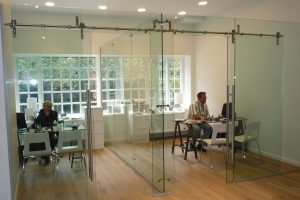

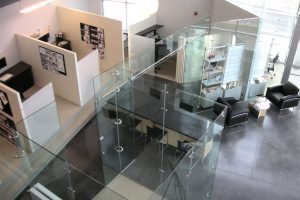

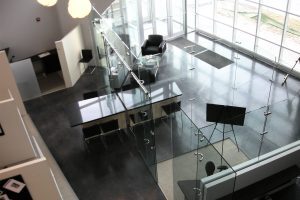

Gallery

Description

The Elite Free Standing Partition System offers the utmost versatility in creating and customizing rooms. The system stands independently in combination with stainless steel components and toughened glass panels. The need for head fixing is not required in most applications, single point wall and floor fixings are all that are needed.

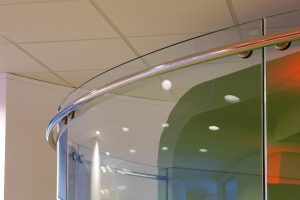

The system accommodates tempered, laminated, low-iron and LCD glazing, and may also be of a straight, angled or curved configuration. LCD, pivot, sliding and hinged doors may be installed. Wood and glass doors (single glazed and double glazed) are all compatible within the free standing system. The fittings may be of a brushed finish, standard RAL color or a custom RAL color.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

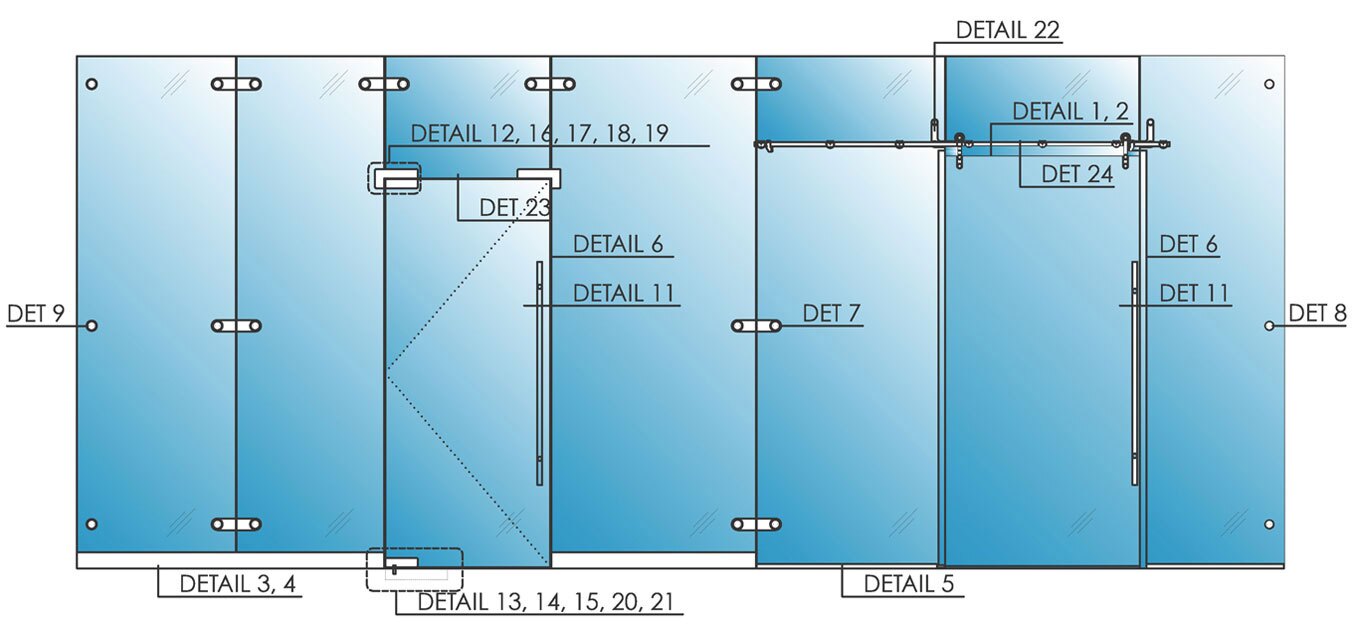

Elite Freestanding Elevation
  • Detail 01
    Sliding Door Track Glass Door

    Sliding Door Track Glass Door Download Detail: DWG | DXF | PDF
  • Detail 02
    Sliding Door Track Wood Door

    Sliding Door Track Wood Door Download Detail: DWG | DXF | PDF
  • Detail 03

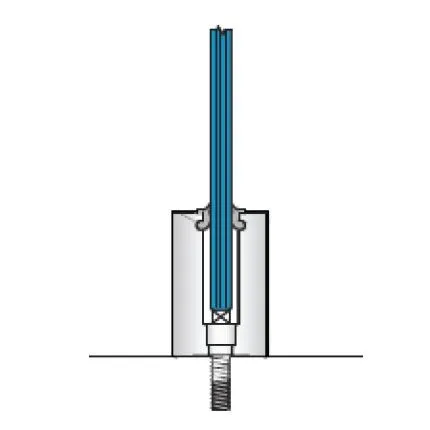

    Free Standing Base Shoe

    Free Standing Base Shoe Download Detail: DWG | DXF | PDF
  • Detail 04
    Free Standing Base Angle

    Free Standing Base Angle Download Detail: DWG | DXF | PDF

  • Detail 05
    Standard Track Base

    Standard Track Base Download Detail: DWG | DXF | PDF
  • Detail 06
    Open End Glazing

    Open End Glazing Download Detail: DWG | DXF | PDF
  • Detail 07
    Straight Joint

    Straight Joint Download Detail: DWG | DXF | PDF
  • Detail 08
    90 Corner

    90 Corner Download Detail: DWG | DXF | PDF

  • Detail 09
    Wall Abutment

    Wall Abutment Download Detail: DWG | DXF | PDF
  • Detail 10
    Fasteners

    Fasteners Download Detail: DWG | DXF | PDF
  • Detail 11
    Door Pull

    Door Pull Download Detail: DWG | DXF | PDF
  • Detail 12
    Top Center Hung Patch Fitting

    Top Center Hung Patch Fitting Download Detail: DWG | DXF | PDF

  • Detail 13

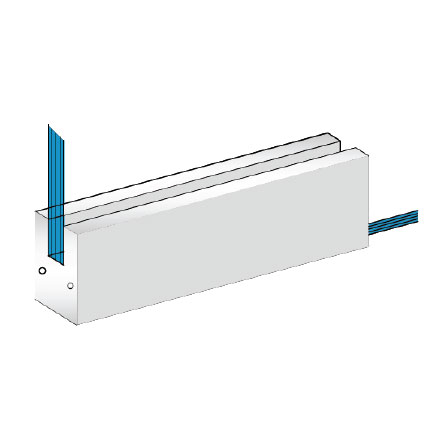

    Bottom Center Hung Patch Fitting

    Bottom Center Hung Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 14
    Pivot Door Bottom Free Swing Pivot

    Pivot Door Bottom Free Swing Pivot Download Detail: DWG | DXF | PDF

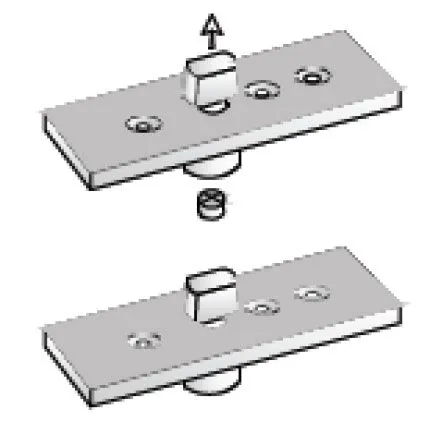

  • Detail 15
    Pivot Door Bottom Free Swing Pivot Option

    Pivot Door Bottom Free Swing Pivot Option Download Detail: DWG | DXF | PDF
  • Detail 16

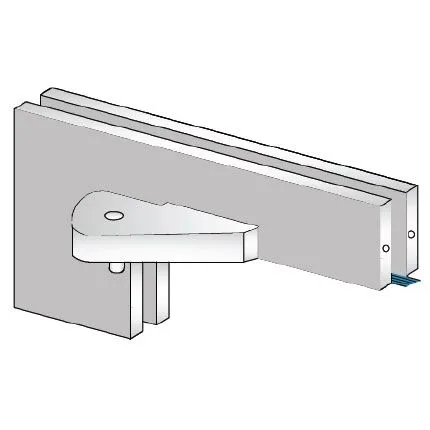

    Transom Offset Patch Fitting

    Transom Offset Patch Fitting Download Detail: DWG | DXF | PDF

  • Detail 17

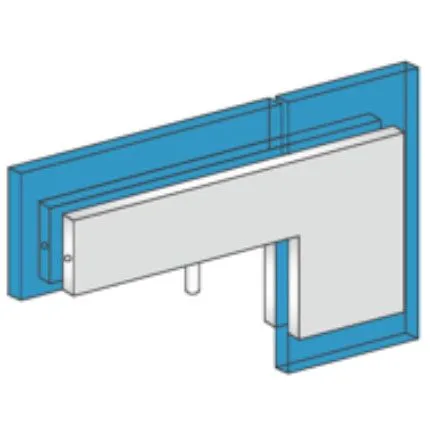

    Transom Patch Fitting With Pivot

    Transom Patch Fitting With Pivot Download Detail: DWG | DXF | PDF
  • Detail 18
    Transom Patch Fitting With Door Stop

    Transom Patch Fitting With Door Stop Download Detail: DWG | DXF | PDF
  • Detail 19
    Top Offset Patch Fitting

    Top Offset Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 20

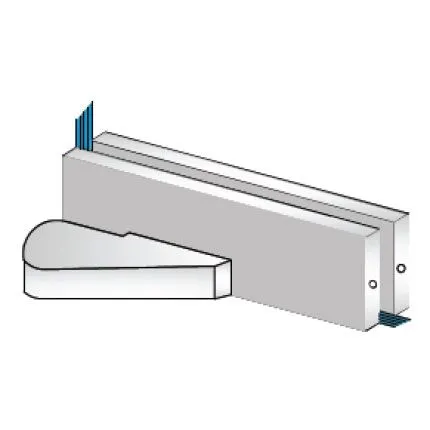

    Bottom Offset Patch Fitting

    Bottom Offset Patch Fitting Download Detail: DWG | DXF | PDF

  • Detail 21
    Floor Recessed Door Closer

    Floor Recessed Door Closer Download Detail: DWG | DXF | PDF
  • Detail 22
    ‘L Bracket’

    'L Bracket' Download Detail: DWG | DXF | PDF
  • Detail 23
    Structural Fin

    Structural Fin Download Detail: DWG | DXF | PDF
  • Detail 24

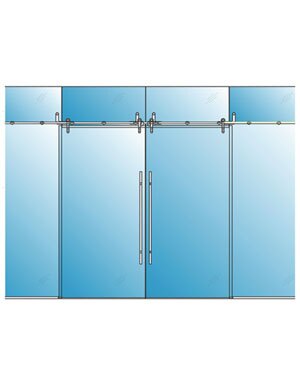

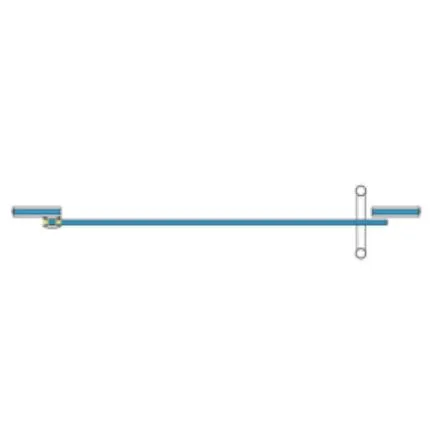

    Barn Sliding Glass Door

    Barn Sliding Glass Door Download Detail: DWG | DXF | PDF

  • Detail 25
    Pivot Frameless Glass Swing Door

    Pivot Frameless Glass Swing Door Download Detail: DWG | DXF | PDF
  • Detail 26
    Timber Swing Door

    Timber Swing Door Download Detail: DWG | DXF | PDF

The Elite Free Standing Partition System is fully demountable. It’s components contain recycled material and are infinitely recyclable.

The System meets LEED Characteristics:
LEED 2009 (v3): MRc3, MRc4, MRc5, EQc8.1 and EQc8.2.

LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.


Door Options

Pivot Glass Door

Pivot Glass Door

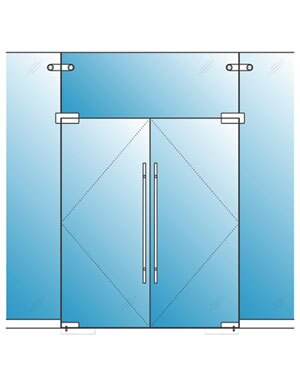

Pivot Glass Door (Pair)

Pivot Glass Door (Pair)

Hinged Glass Doors

Hinged Glass Doors

Standard Sliding Doors

Standard Sliding Doors

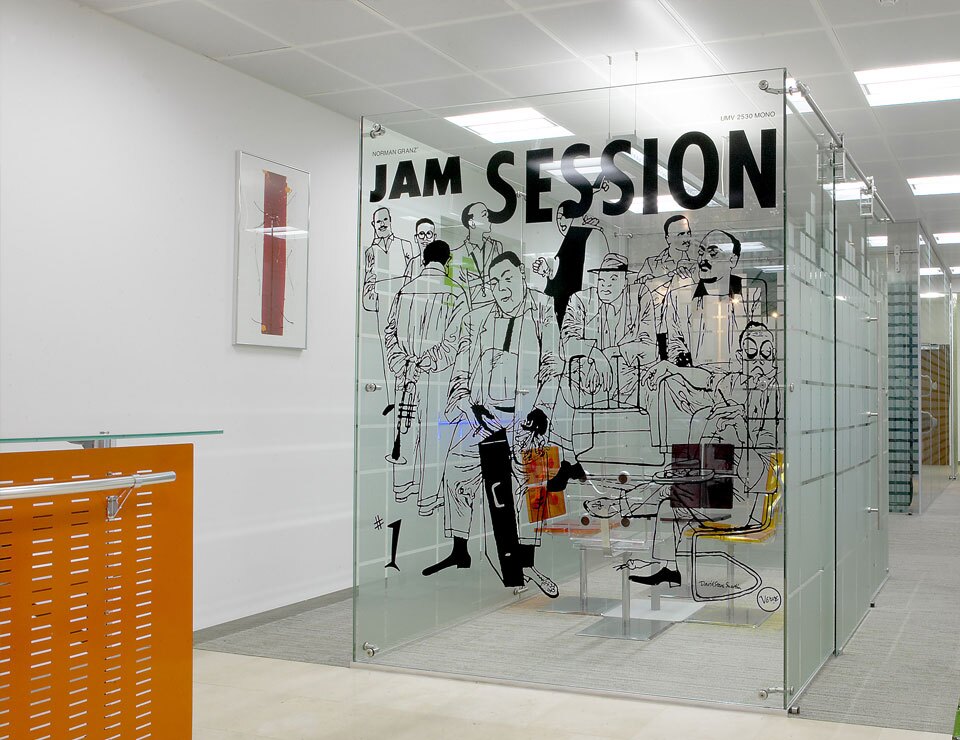

Barn Sliding Doors
