Transverso Monoblock Modular Partition System

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Maximum Glazing Panel Width: 60″
  • Maximum Glazing Panel Height: Full Height up to 16′-0″
  • Glazing Available: Double Glazed 1/4″ Clear tempered or Clear laminated
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Frame Finishes Available: Aluminum Stainless Steel, Polyester powder coated RAL Colors (Jet Black, Silver, Grey & White)
  • Panel Options: Glass, Gypsum Board, Wood Veneer, Laminates, Melamine Facings, & Vynyl
  • STC Rating: 45 (Glass Wall), 47 (Solid Wall)

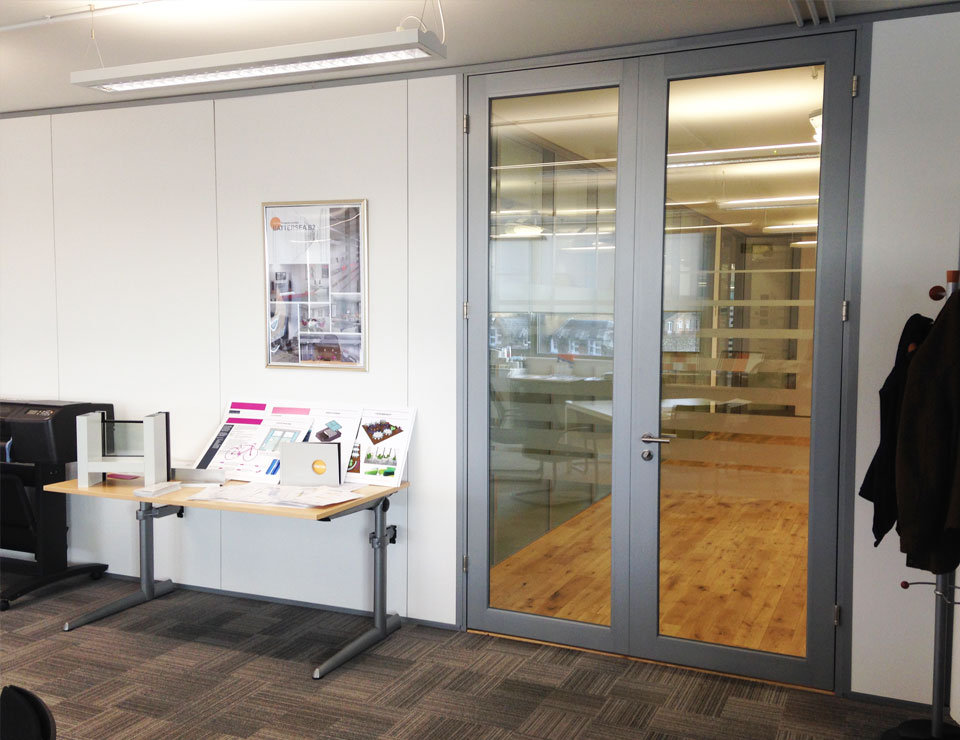

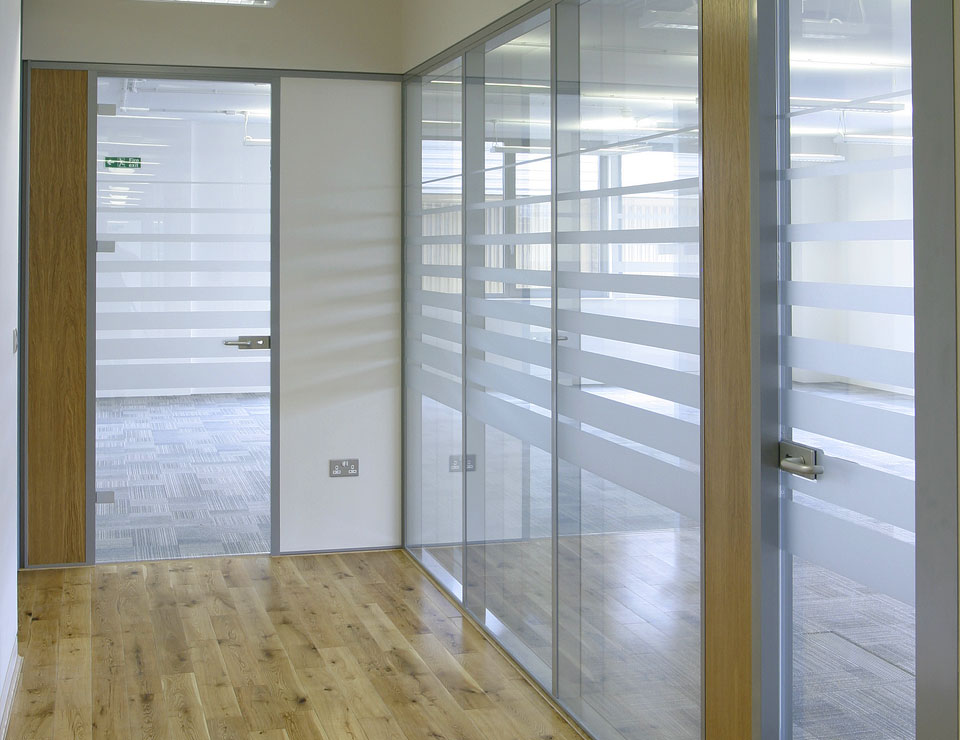

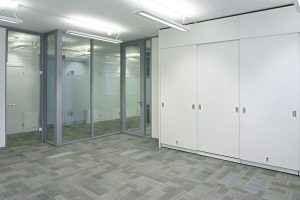

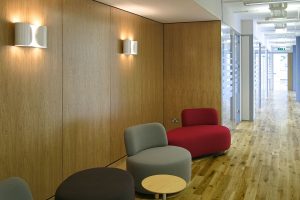

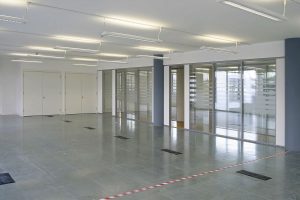

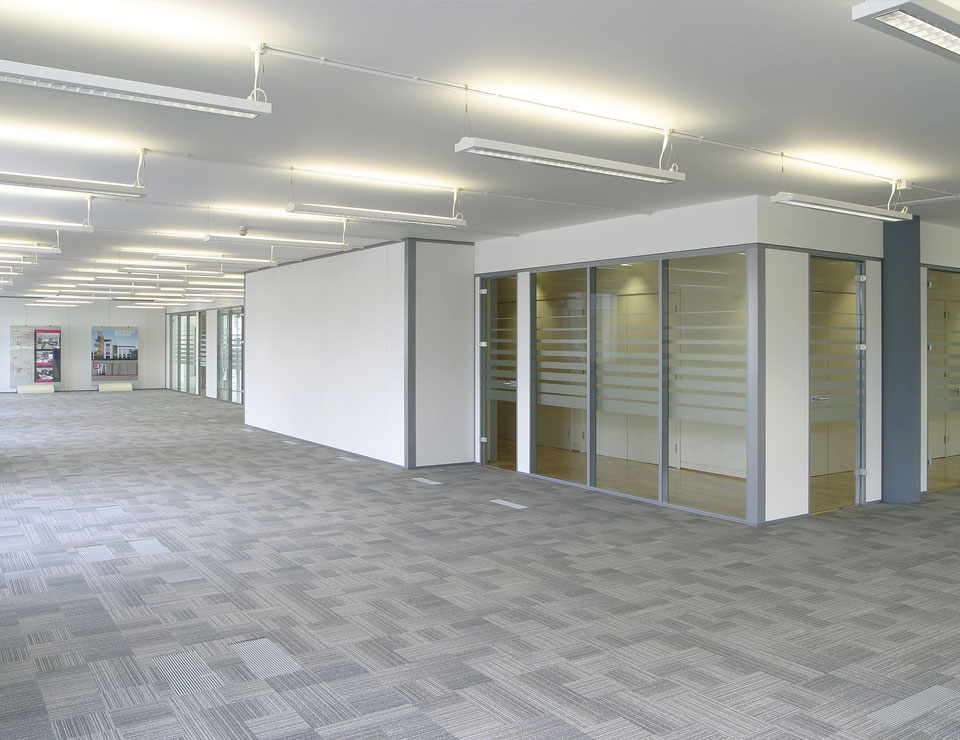

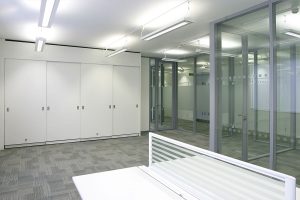

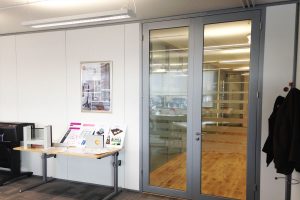

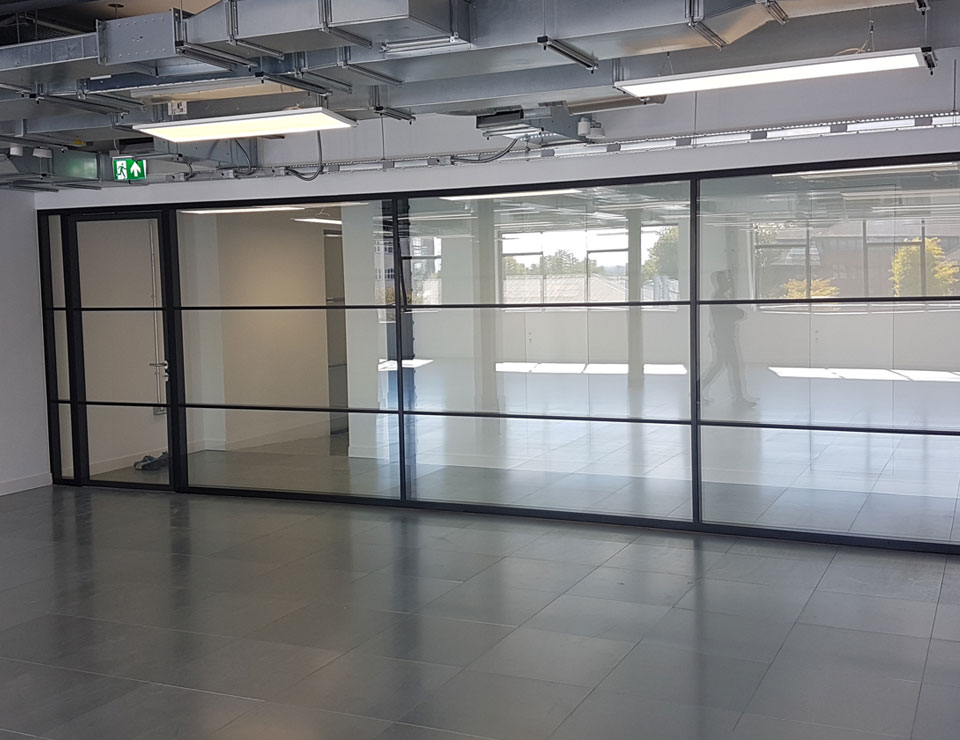

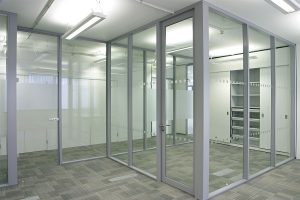

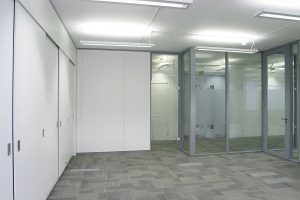

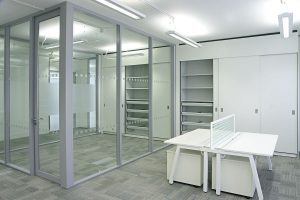

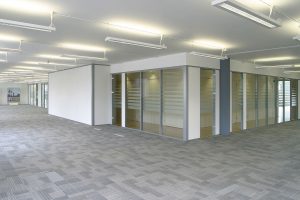

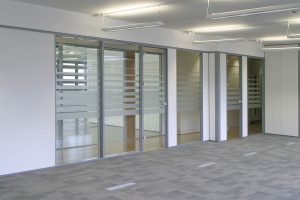

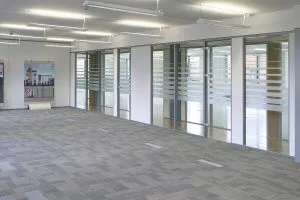

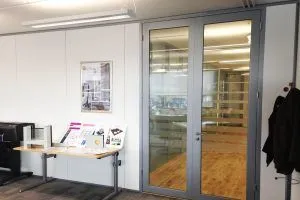

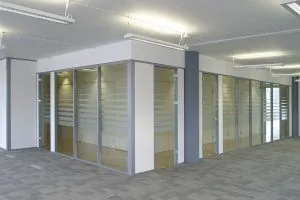

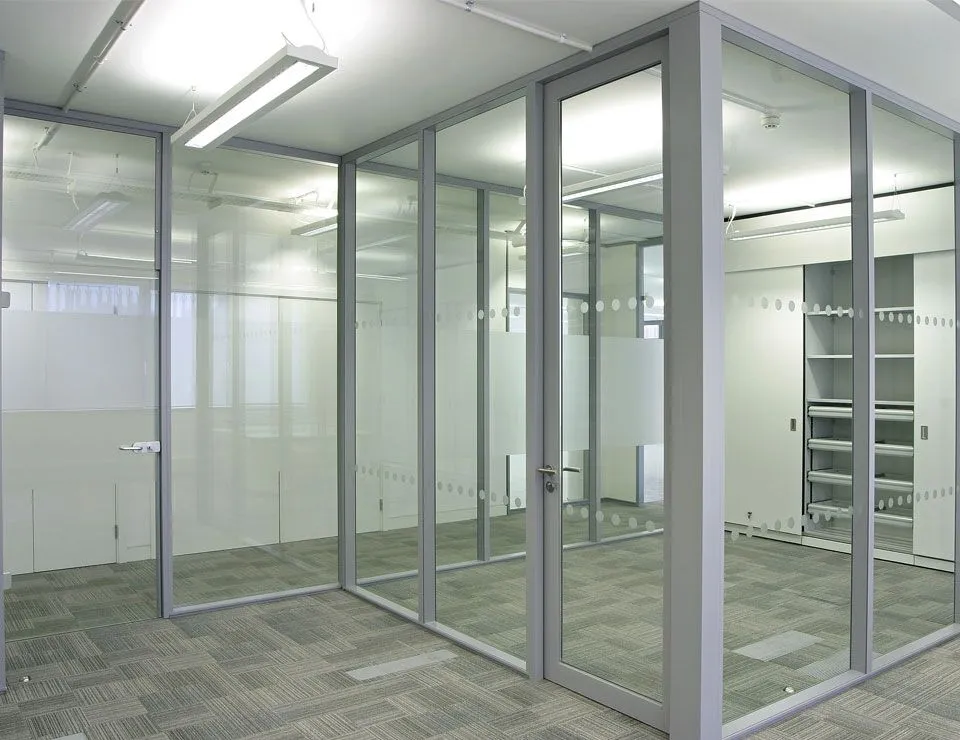

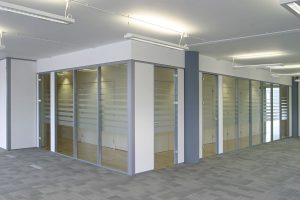

Gallery

Description

The Transverso Monoblock Modular Partition System offers pre-assembled units that quickly go into place and allow you to use your newly created space in record time. The pre-assembled units reduce site labor costs as well as material waste. The system allows the use of gypsum board without the mess of joint compounds and sanding. It also allows for the use of glass, wood, laminates, melamine facings and vinyl.

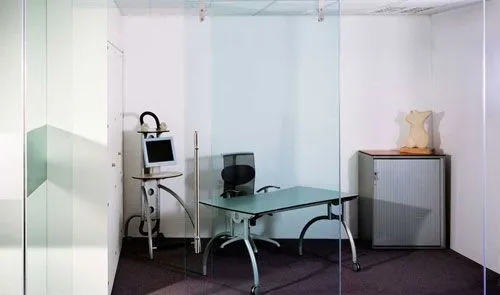

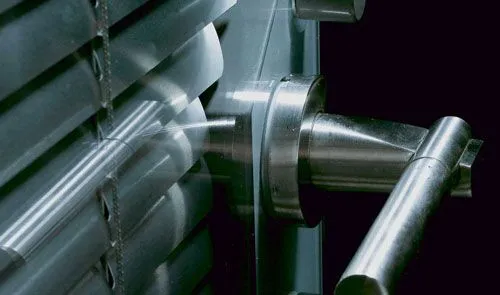

The system accommodates tempered, laminated, low iron and LCD glazing, and may also be of a straight, angled or curved configuration. LCD, pivot, sliding and hinged doors may be installed. Wood and glass doors (single glazed and double glazed) are all compatible within the free standing system. The fittings may be of an aluminum finish, standard RAL color (Jet Black, Silver, Grey or White) or a custom RAL color.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

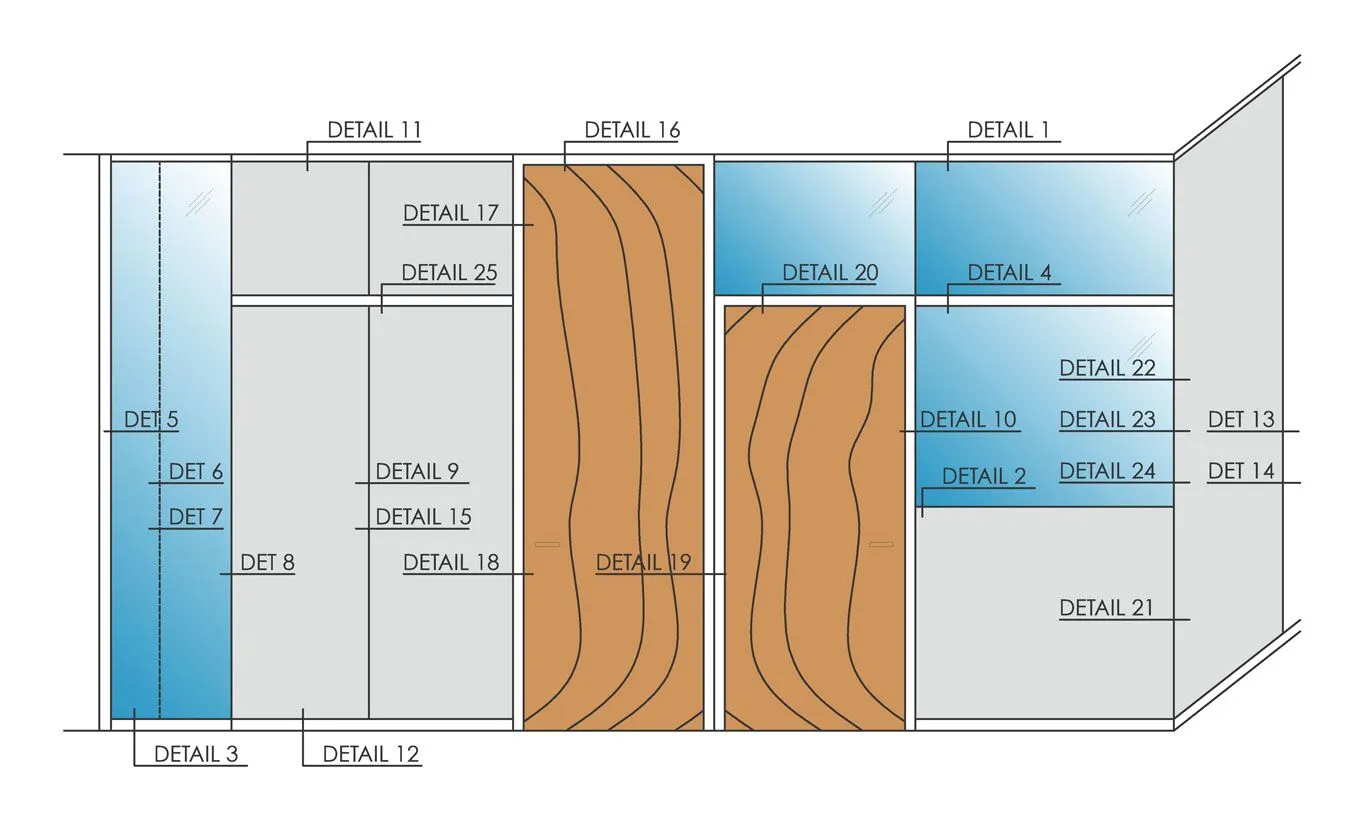

Transverso Modular Monoblock Elevation

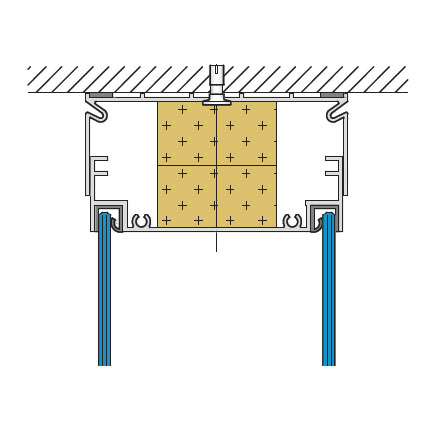

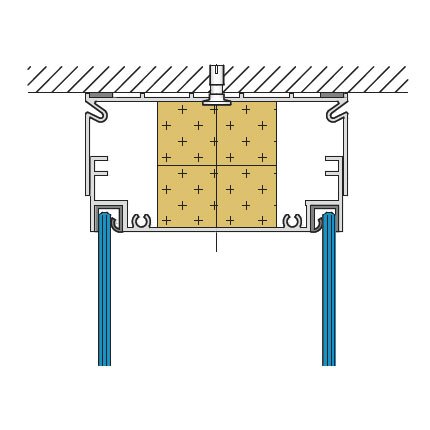

  • Detail 01

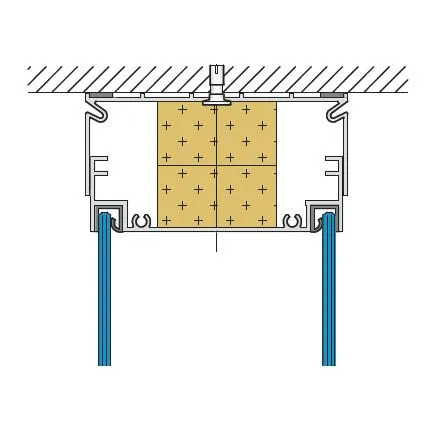

    Glazing Partition Head

    Glazing Partition Head Download Detail: DWG | DXF | PDF

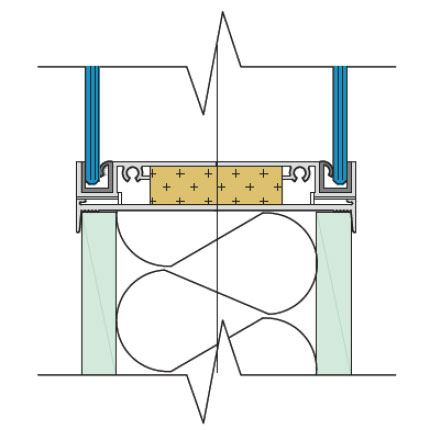

  • Detail 02
    Glazing Partition Sill

    Glazing Partition  Sill Download Detail: DWG | DXF | PDF

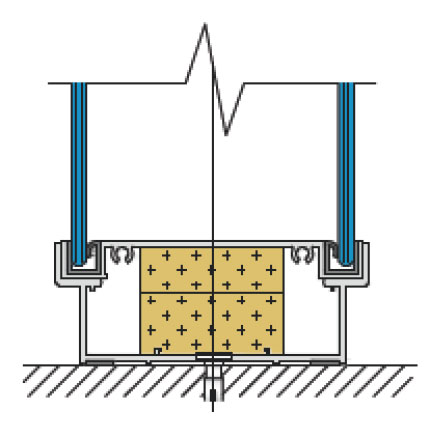

  • Detail 03
    Glazing Partition Base At Floor

    Glazing Partition Base At Floor Download Detail: DWG | DXF | PDF

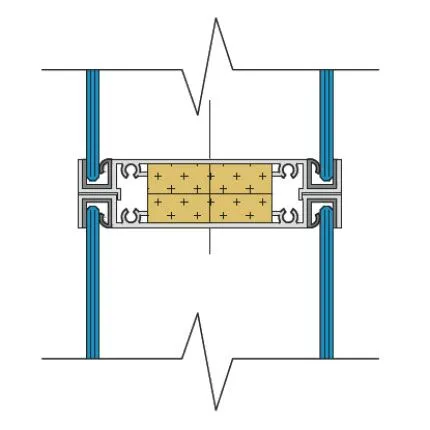

  • Detail 04
    Glazing Partition Mullion

    Glazing Partition Mullion Download Detail: DWG | DXF | PDF

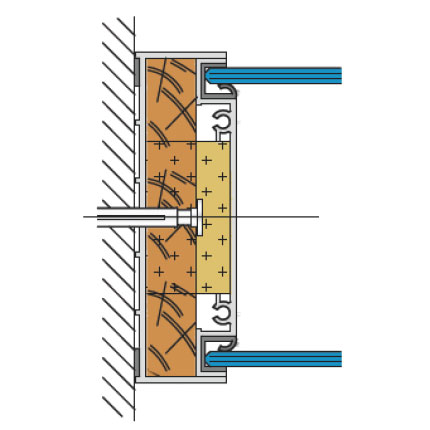

  • Detail 05
    Glazing Partition Jamb

    Glazing Partition Jamb Download Detail: DWG | DXF | PDF

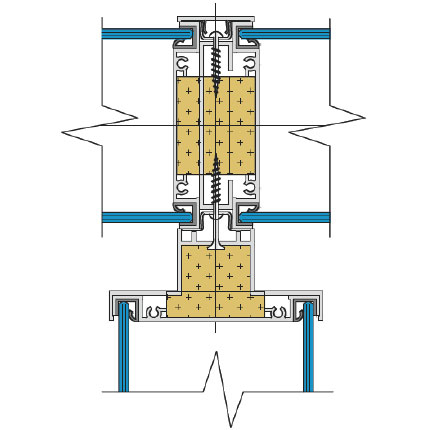

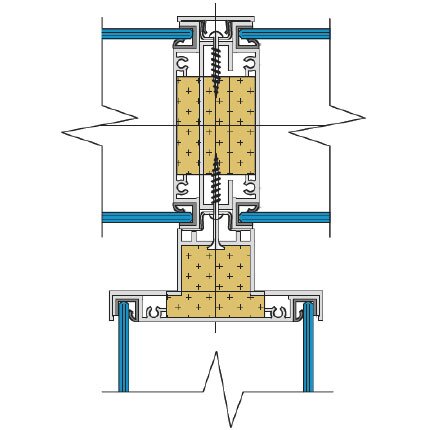

  • Detail 06

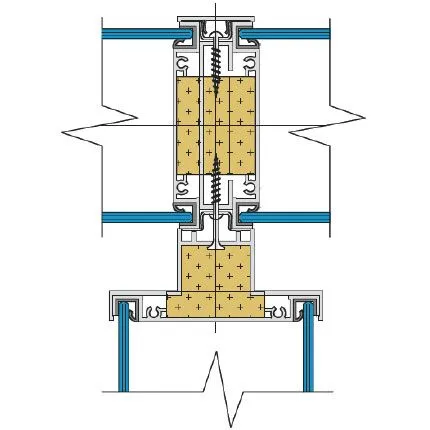

    Glazing Partition ‘T’ Connection

    Glazing Partition 'T' Connection Download Detail: DWG | DXF | PDF

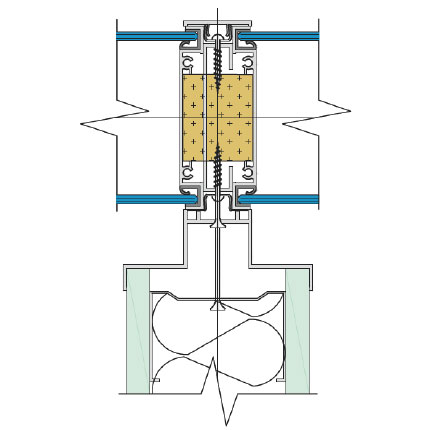

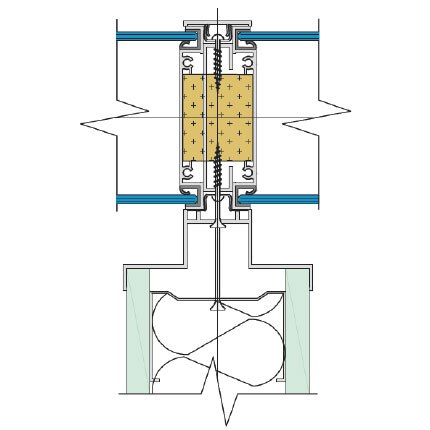

  • Detail 07

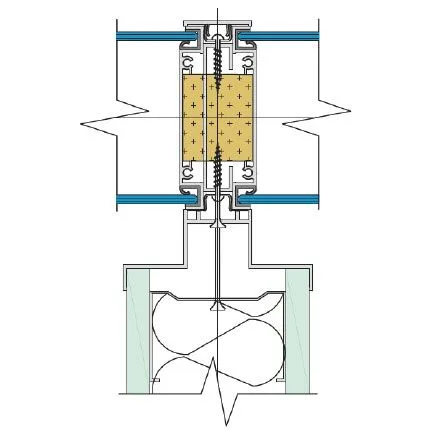

    Glazing Partition To Solid Partition ‘T’ Connection

    Glazing Partition To Solid Partition 'T' Connection Download Detail: DWG | DXF | PDF

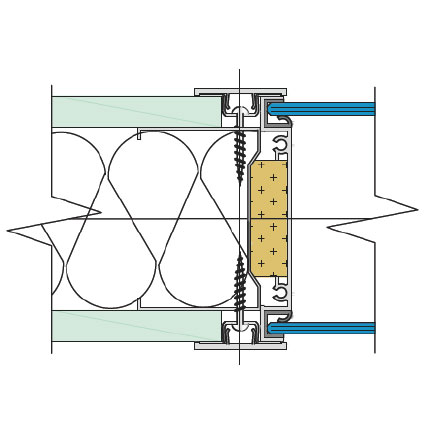

  • Detail 08
    Glazing Partition To Solid Partition Straight Joint

    Glazing Partition To Solid Partition Straight Joint Download Detail: DWG | DXF | PDF

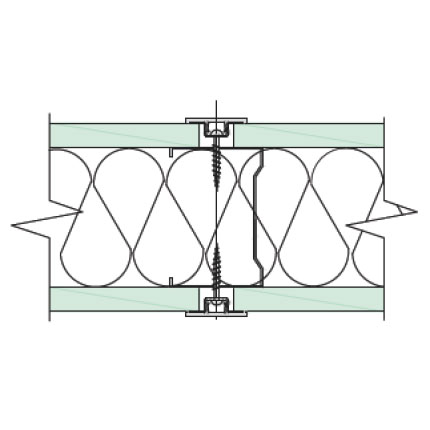

  • Detail 09
    Solid Partition Straight Joint Horizontal

    Solid Partition Straight Joint Horizontal Download Detail: DWG | DXF | PDF

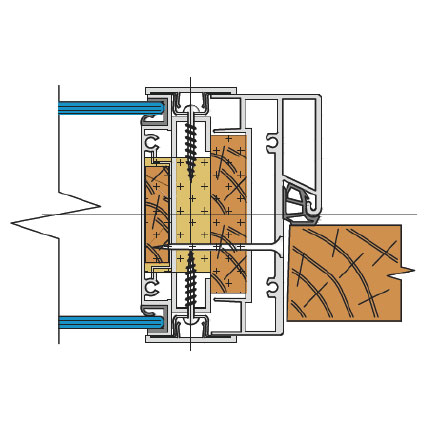

  • Detail 10
    Glazing Partition Door Frame

    Glazing Partition Door Frame Download Detail: DWG | DXF | PDF

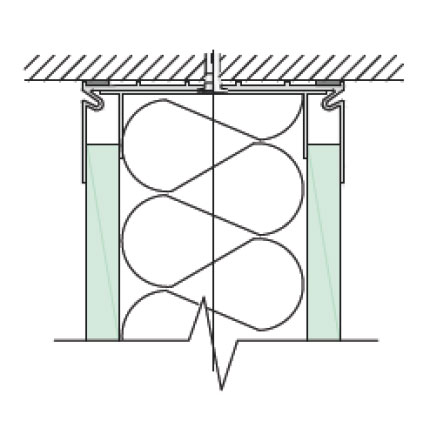

  • Detail 11

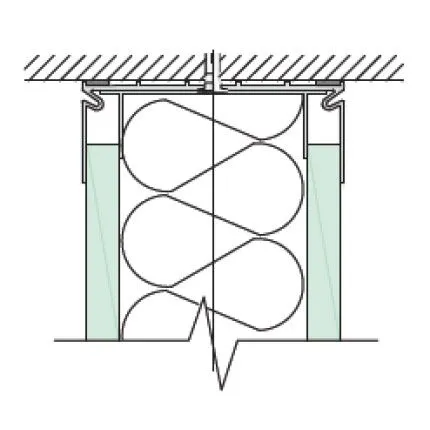

    Solid Partition Head

    Solid Partition Head Download Detail: DWG | DXF | PDF

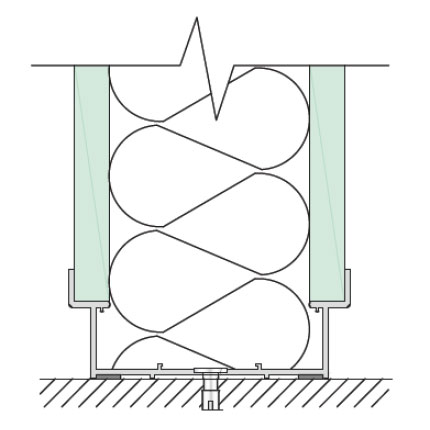

  • Detail 12
    Solid Partition Base At Floor

    Solid Partition Base At Floor Download Detail: DWG | DXF | PDF

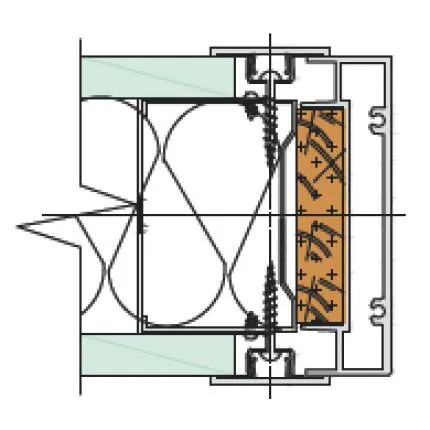

  • Detail 13
    Solid Partition Open End Framing

    Solid Partition Open End Framing Download Detail: DWG | DXF | PDF

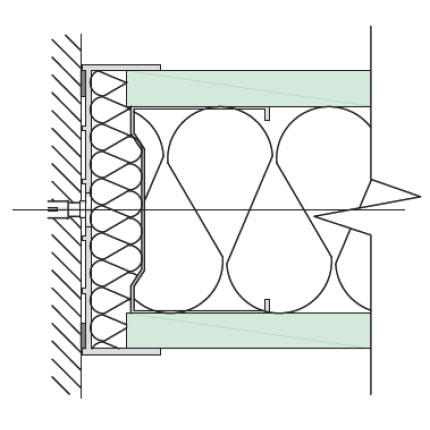

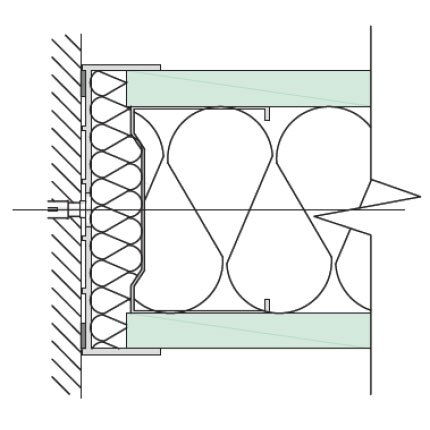

  • Detail 14
    Solid Partition Jamb

    Solid Partition Jamb Download Detail: DWG | DXF | PDF
  • Detail 15

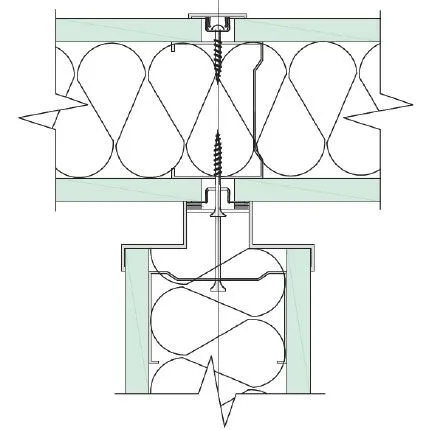

    Solid Partition ‘T’ Connection

    Solid Partition 'T' Connection Download Detail: DWG | DXF | PDF
  • Detail 16

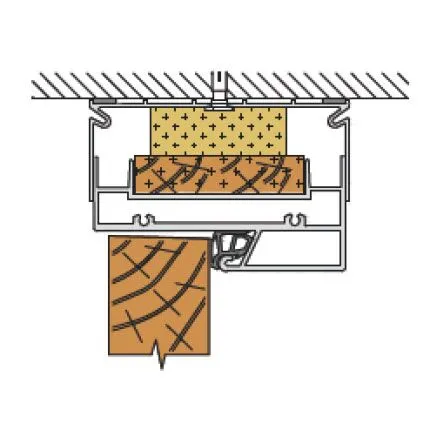

    Door Frame Head

    Door Frame Head Download Detail: DWG | DXF | PDF

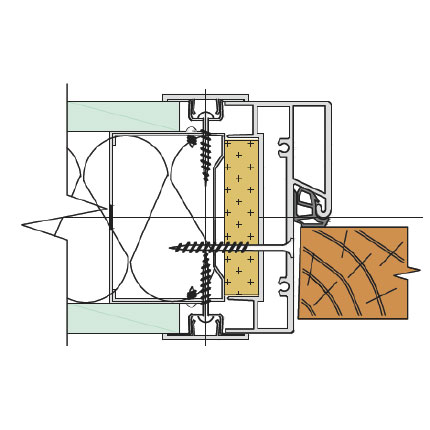

  • Detail 17
    Solid Partition Door Frame

    Solid Partition Door Frame Download Detail: DWG | DXF | PDF

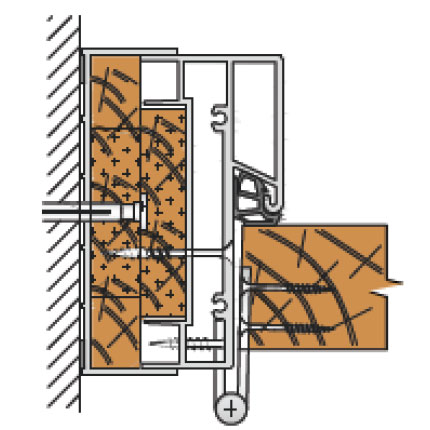

  • Detail 18
    Door Frame Jamb At Wall

    Door Frame Jamb At Wall Download Detail: DWG | DXF | PDF

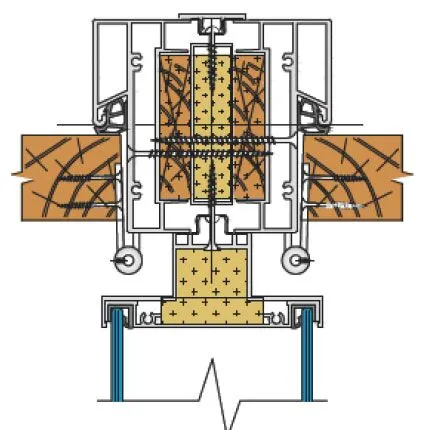

  • Detail 19
    ‘T’ Connection At 2 Ddoor Jambs

    'T' Connection At 2 Ddoor Jambs Download Detail: DWG | DXF | PDF

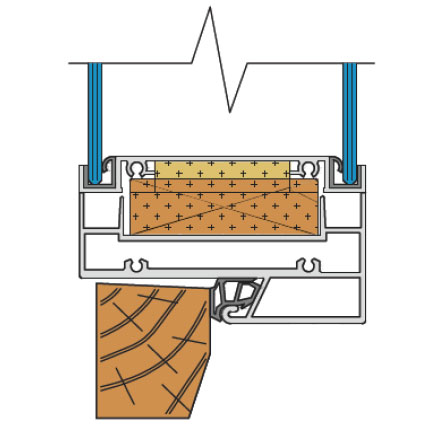

  • Detail 20
    Door Frame Transom

    Door Frame Transom Download Detail: DWG | DXF | PDF

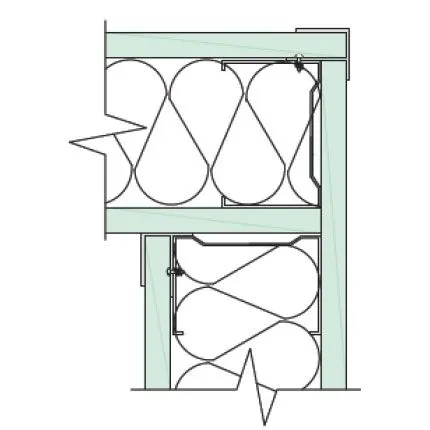

  • Detail 21
    Solid Partition 90 Corner

    Solid Partition 90 Corner Download Detail: DWG | DXF | PDF

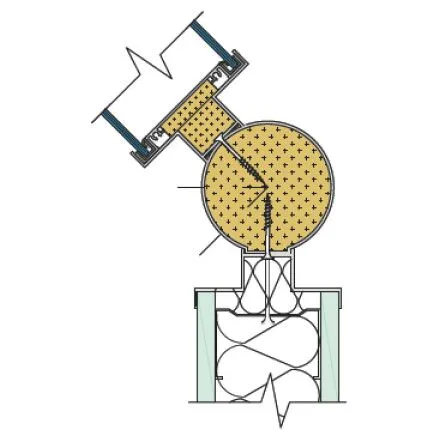

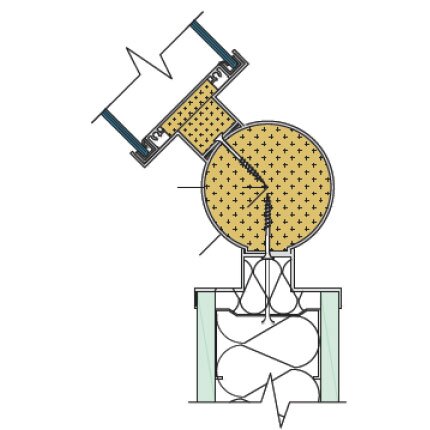

  • Detail 22
    Round Column Joint Detail

    Round Column Joint Detail Download Detail: DWG | DXF | PDF

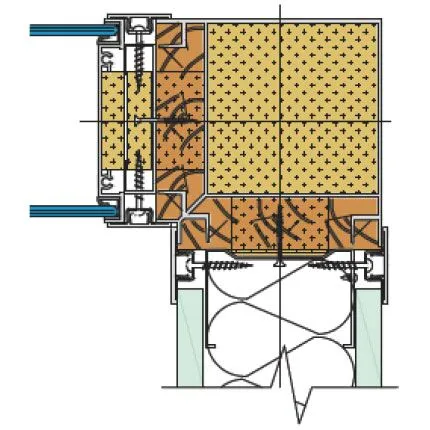

  • Detail 23
    Solid Partition To Glazing Partition 90 Corner

    Solid Partition To Glazing Partition 90 Corner Download Detail: DWG | DXF | PDF

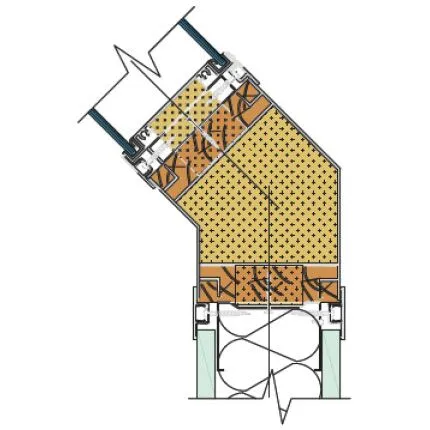

  • Detail 24
    Glazing Partition To Solid Partition 135 Corner

    Glazing Partition To Solid Partition 135 Corner Download Detail: DWG | DXF | PDF

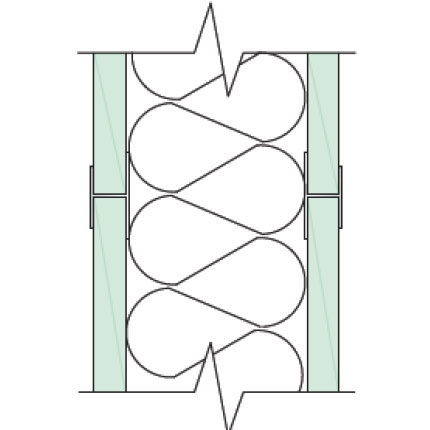

  • Detail 25

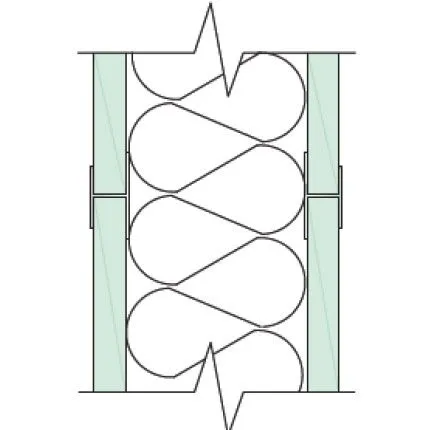

    Solid Partition Straight Joint Vertical

    Solid Partition Straight Joint Vertical Download Detail: DWG | DXF | PDF

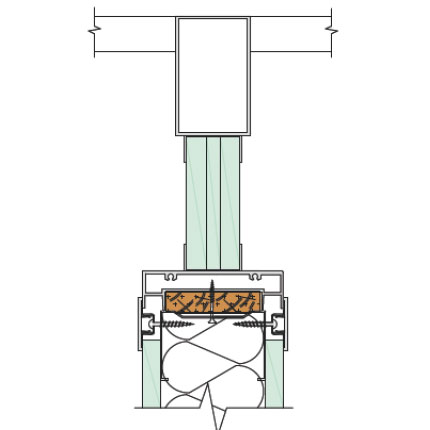

  • Detail 26
    Solid Partition Connection At Window

    Solid Partition Connection At Window Download Detail: DWG | DXF | PDF

The Transverso Modular Monoblock Partition System is fully demountable. It’s components contain recycled material and are infinitely recyclable.

The System meets LEED Characteristics:
LEED 2009 (v3): MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.

LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.
