Cloud Assisted Close Premium Sliding Glass Door

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Highlights: Patented Comfort Stop, Auto Close And Exact Trigger Technologies, Minimal Maintenance, Wall And Soffit Face Mount, Fixed Panel Integration Within One Track, Polycarbonate Internal Parts, Custom Assemblies Available Upon Request
  • Glazing Available: 3/8″, 1/2″, & 9/16″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available

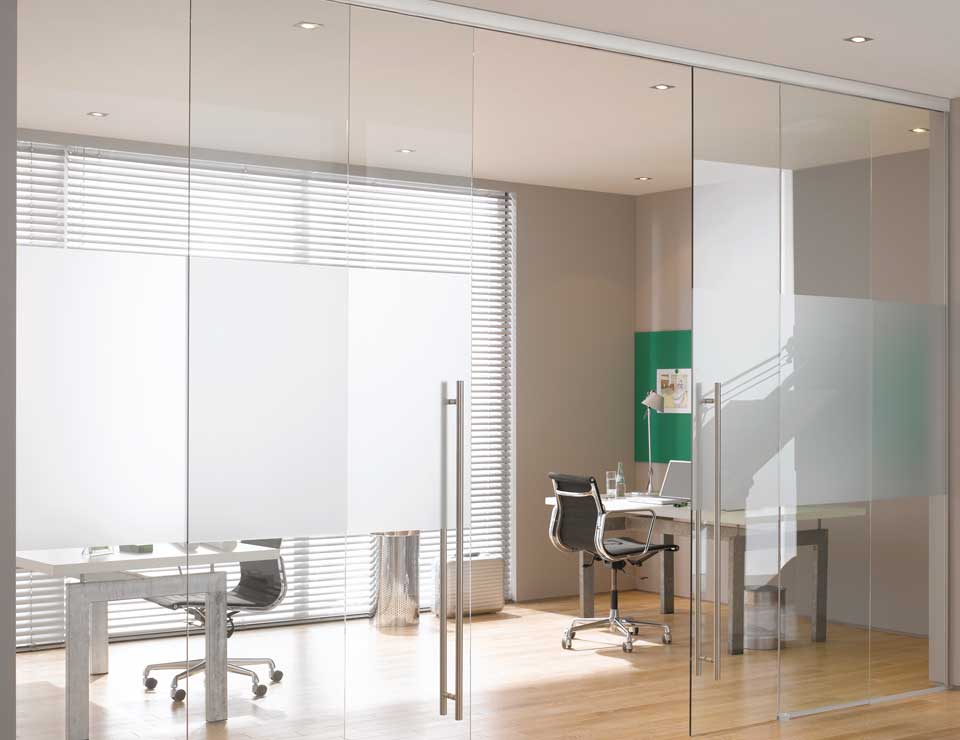

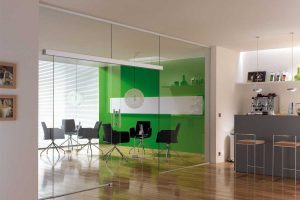

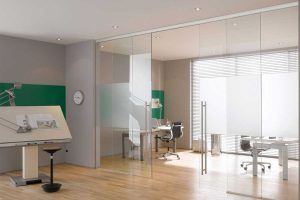

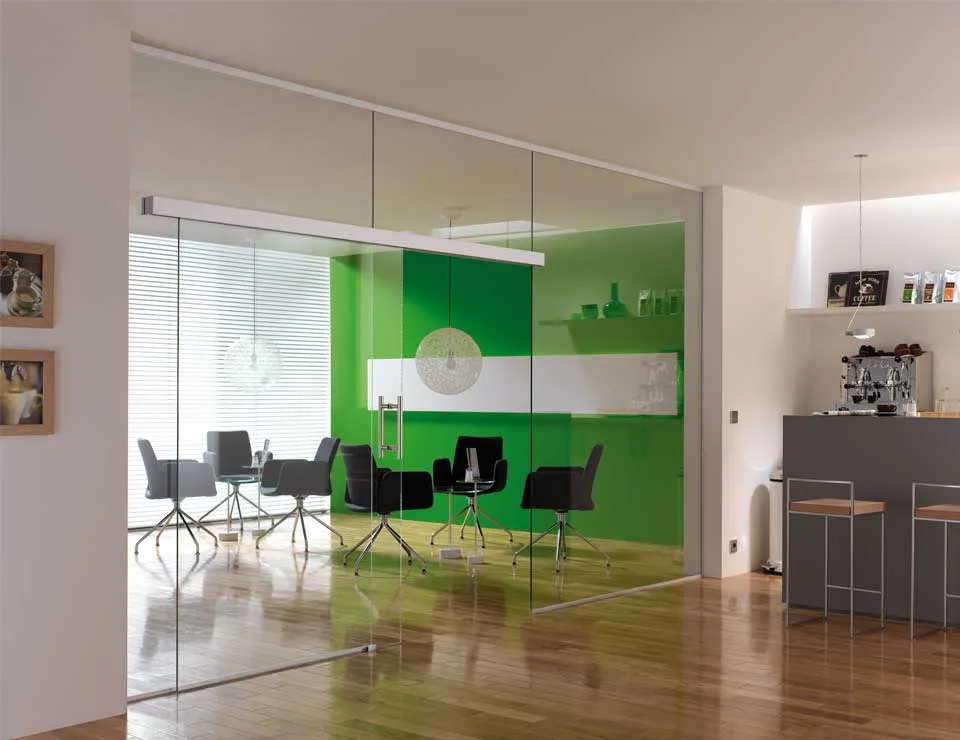

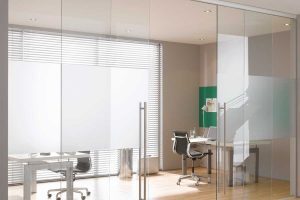

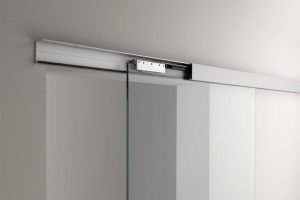

Gallery


Description

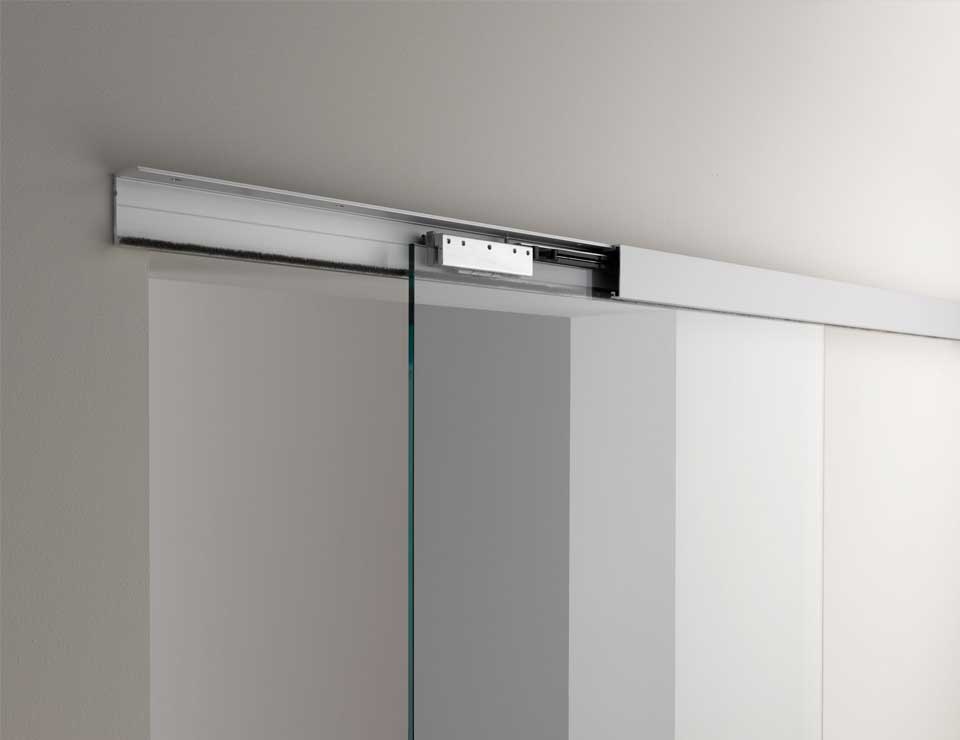

The Cloud Assisted Sliding Door is our premium automated interior sliding glass door which can be integrated into the Solare Single Glazed, Solare Double Glazed, Elite Free Standing as well as a solid traditional wall to add a touch of modern style to any entryway. Minimal maintenance is required for this door system which uses cutting edge technology such as our patented comfort stop, auto close and exact trigger engineering.

The door accommodates tempered, laminated and low iron glazing, and can be clear or patterned or have a custom graphic. The Cloud Assisted Sliding Door fits into a straight or curved configuration and be of ceiling, glass or soffit face mount. A pair of sliding doors is also an option for wider entries. The minimal 5/8” gap between the door and fixed panel reduces the risk of trapping fingers. Locking hardware is available.

The maximum height for the Cloud Assisted Sliding Door is 12’-0” and maximum

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

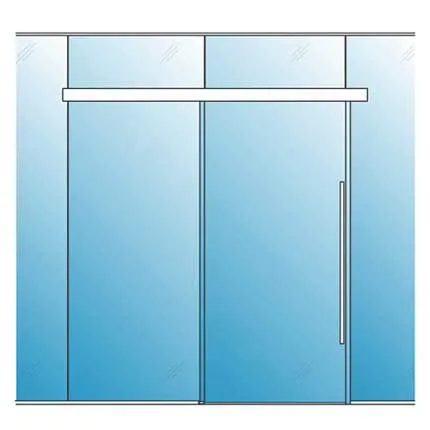

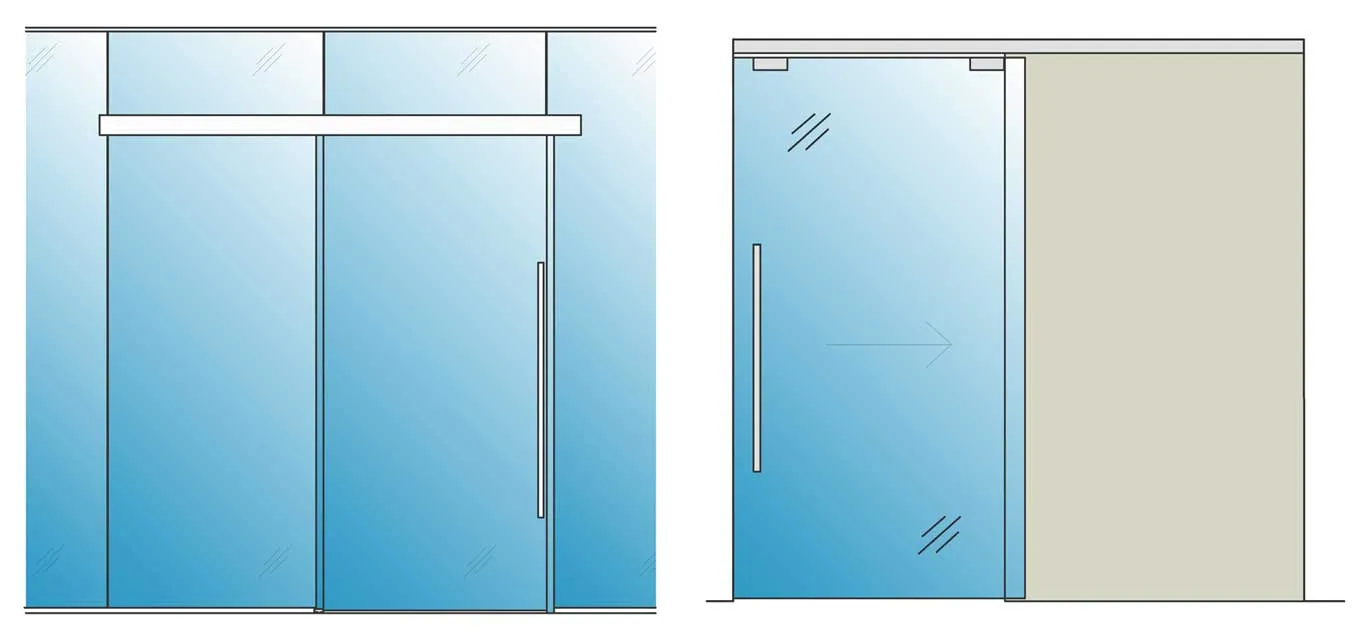

Cloud Assisted Close Sliding Glass Door Elevation

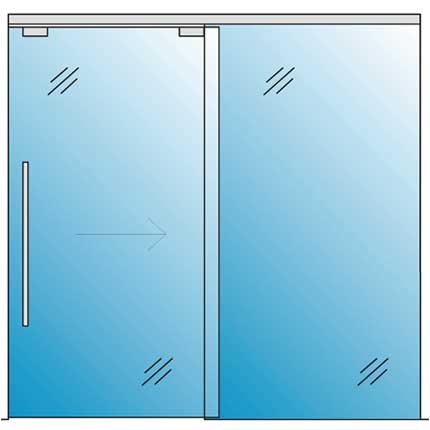

  • Detail 01
    Assisted Close

    Assisted Close Download Detail: DWG | DXF | PDF

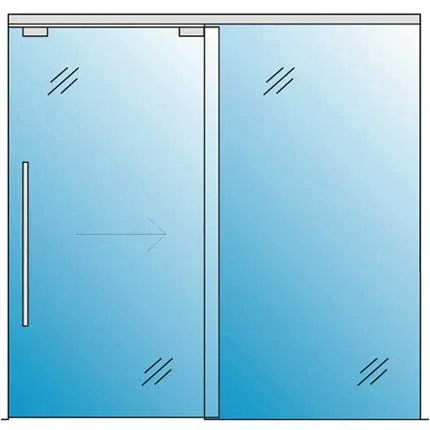

  • Detail 02
    Assisted Close

    Assisted Close Download Detail: DWG | DXF | PDF
  • Detail 03

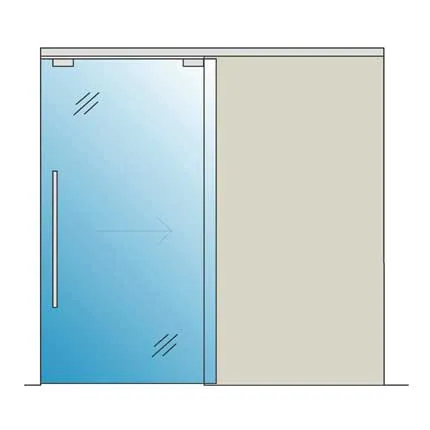

    Assisted Close at Wall

    Assisted Close at Wall Download Detail: DWG | DXF | PDF
Specifications (3 Part Spec)

Download Individual Specifications:

Download All

The Cloud Assisted Sliding Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.
Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.
