Pivot Frameless Swing Door

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Highlights: Free Swing & Self-closing Options Available, No Height Limit, ADA Compliant
  • Glazing Available: 3/8″, 1/2″, 9/16″, 3/4″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available
  • Available Hardware: Overhead Closer, Recessed Floor Closer, Patch Fittings, Door Rails, Handles, Locks

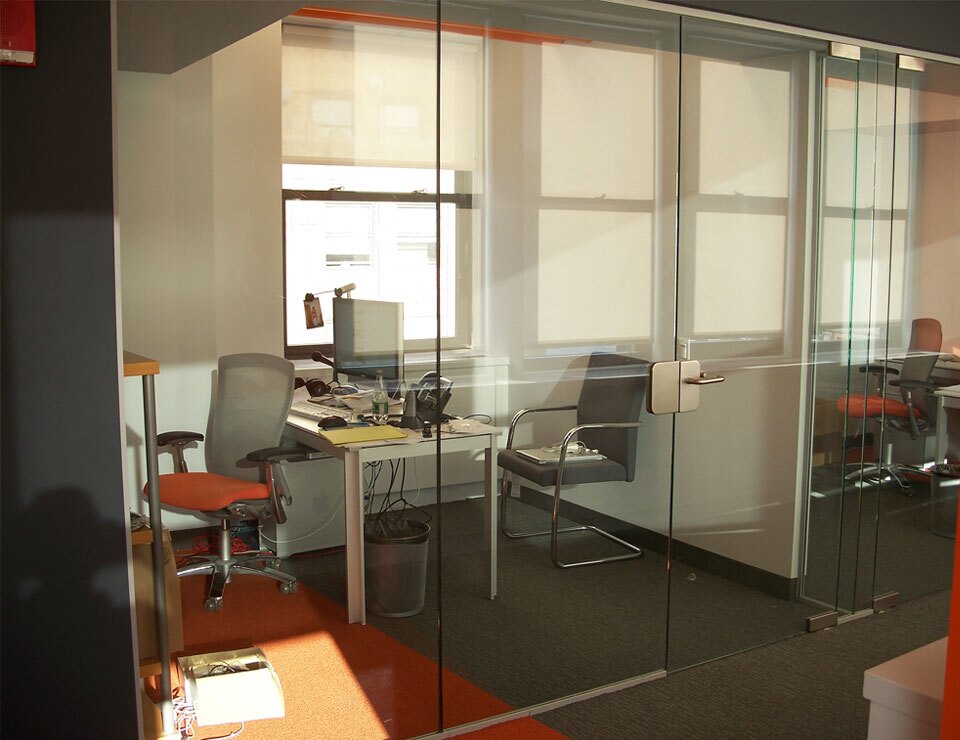

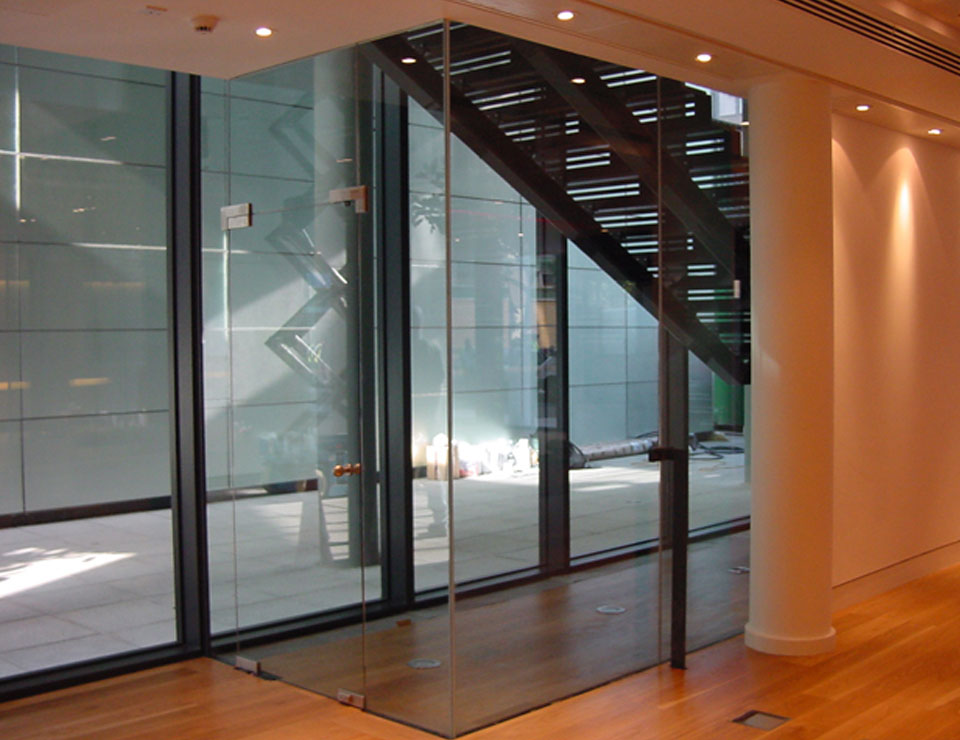

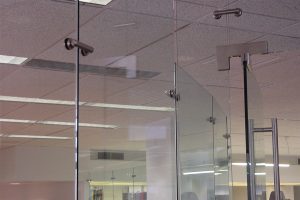

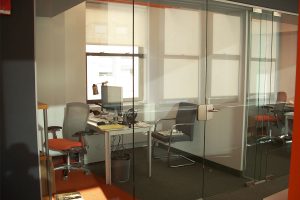

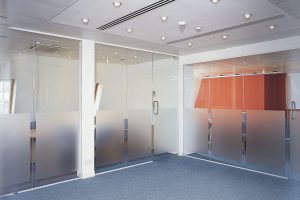

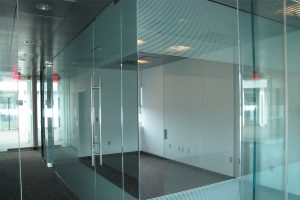

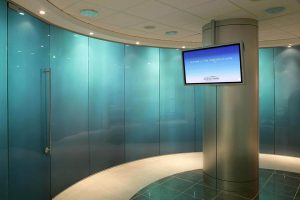

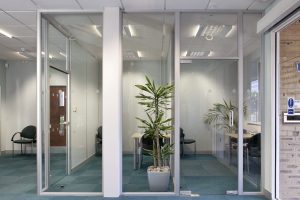

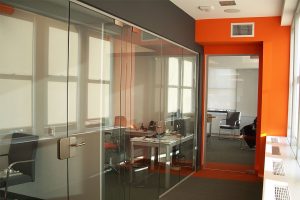

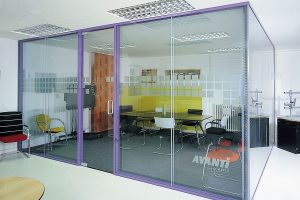

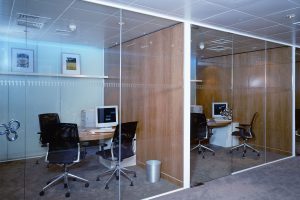

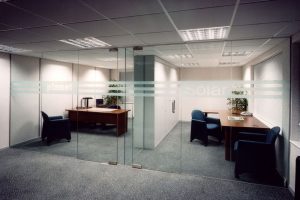

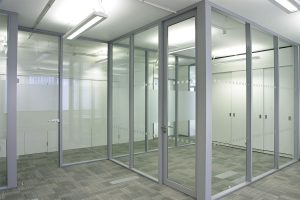

Gallery

Description

The Pivot Frameless Glass Swing Door is our luxury glass door solution that is completely customizable and is compatible with every partition system we offer as well as solid traditional walls. Free swing and self-closing are options that are offered with this versatile solution. Custom assemblies and custom finishes are also offered with the Pivot Frameless Glass Swing Door. The two-way pivoting doors can fit with almost every system we offer and are available with numerous handle options with both locking and standard.

The door accommodates tempered, laminated, low iron and LCD glazing, and can be clear or patterned or have a custom graphic. The Pivot Frameless Glass Swing Door fits into a straight or curved configuration and the only limit to it’s height is the height of the partition. A pair of pivot doors is also an option for wider entries. The Frameless Glass Pivot Door is compatible with any of the hardware we offer; locking and non-locking.

The Pivot Frameless Glass Swing Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

Pivot Frameless Swing Door
  • Detail 01

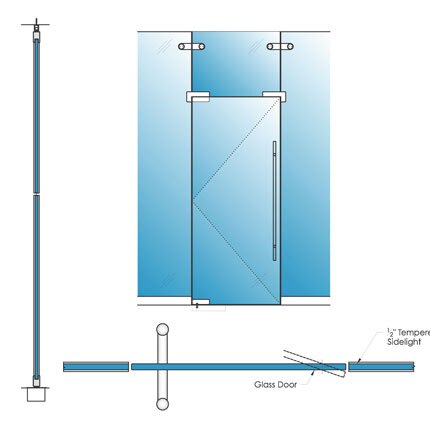

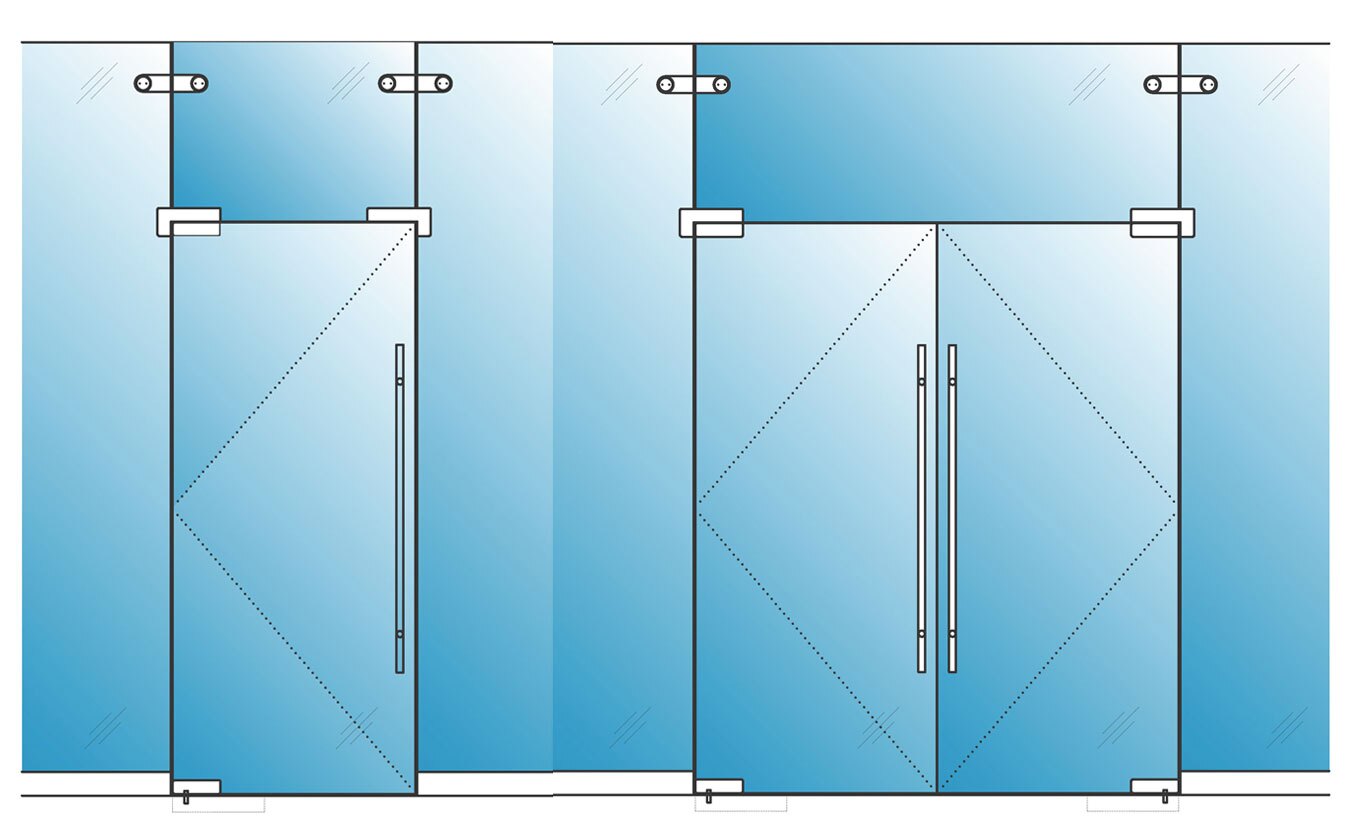

    Single Pivot Swing Door

    Single Pivot Swing Door Download Detail: DWG | DXF | PDF
  • Detail 02

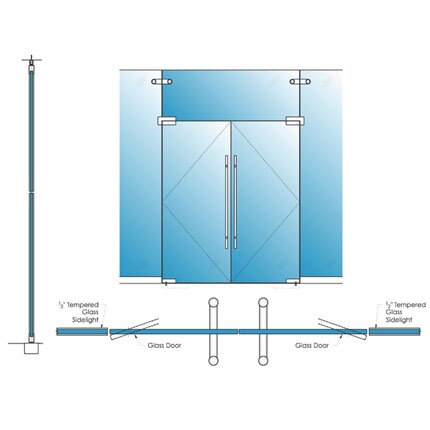

    Pair Pivot Swing Door

    Pair Pivot Swing Door Download Detail: DWG | DXF | PDF
Specifications (3 Part Spec)

Download Individual Specifications:

Download All

The Pivot Frameless Glass Swing Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.
Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.


System Integrations

Solare Single Glazed

Solare Single Glazed Pivot Door

Solare Double Glazed

Solare Double Glazed Pivot Glass Door

Elite Freestanding

Elite Freestanding Pivot Door

Lunar LCD Privacy Smart Glass

Lunar LCD Pivot Door

Transverso Modular Monoblock

Transverso Modular Monoblock

Movare Movable & Folding Glass Partition Systems

Movare Movable & Folding Glass Partition Systems

Elevare High Wall

High Wall Glass Partition Systems
