Hinged Framed Swing

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Highlights: Full Height Available & ADA Compliant
  • Glazing Available: 3/8″, 1/2″, 9/16″, 3/4″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available
  • Available Hardware: Free Swing & Self Closing Options, Locking Lever Handle, Standard Lever Handle, 4 1/2″ Hinges, Recessed Floor Closer, Overhead Closer

Hinge Swing

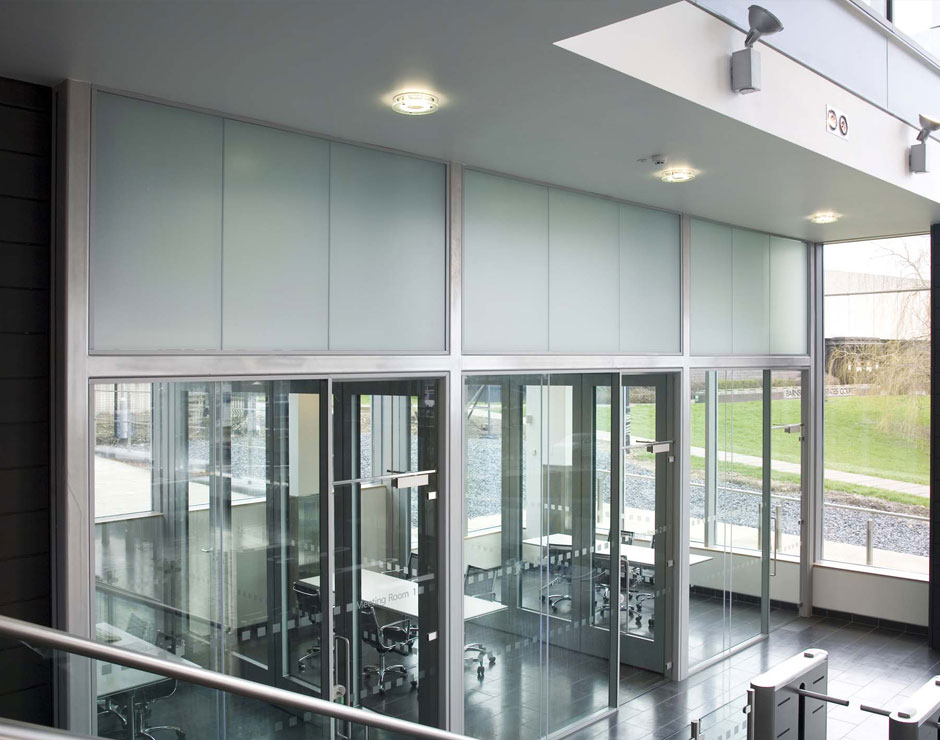

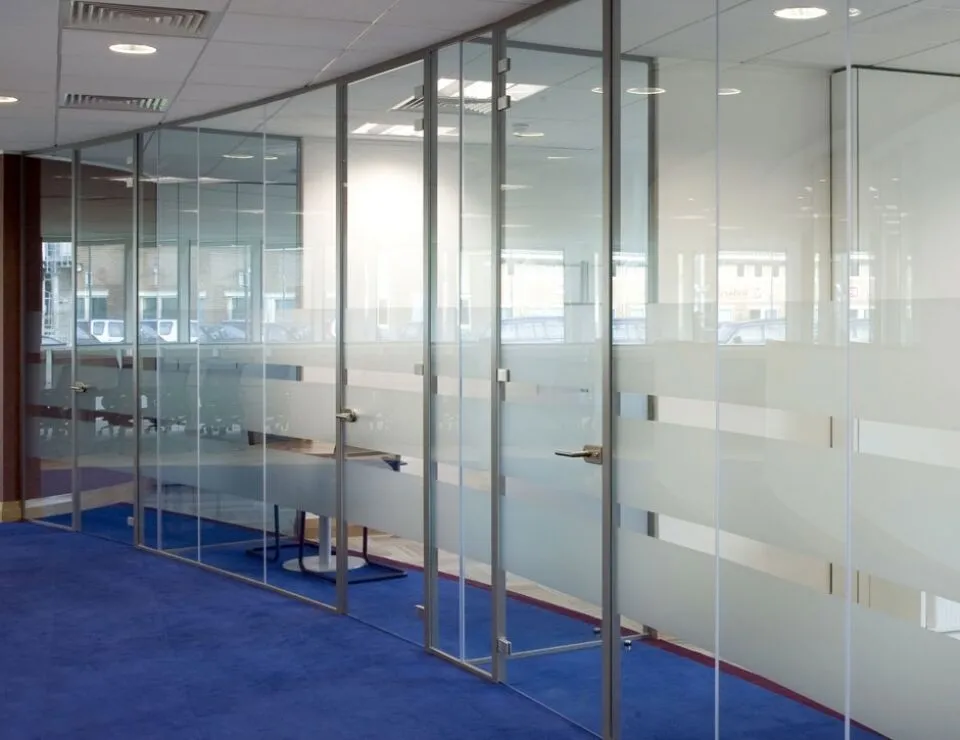

Hinged Framed Swing Glass Door

Description

The Hinged Glass Swing Door is completely customizable and is compatible and fits seamlessly into our Solare Single and Double Glazed Frameless Partition, Elevare Stacking Double Glazed High Wall System, Movare Movable Double Glazed System or Transverso Monoblock Modular Wall Partition System as well as solid traditional walls. Free swing and self-closing are options that are offered with this versatile solution. Custom assemblies and custom finishes are also offered with the Hinged Glass Swing Door.

The door accommodates tempered, laminated, low iron and LCD glazing, and can be clear or patterned or have a custom graphic. The Hinged Glass Swing Door fits into a straight or curved configuration and the only limit to it’s height is the height of the partition. A pair of pivot doors is also an option for wider entries. Our handles, hinges, pivots, and closers are compatible with the Hinged Glass Swing Door. Available frame finishes include our standard polyester powder coated finish (RAL color choices), Brushed Finish and Stainless Steel Finish. Custom finishes are also available.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

Hinged Framed Swing

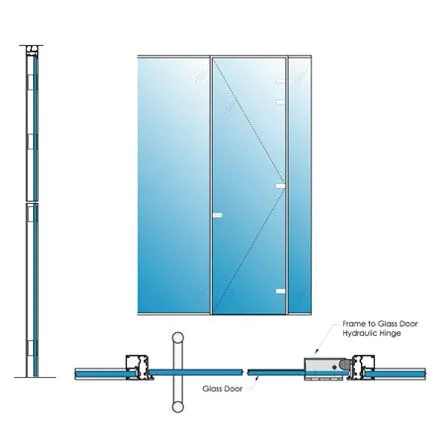

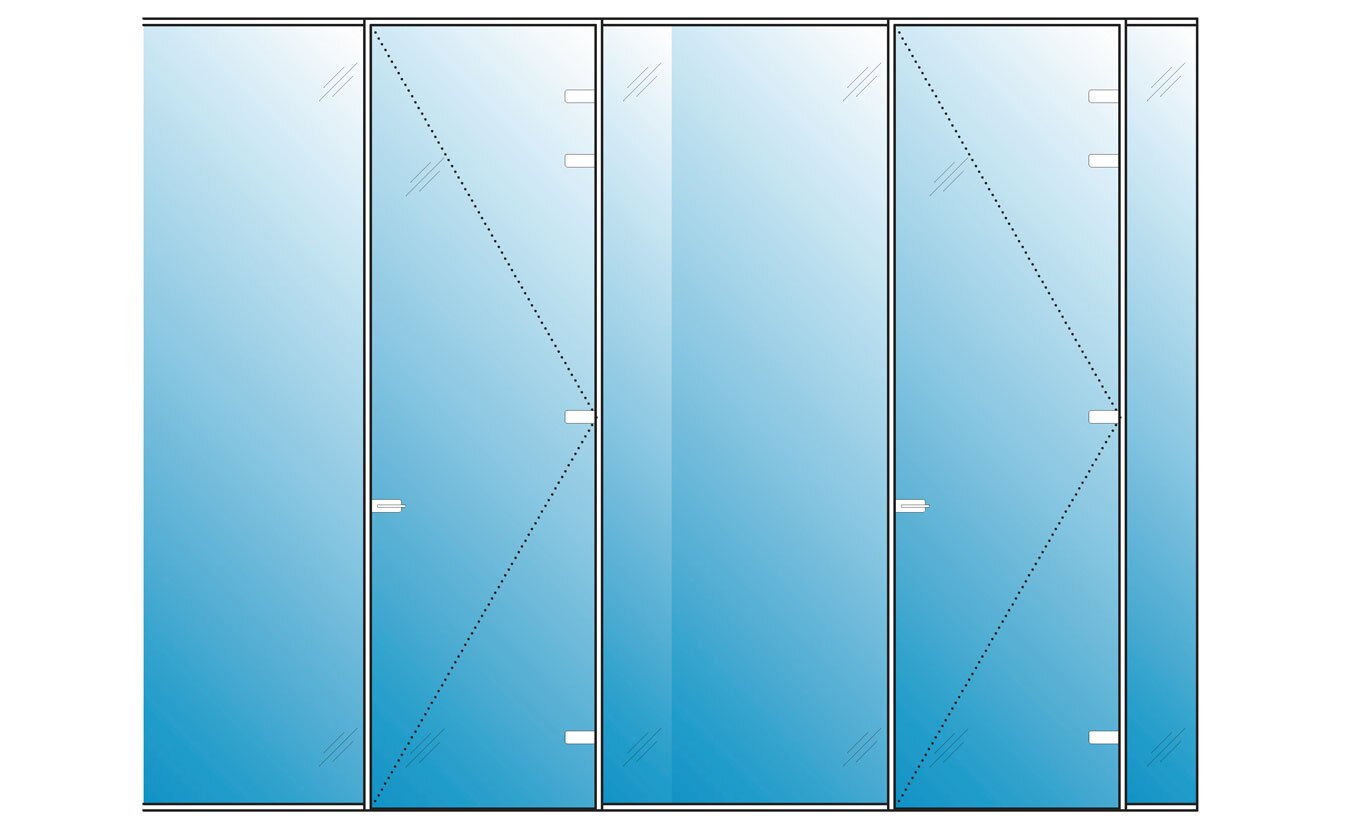

  • Detail 01
    Hinged Framed Swing

    Hinged Framed Swing Download Detail: DWG | DXF | PDF
Specifications (3 Part Spec)

Download Individual Specifications:

Download All

The Hinged Glass Swing Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.
Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.


System Integrations

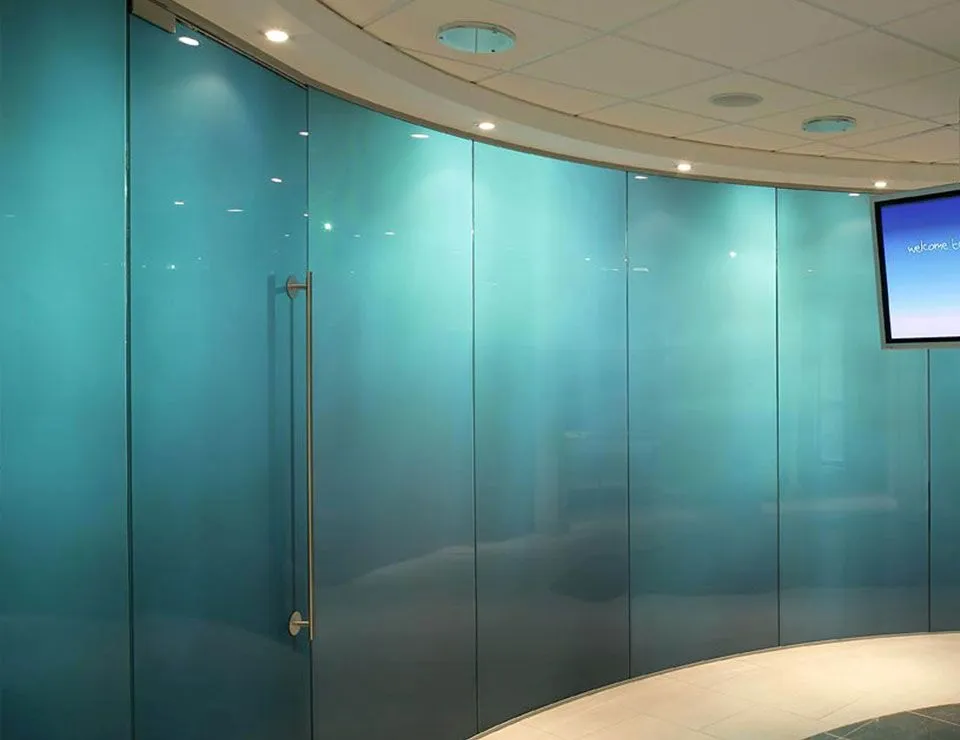

Solare Single Glazed

Solare Single Glazed Pivot Door

Solare Double Glazed

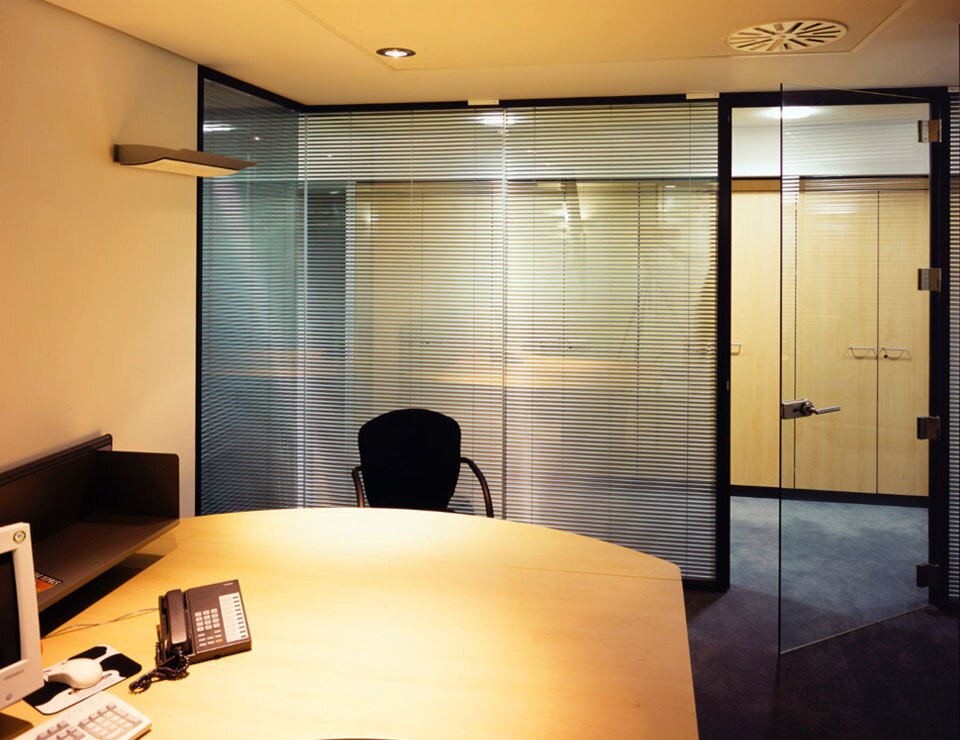

Solare Double Glazed Pivot Glass Door

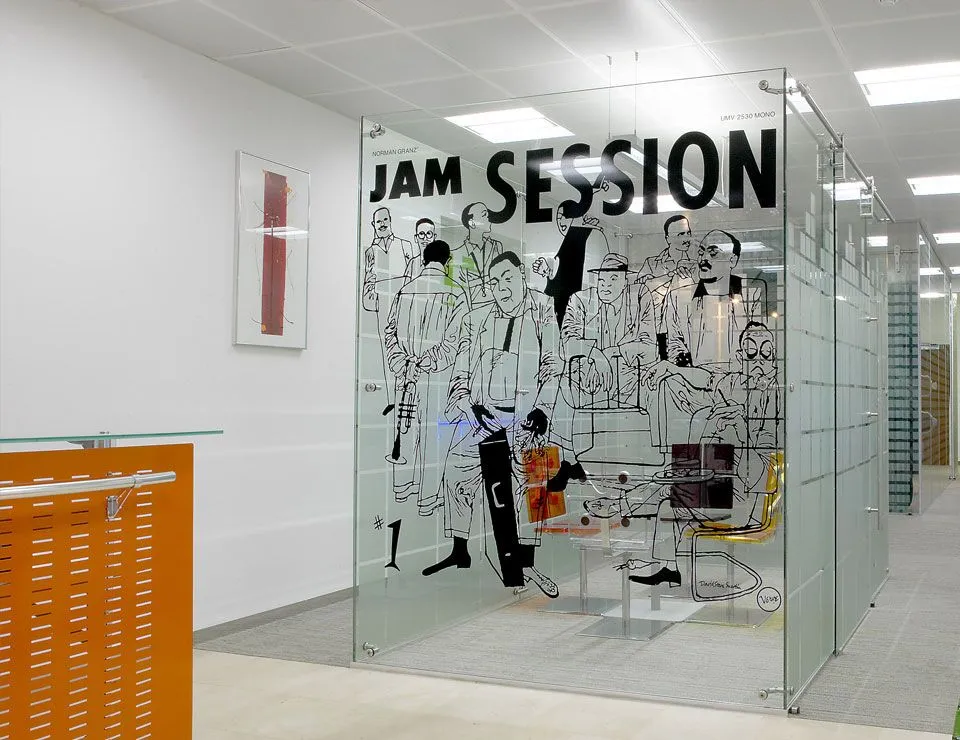

Elite Freestanding

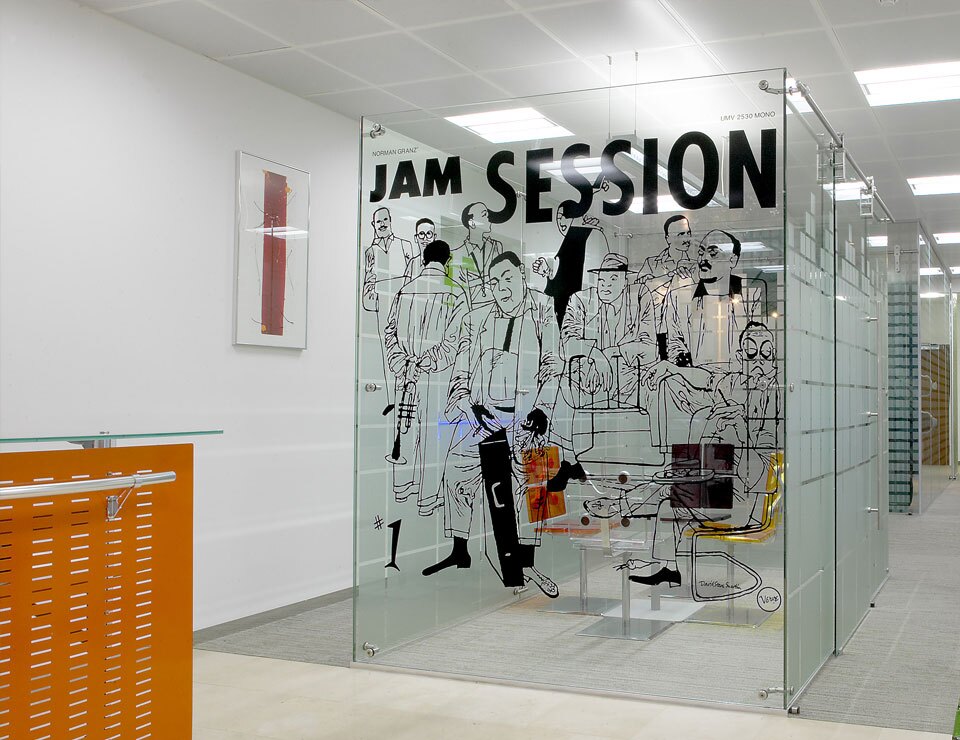

Elite Freestanding Pivot Door

Lunar LCD Privacy Smart Glass

Lunar LCD Pivot Door

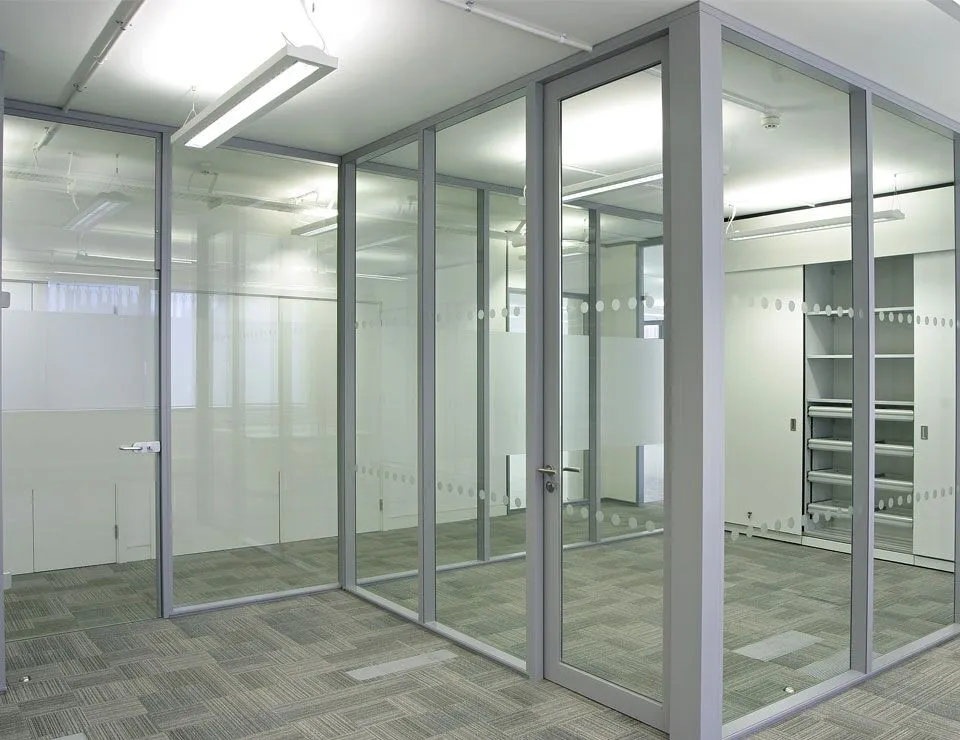

Transverso Modular Monoblock

Transverso Modular Monoblock

Movare Movable & Folding Glass Partition Systems

Movare Movable & Folding Glass Partition Systems

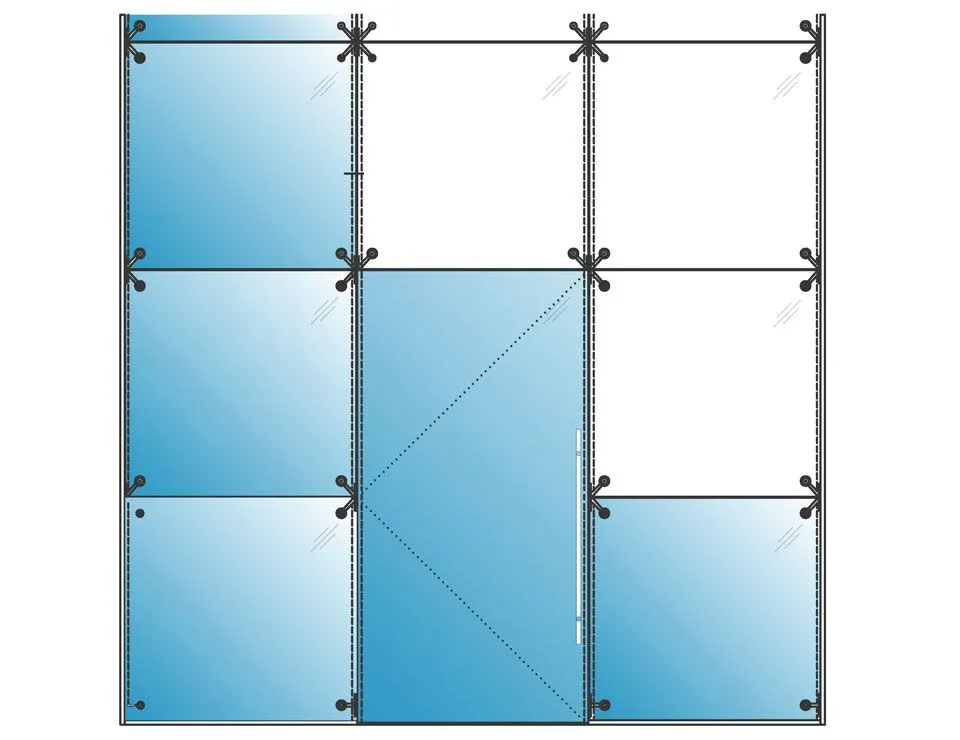

Elevare High Wall

High Wall Glass Partition Systems
