Panic Doors

Request A Quote
Technical Data
Architects Package

(Elevation, CAD Details & Specs)


  • Access to Exterior Options: Opening by key from the outside, Lever handle plate and cylinder, No access from exterior
  • Glazing Available: 3/8″, 7/16″, 1/2″, 9/16″, 3/4″
  • Max Door Width: 38″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available

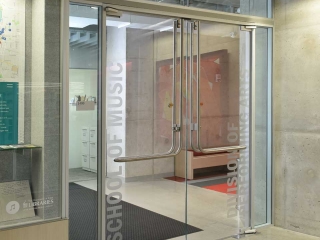

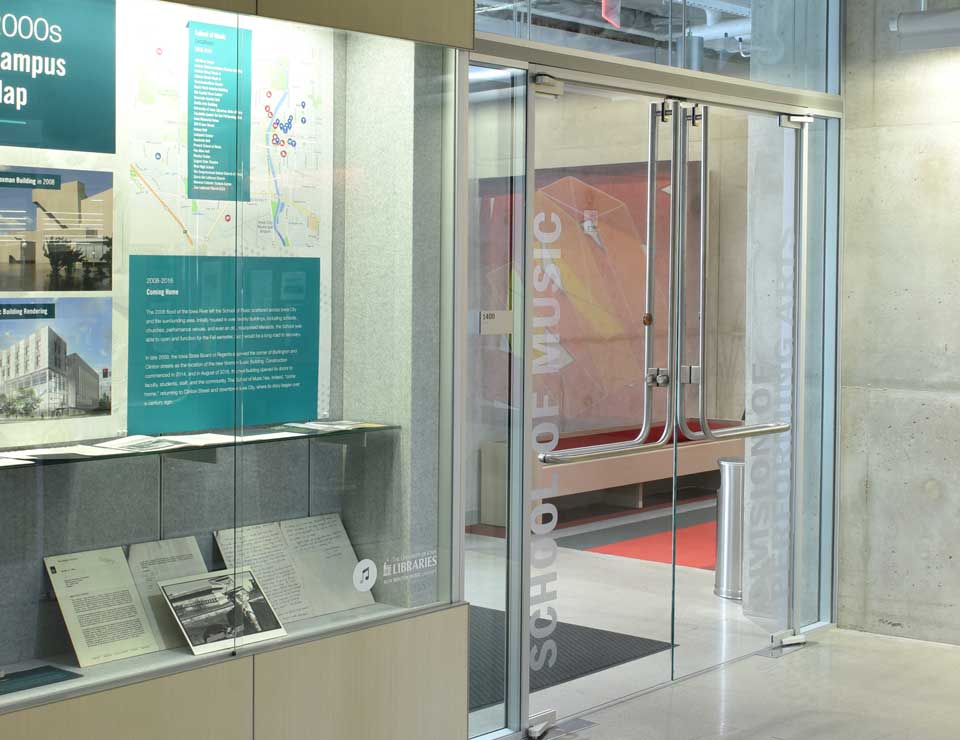

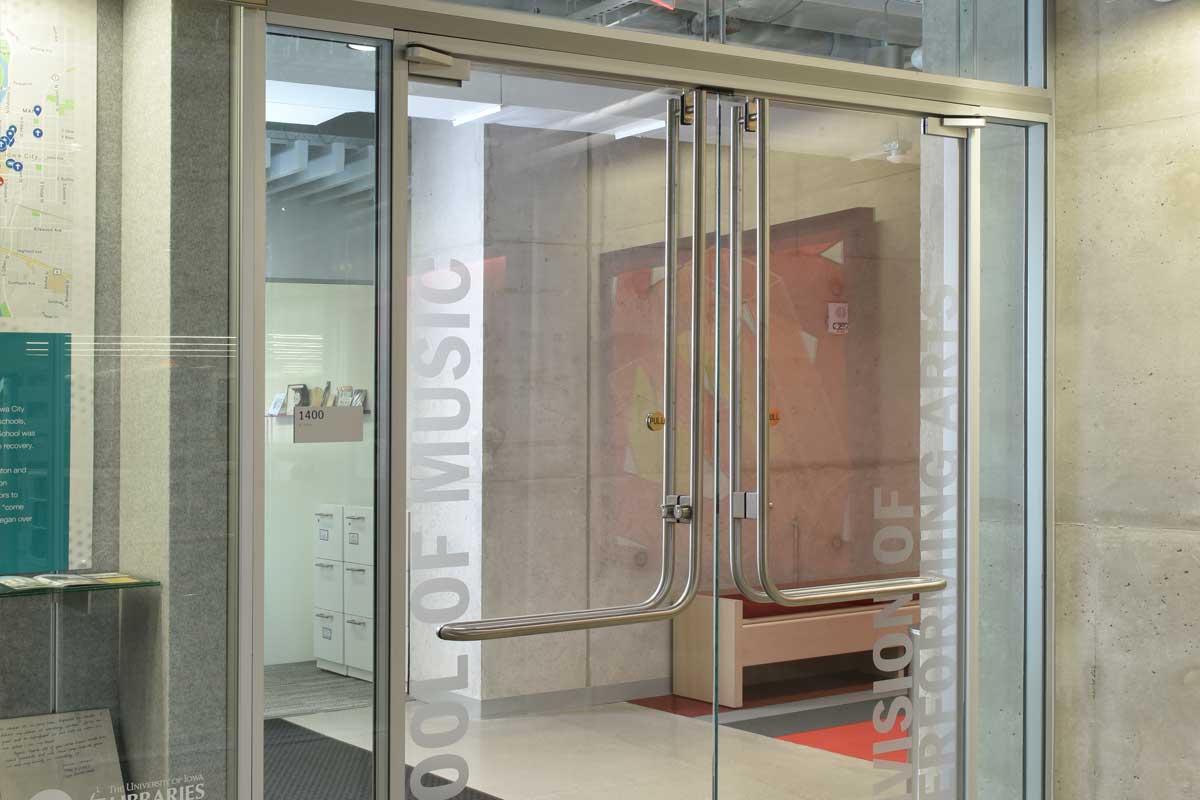

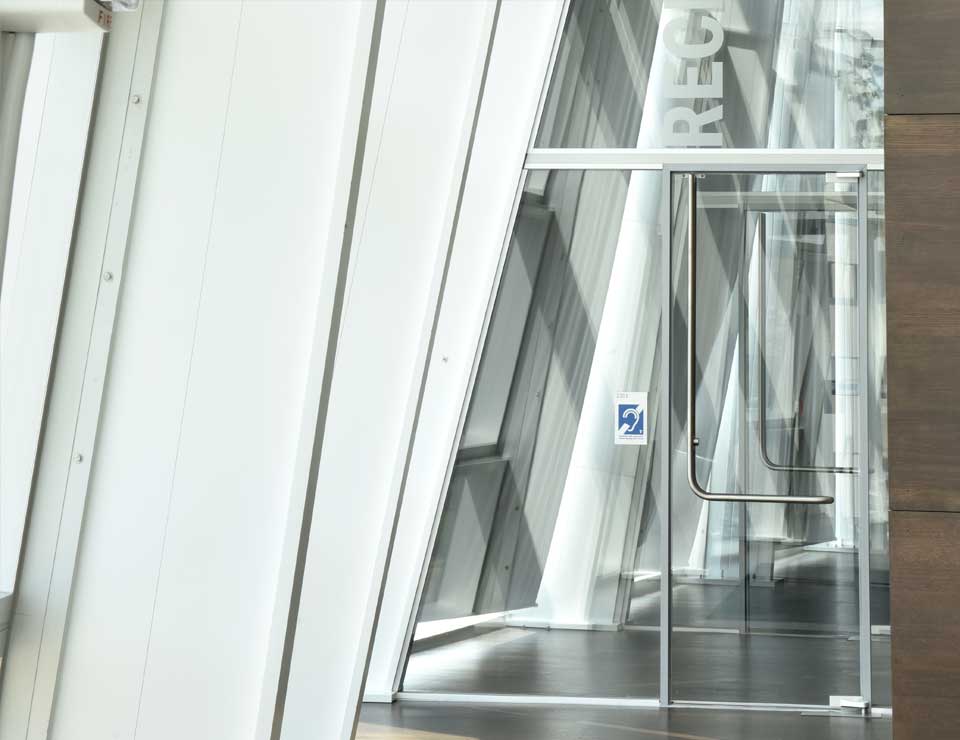

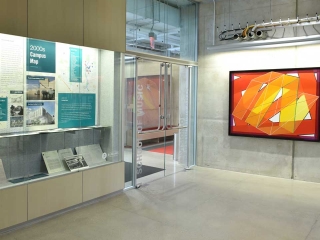

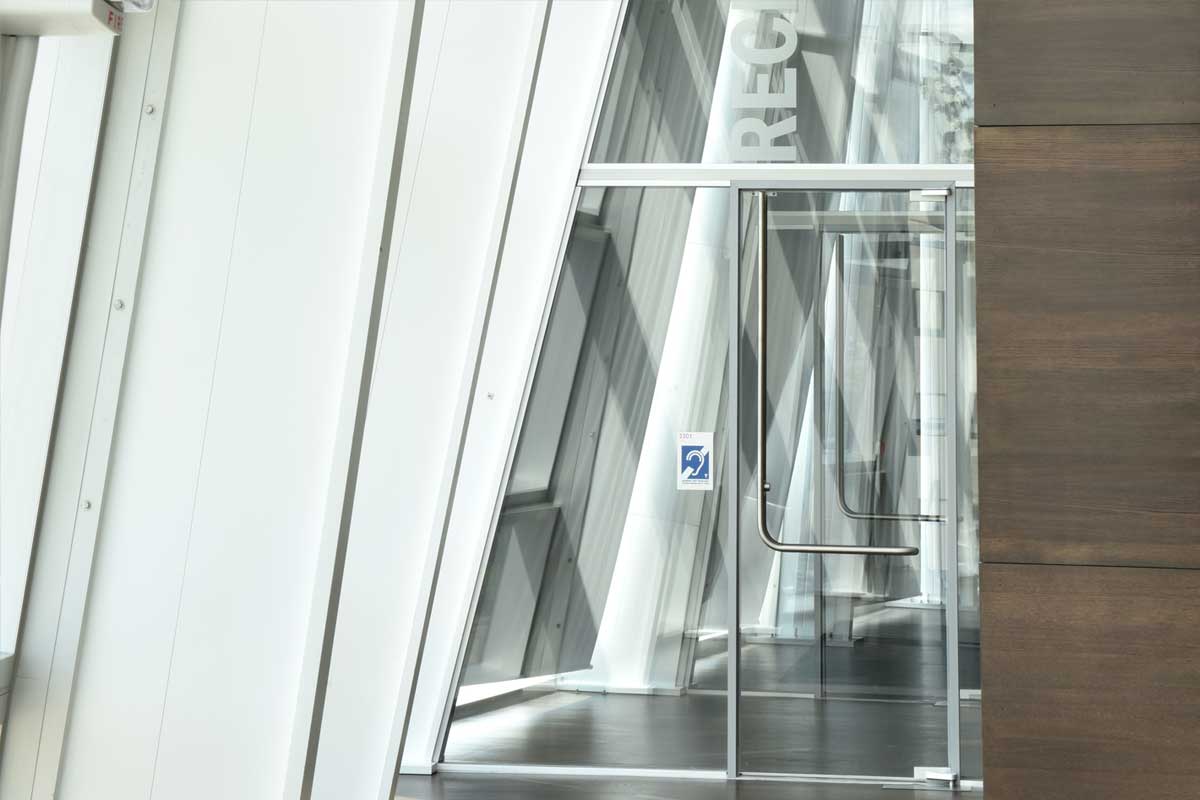

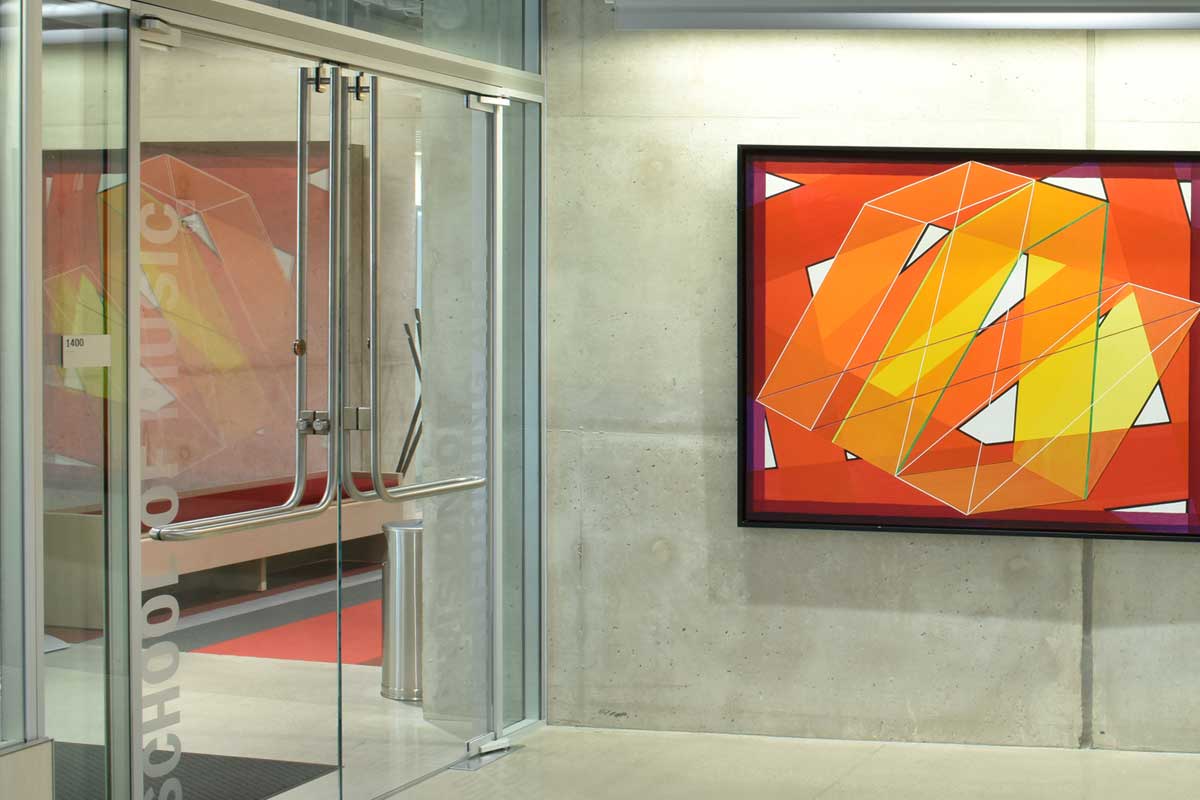

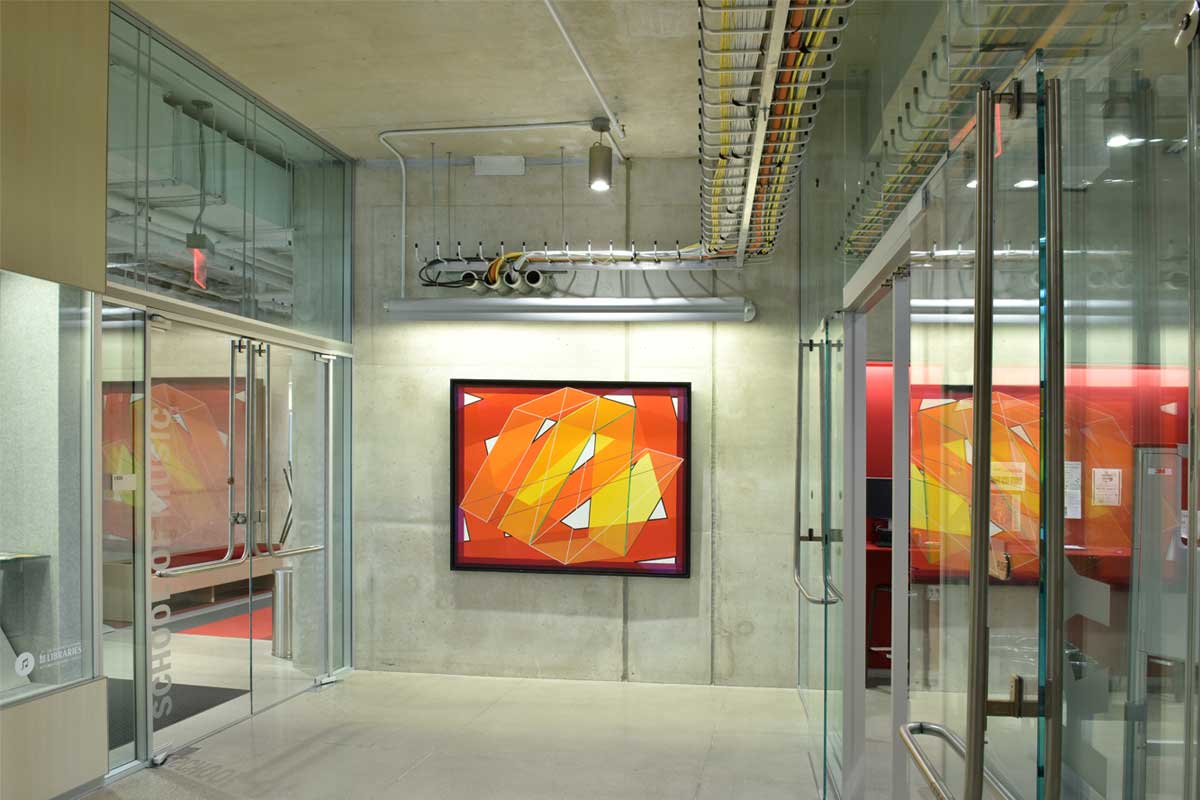

Gallery

Description

Panic Exit Devices for Glass Doors are available to make glass doors comply with building code egress requirements. The locking side is reversible for single doors (rim device). Available types include: Closing system through a side latch (rim device) and Closing system through top and bottom down bolts (pair of doors).

Options: Without access from exterior side, Opening by key from the exterior (lever handle with plate and cylinder included), Opening by key and lever handle from the outside (lever handle with plate and cylinder included).

The hardware is available in a satin finish.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

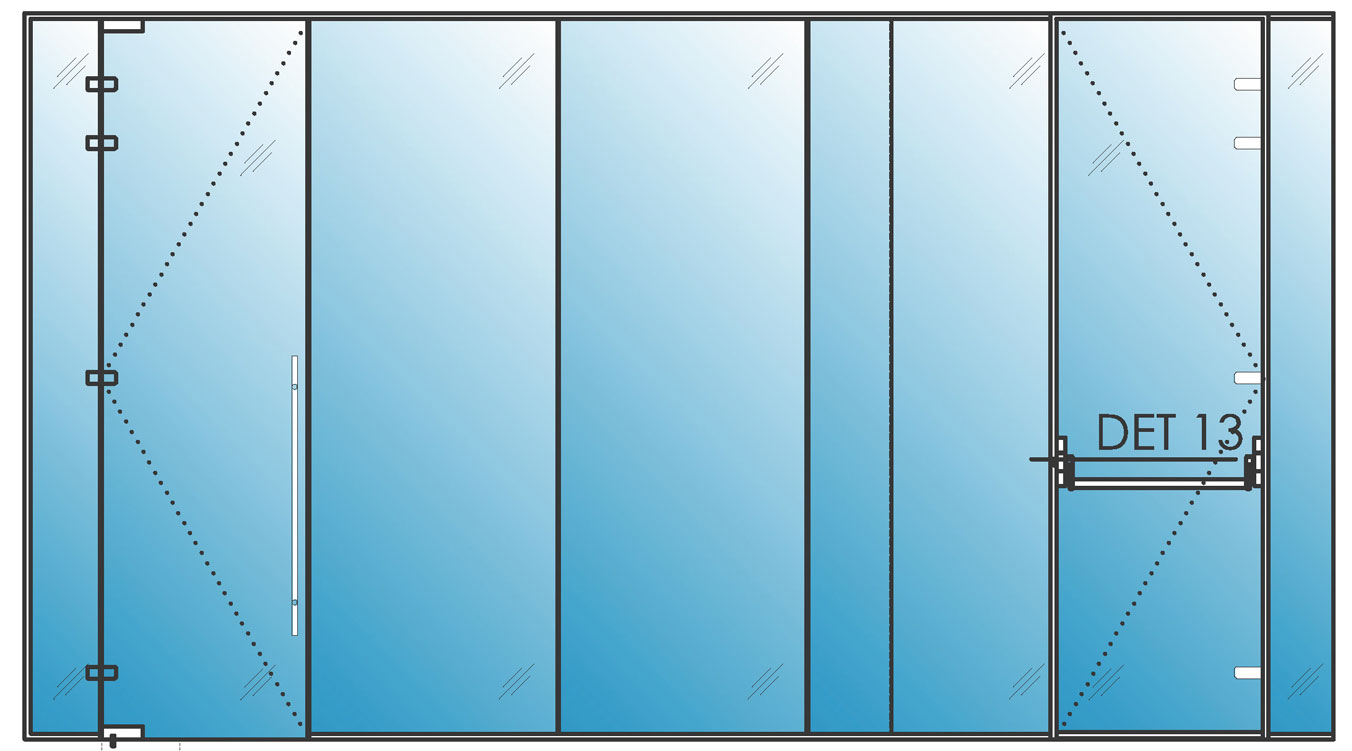

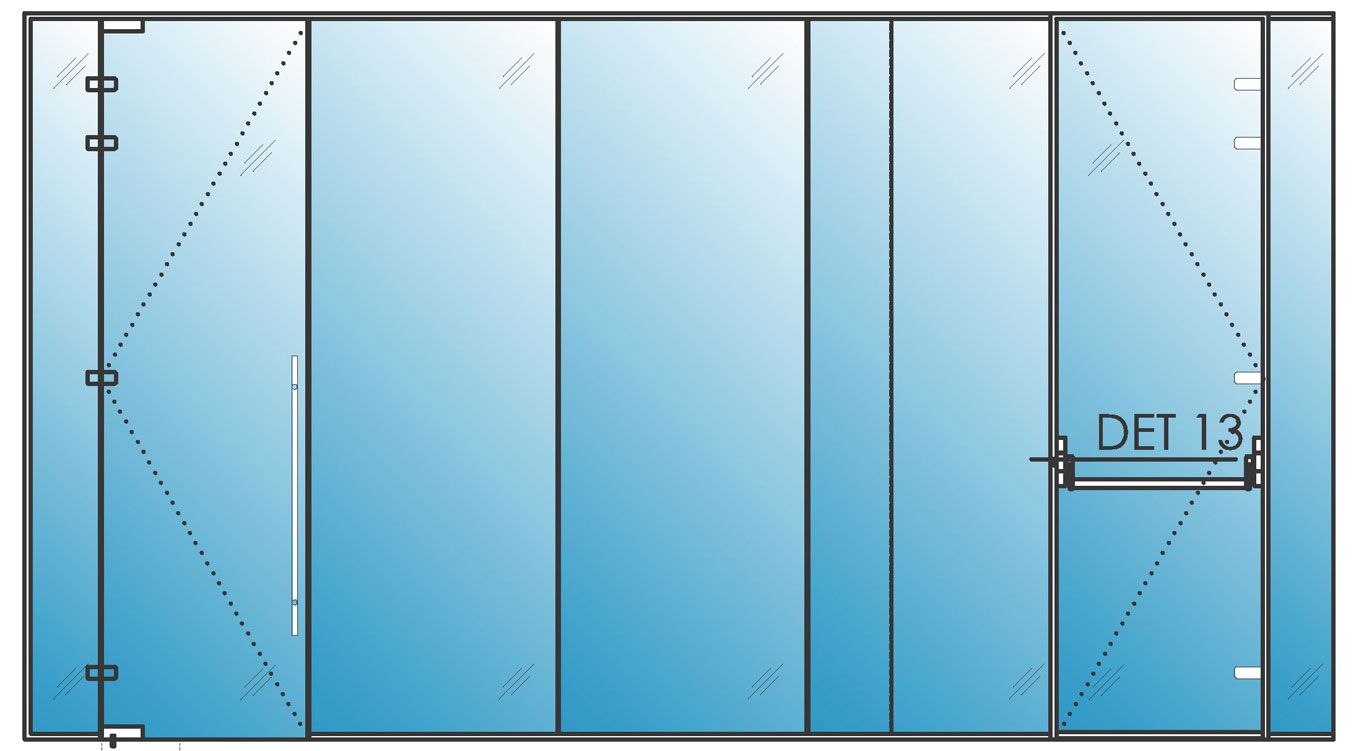

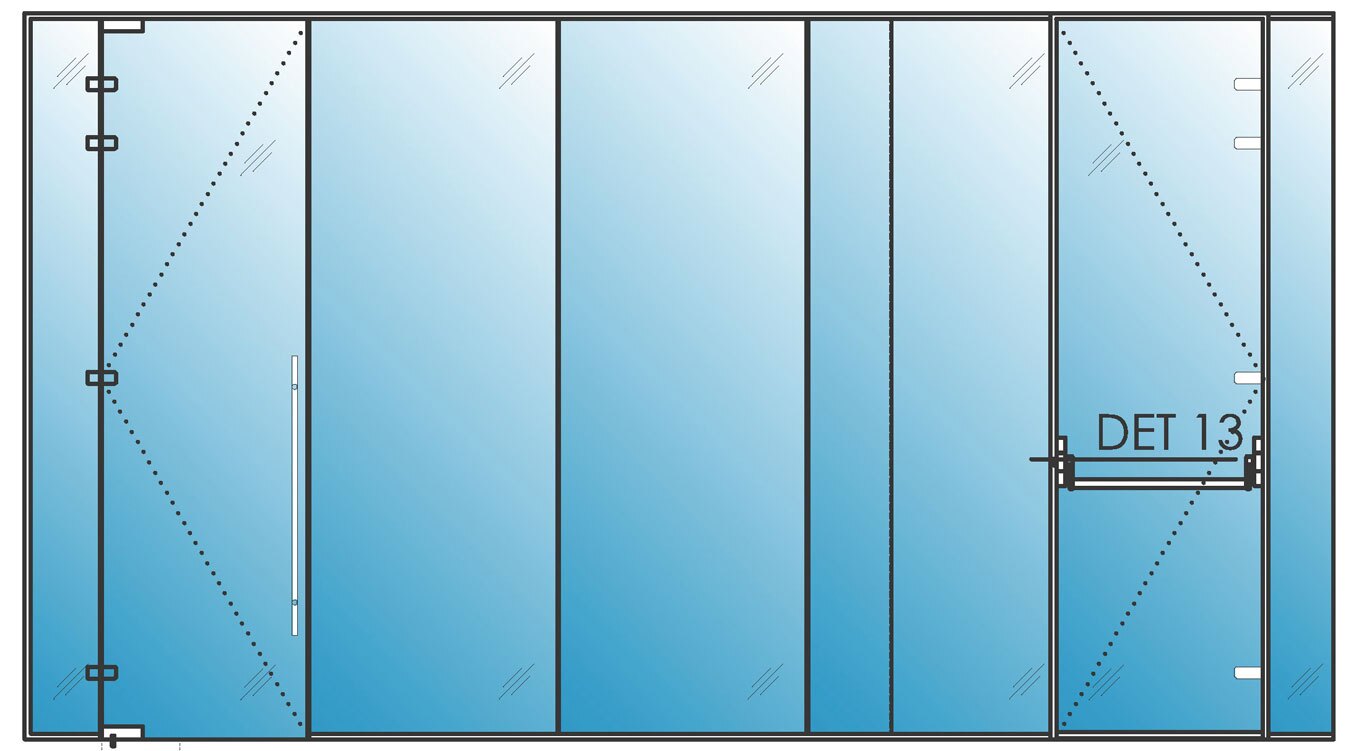

Glass Panic Door Elevation
  • Detail 01

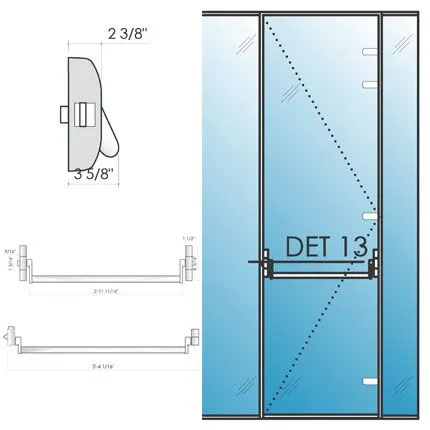

    Panic Hardware

    Panic Hardware Download Detail: DWG | DXF | PDF
  • Detail 02

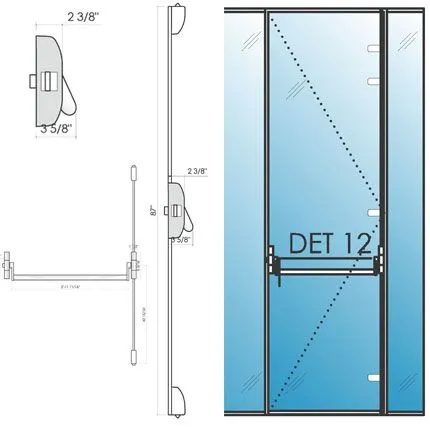

    Panic Hardware With Rod

    Panic Hardware With Rod Download Detail: DWG | DXF | PDF
NEED LEED DETAILS WRITTEN
Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.
