Solare Single Glazed Frameless Partition System

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Maximum Glazing Panel Width: 60″
  • Maximum Glazing Panel Height: Full height up to 12′-0″
  • Glazing Available: 3/8″, 7/16″, 1/2″, 9/16″, 3/4″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available
  • STC Rating: 35

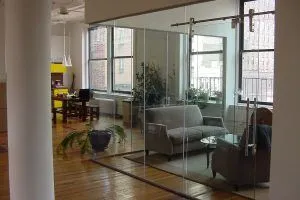

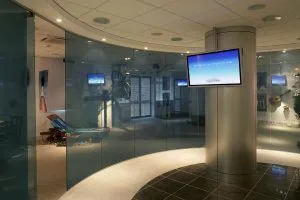

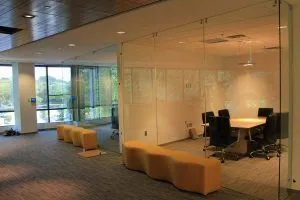

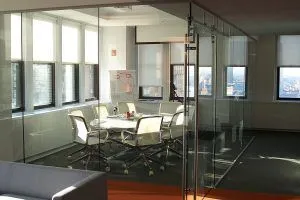

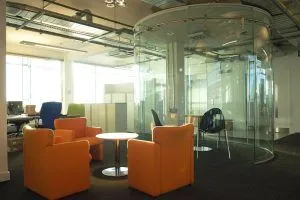

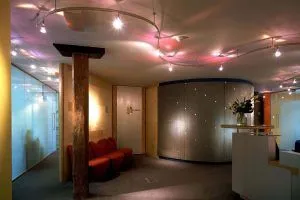

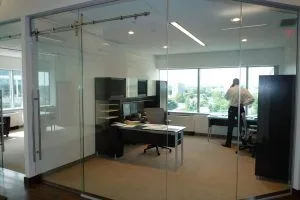

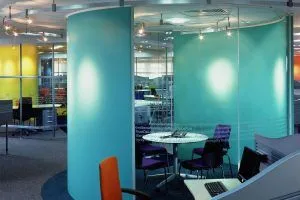

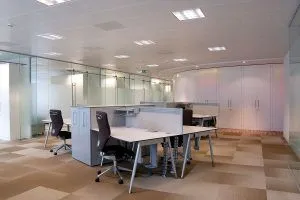

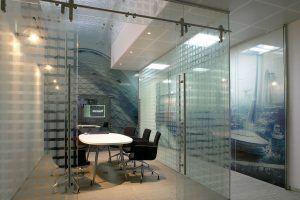

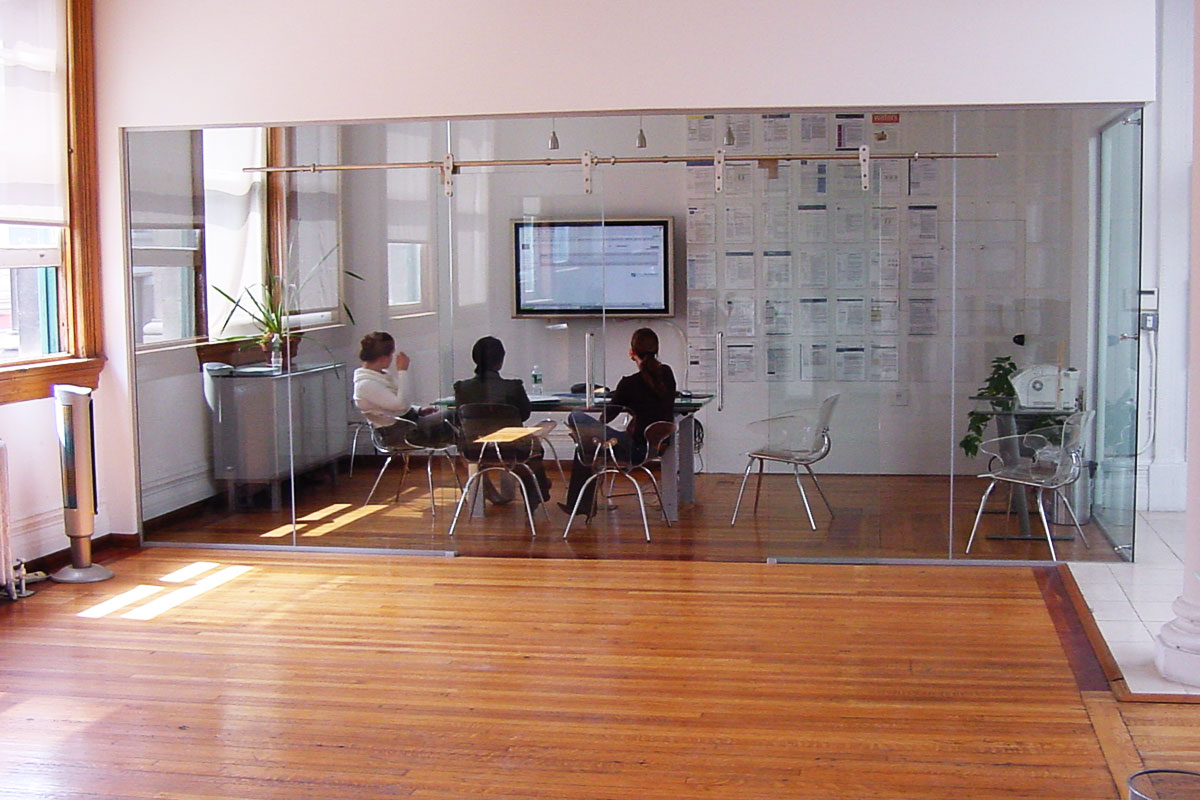

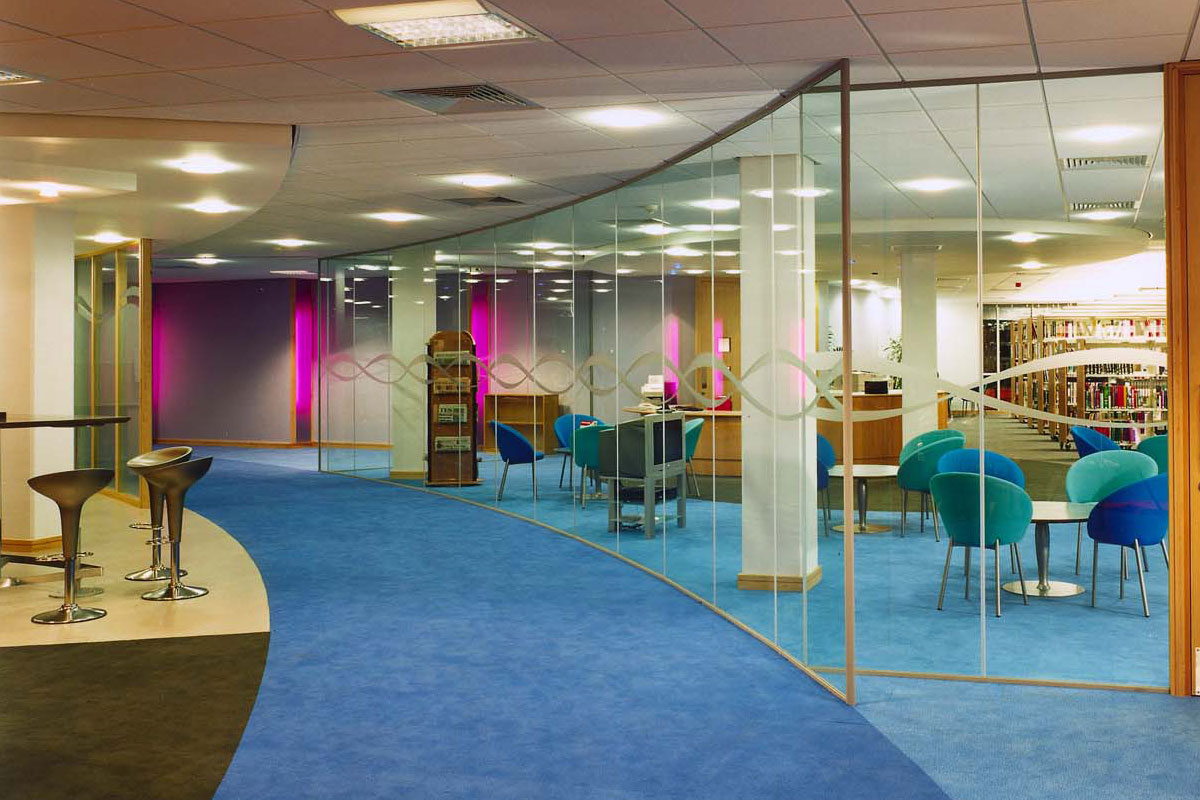

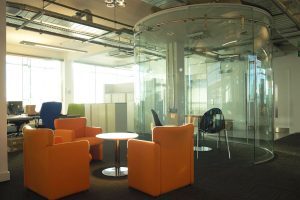

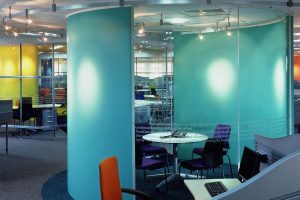

Gallery

Description

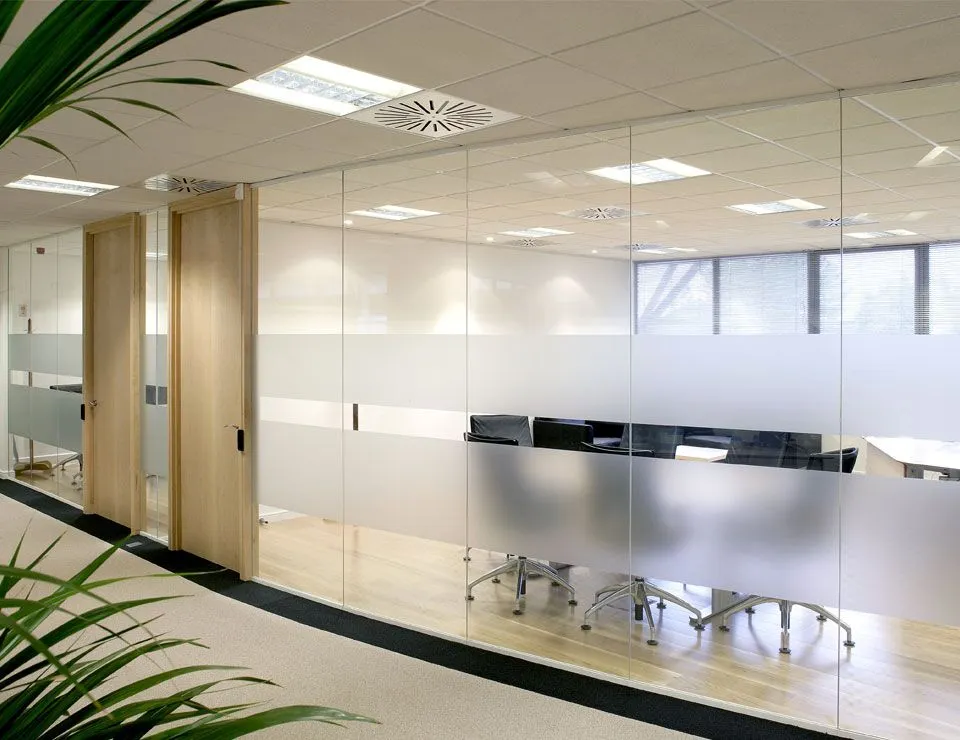

Single Glazed Frameless Glass Walls are an aesthetically superior alternative to solid walls and a premium choice for organizing and dividing interior commercial spaces. Some features include: full height floor to ceiling applications, faceted or curved configuration options, custom graphics and textures, dry jointed glazed installation (no adhesives), 2-part glazing sections and fully demountable.

The 1”x1” aluminum track accommodates tempered, laminated, low iron and LCD glazing and may be of standard or custom RAL color. The track may also be of a straight or curved configuration. LCD, pivot, sliding and hinged doors may be installed. Wood and glass doors (single glazed and double glazed) are all compatible within the single glazed system. The single glazed system frame may be recessed into the wall giving a modern clean glass to wall break. If you prefer the more traditional look, the standard frame can be installed in the opening visibly framing the glazing.

This frameless glass wall system is engineered to meet the technical specifications of Architects and Design professionals. Some features include: full height floor to ceiling applications, faceted or curved configuration options, custom graphics and textures, high quality hardware and fittings.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

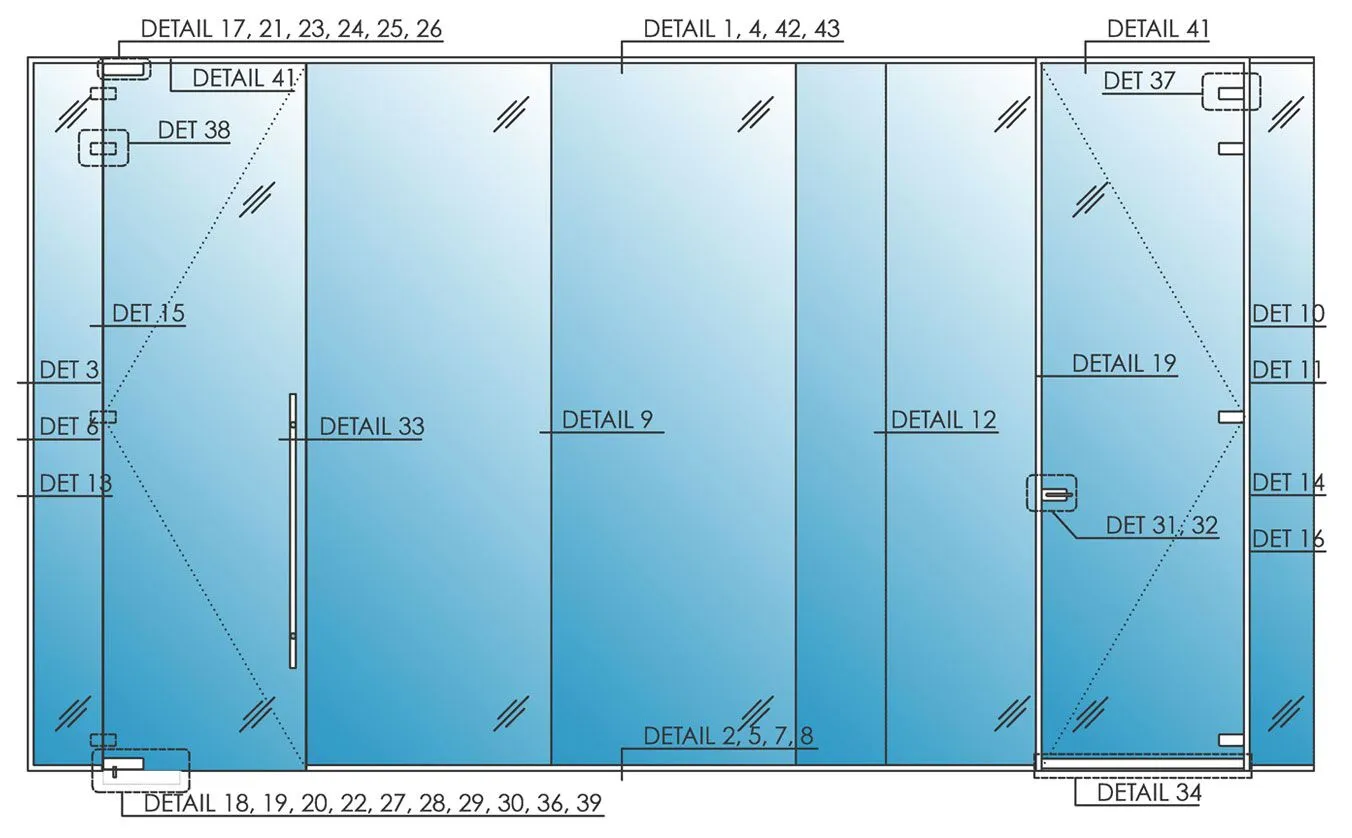

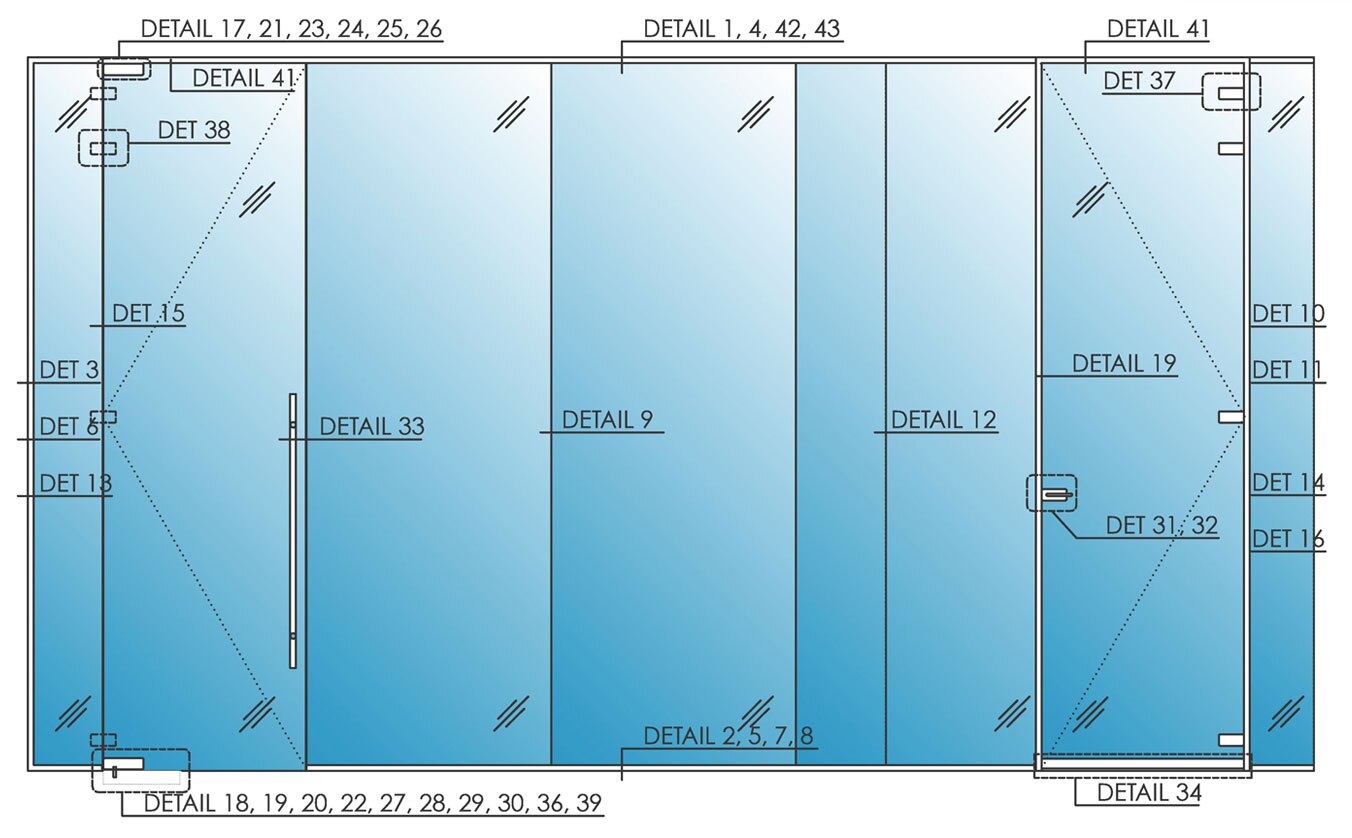

Solare Single Glazed Elevation
  • Detail 01
    Standard Track Single Glazed Head

    Standard Track Single Glazed Head Download Detail: DWG | DXF | PDF
  • Detail 02
    Standard Track Single Glazed Base

    Standard Track Single Glazed Base Download Detail: DWG | DXF | PDF
  • Detail 03
    Standard Track Single Glazed Jamb

    Standard Track Single Glazed Jamb Download Detail: DWG | DXF | PDF
  • Detail 04
    Recessed Track Single Glazed Head

    Recessed Track Single Glazed Head Download Detail: DWG | DXF | PDF

  • Detail 05
    Recessed Track Single Glazed Base

    Recessed Track Single Glazed Base Download Detail: DWG | DXF | PDF
  • Detail 06
    Recessed Track Single Glazed Jamb

    Recessed Track Single Glazed Jamb Download Detail: DWG | DXF | PDF
  • Detail 07
    Glazed Partition Sill Heavy Shoe Base

    Glazed Partition Sill Heavy Shoe Base Download Detail: DWG | DXF | PDF
  • Detail 08
    Glazed Partition Sill Base Angle

    Glazed Partition Sill Base Angle Download Detail: DWG | DXF | PDF

  • Detail 09
    H Section Straight Joint

    H Section Straight Joint Download Detail: DWG | DXF | PDF
  • Detail 10
    F Section 90 Corner

    F Section 90 Corner Download Detail: DWG | DXF | PDF
  • Detail 11
    H Section 135 Corner

    H Section 135 Corner Download Detail: DWG | DXF | PDF
  • Detail 12

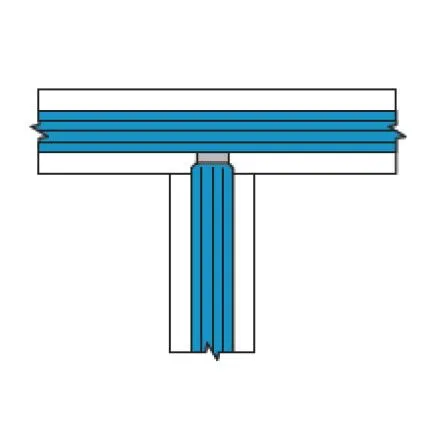

    T Section Bulb Seal

    T Section Bulb Seal Download Detail: DWG | DXF | PDF

  • Detail 13
    Aluminum Corner

    Aluminum Corner Download Detail: DWG | DXF | PDF
  • Detail 14
    Open End Glazing

    Open End Glazing Download Detail: DWG | DXF | PDF
  • Detail 15
    Frameless Pivot Door Scribe Abutment

    Frameless Pivot Door Scribe Abutment Download Detail: DWG | DXF | PDF
  • Detail 16
    Single Glazed Door Frame

    Single Glazed Door Frame Download Detail: DWG | DXF | PDF

  • Detail 17
    Pivot Door Top Free Swing Pivot

    Pivot Door Top Free Swing Pivot Download Detail: DWG | DXF | PDF
  • Detail 18
    Pivot Door Bottom Free Swing Pivot

    Pivot Door Bottom Free Swing Pivot Download Detail: DWG | DXF | PDF
  • Detail 19

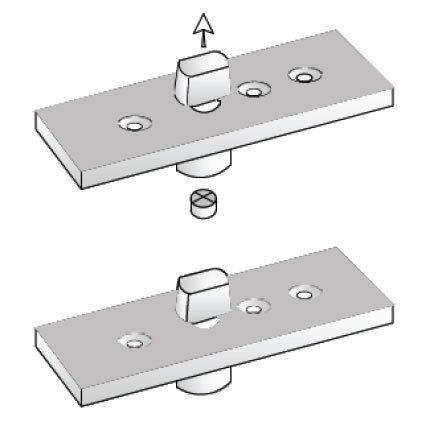

    Pivot Door Bottom Free Swing Pivot Option

    Pivot Door Bottom Free Swing Pivot Option Download Detail: DWG | DXF | PDF
  • Detail 20

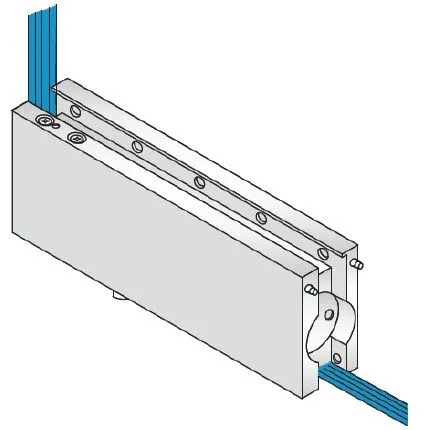

    Hydraulic Self Closing Patch Fitting

    Hydraulic Self Closing Patch Fitting Download Detail: DWG | DXF | PDF

  • Detail 21

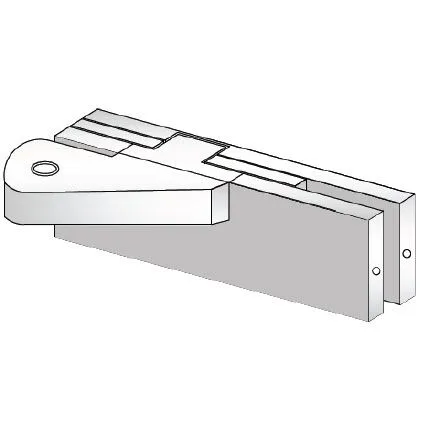

    Top Offset Glass Patch Fitting

    Top Offset Glass Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 22

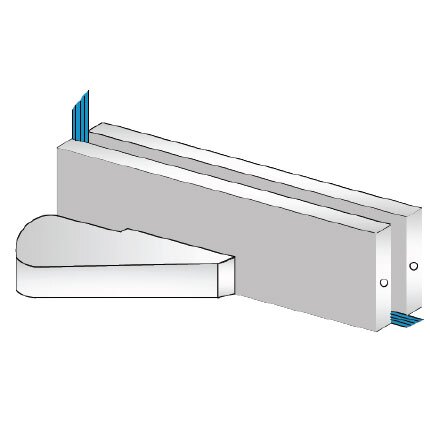

    Bottom Offset Patch Fitting

    Bottom Offset Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 23
    Transom Offset Patch Fitting

    Transom Offset Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 24
    Transom Patch Fitting With Center Pivot

    Transom Patch Fitting With Center Pivot Download Detail: DWG | DXF | PDF

  • Detail 25

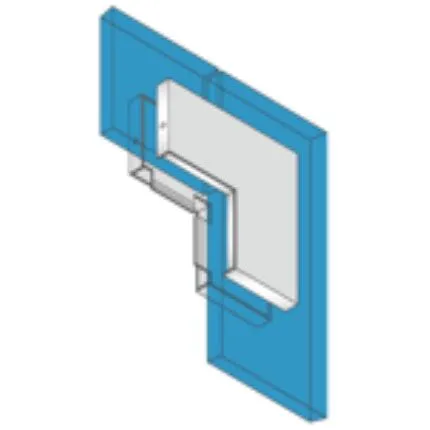

    Transom Patch Fitting With Door Stop

    Transom Patch Fitting With Door Stop Download Detail: DWG | DXF | PDF
  • Detail 26
    Top Center Hung Patch Fitting

    Top Center Hung Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 27
    Bottom Center Hung Patch Fitting

    Bottom Center Hung Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 28
    Center Pivot Wall Mount Patch Fitting

    Center Pivot Wall Mount Patch Fitting Download Detail: DWG | DXF | PDF

  • Detail 29
    Locking Patch Fitting

    Locking Patch Fitting Download Detail: DWG | DXF | PDF
  • Detail 30
    Recessed Walking Beam Pivot

    Recessed Walking Beam Pivot Download Detail: DWG | DXF | PDF
  • Detail 31
    Lever Handle

    Lever Handle Download Detail: DWG | DXF | PDF
  • Detail 32
    Lock Center Mount

    Lock Center Mount Download Detail: DWG | DXF | PDF

  • Detail 33
    Door Pull

    Door Pull Download Detail: DWG | DXF | PDF
  • Detail 34
    Drop Down Bottom Door Seal

    Drop Down Bottom Door Seal Download Detail: DWG | DXF | PDF
  • Detail 35

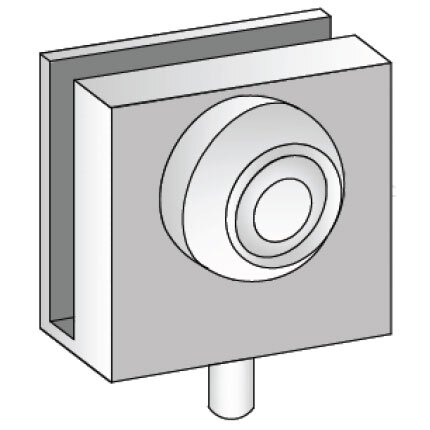

    Deluxe Slip On Lock

    Deluxe Slip On Lock Download Detail: DWG | DXF | PDF
  • Detail 36

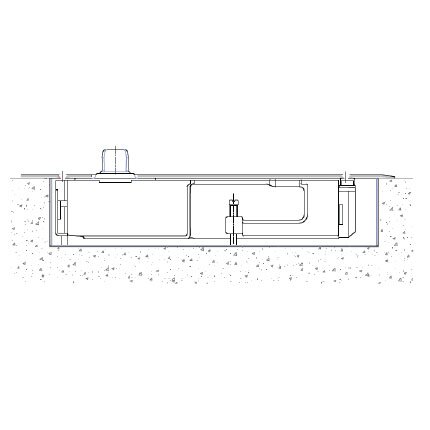

    Floor Recessed Door Closer

    Floor Recessed Door Closer Download Detail: DWG | DXF | PDF

  • Detail 37

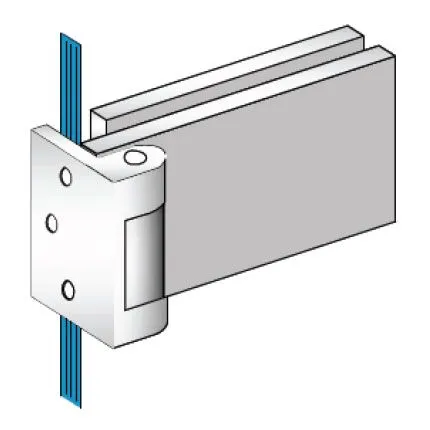

    Free Swing Hinge

    Free Swing Hinge Download Detail: DWG | DXF | PDF
  • Detail 38

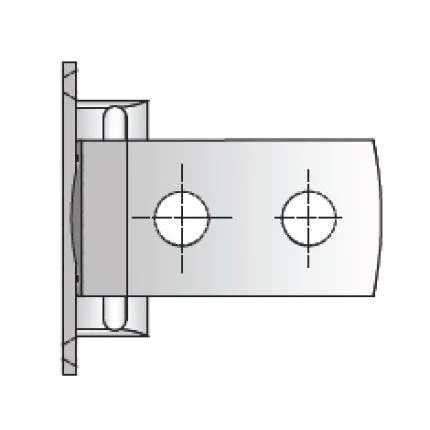

    Frame To Glass Door Hydraulic Hinge

    Frame To Glass Door Hydraulic Hinge Download Detail: DWG | DXF | PDF
  • Detail 39

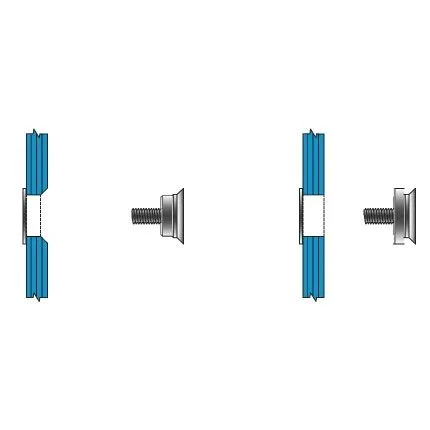

    Fasteners

    Fasteners Download Detail: DWG | DXF | PDF
  • Detail 40
    Dust Proof Keeper

    Dust Proof Keeper Download Detail: DWG | DXF | PDF

  • Detail 41
    Lcd Glazed Door

    Lcd Glazed Door Download Detail: DWG | DXF | PDF
  • Detail 42
    Lcd Glazed Panel

    Lcd Glazed Panel Download Detail: DWG | DXF | PDF
  • Detail 43

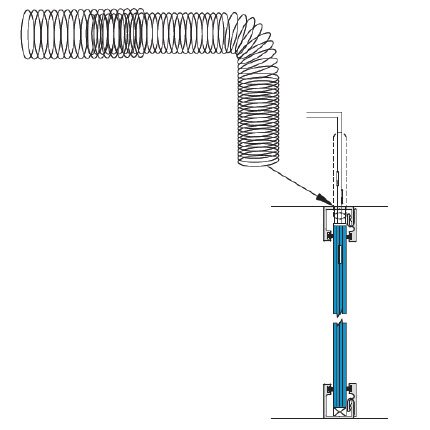

    Single Glazed With Leads

    Single Glazed With Leads Download Detail: DWG | DXF | PDF
  • Detail 44
    Barn Sliding Glass Door

    Barn Sliding Glass Door Download Detail: DWG | DXF | PDF

  • Detail 45
    Cloud Assisted Sliding Door

    Cloud Assisted Sliding Door Download Detail: DWG | DXF | PDF
  • Detail 46
    Cloud Sliding Door At Wall

    Cloud Sliding Door At Wall Download Detail: DWG | DXF | PDF
  • Detail 47
    Cloud Sliding Door

    Cloud Sliding Door Download Detail: DWG | DXF | PDF
  • Detail 48
    Pivot Frameless Glass Swing Door

    Pivot Frameless Glass Swing Door Download Detail: DWG | DXF | PDF

  • Detail 49
    Hinged Glass Swing Door

    Hinged Glass Swing Door Download Detail: DWG | DXF | PDF
  • Detail 50

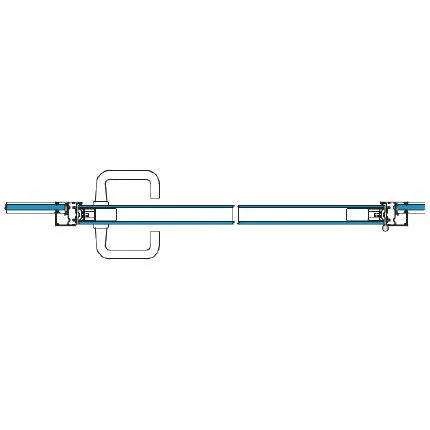

    Double Glazed Acoustic Swing Door

    Double Glazed Acoustic Swing Door Download Detail: DWG | DXF | PDF
  • Detail 51
    Timber Swing Door

    Timber Swing Door Download Detail: DWG | DXF | PDF
  • Detail 52
    Panic Hardware With Rods

    Panic Hardware With Rods Download Detail: DWG | DXF | PDF

  • Detail 53
    Panic Hardware

    Panic Hardware Download Detail: DWG | DXF | PDF

LEED 2009 (v3): MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.

LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.


Door Options

Pivot Glass Door

Pivot Glass Door

Pivot Glass Door (Pair)

Pivot Glass Door (Pair)

Hinged Glass Doors

Hinged Glass Doors

Double Glazed Acoustic Doors

Double Glazed Acoustic Doors

Standard Sliding Doors

Standard Sliding Doors

Barn Sliding Doors

Barn Sliding Doors

Premium Sliding Glass Doors

Premium Sliding Glass Doors

Timber Doors

Timber Doors



Have A Question?

We would be happy to assist you with any additional information you may need. To send us a message, please fill out the form below. If you are looking for pricing or a formal quote please request a quote here.
