Elevare Point Support Single Glazed

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, Revit, CAD & Specs)

  • Maximum Glazing Panel Height: 24'-0"
  • Maximum Glazing Panel Width: 48"

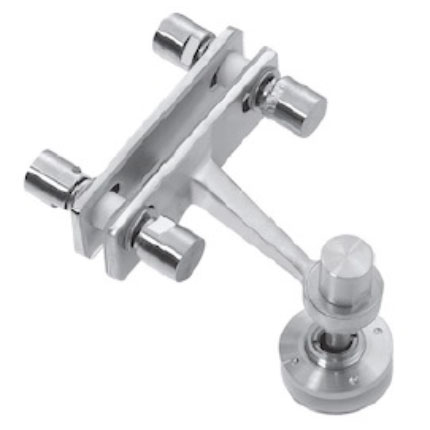

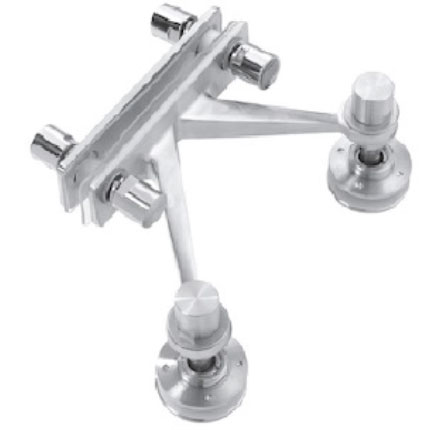

  • Max Weight Supported Per Arm: 110 lbs
  • Glazing Available: 3/8", 1/2", & 9/16"
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Satin Stainless Steel & Polished Stainless Steel

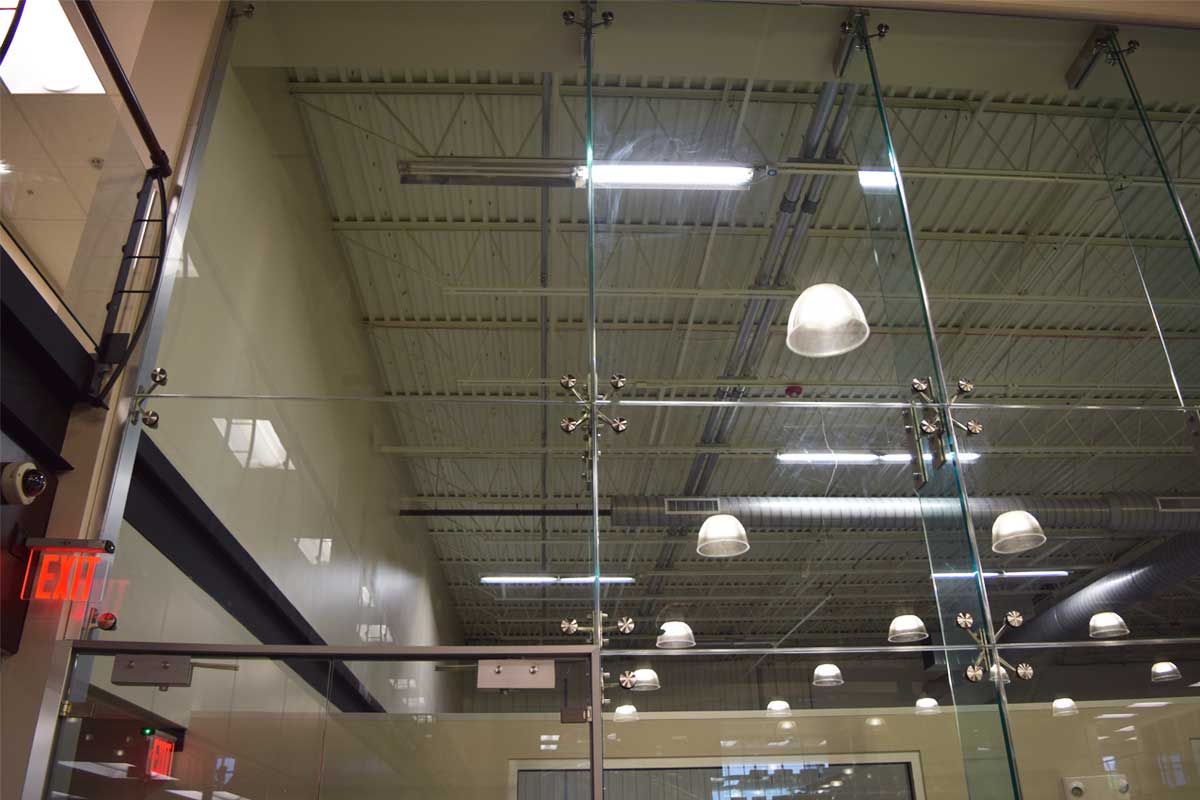

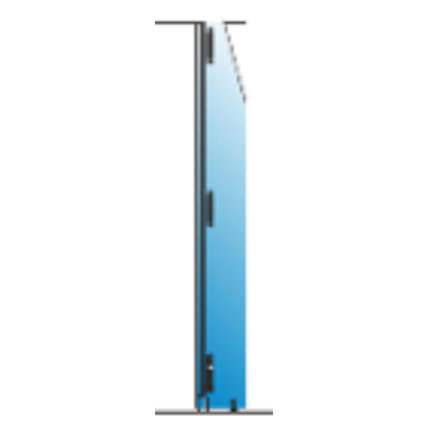

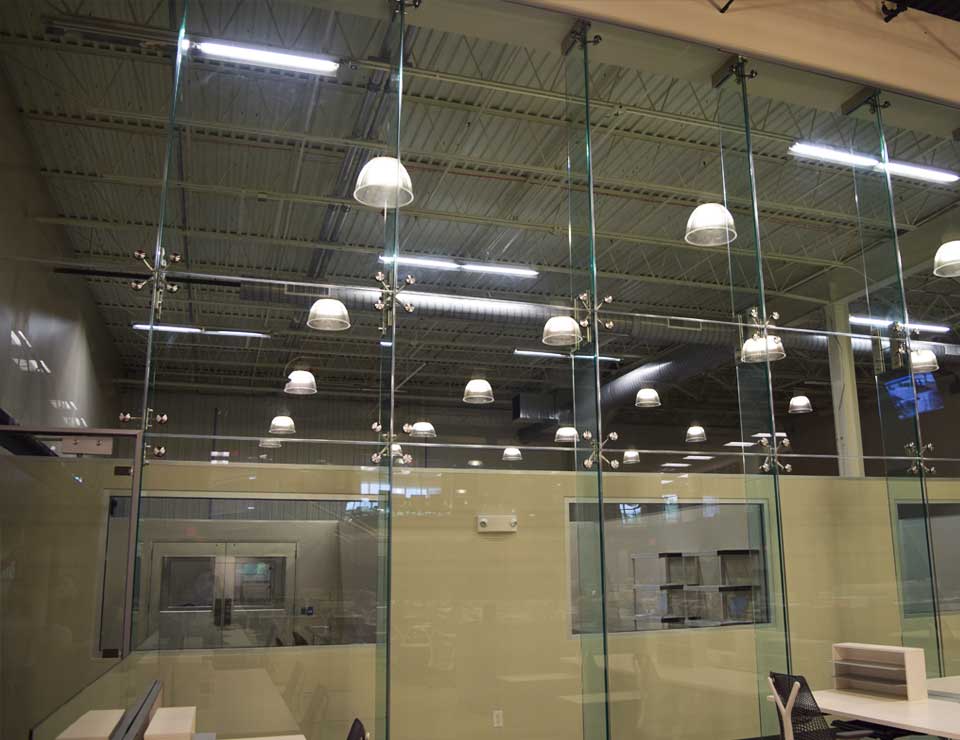

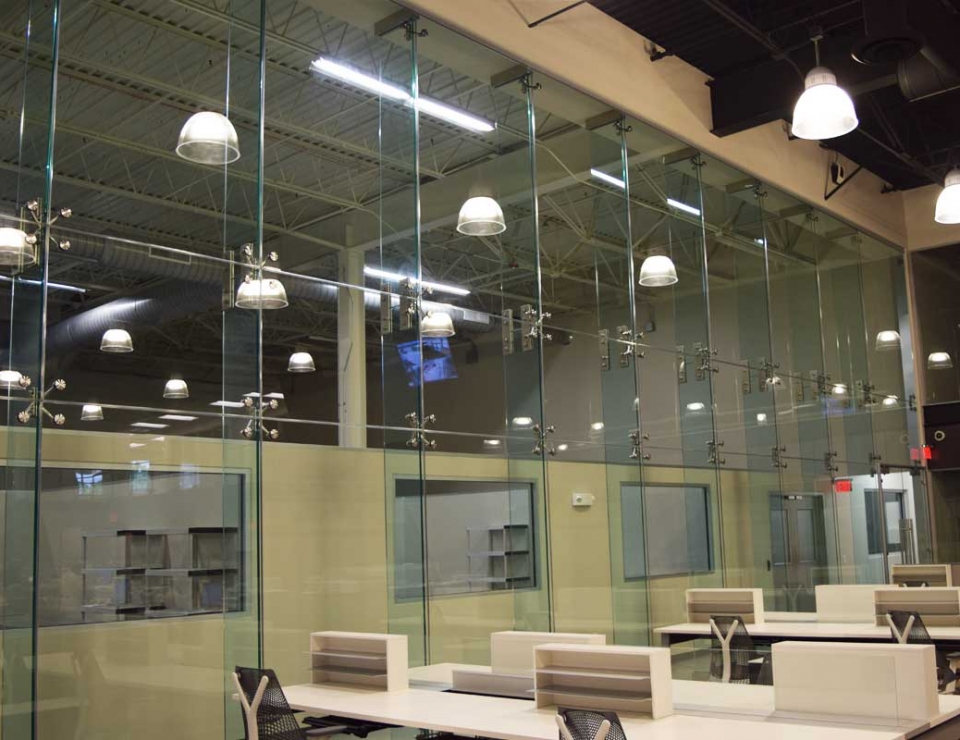

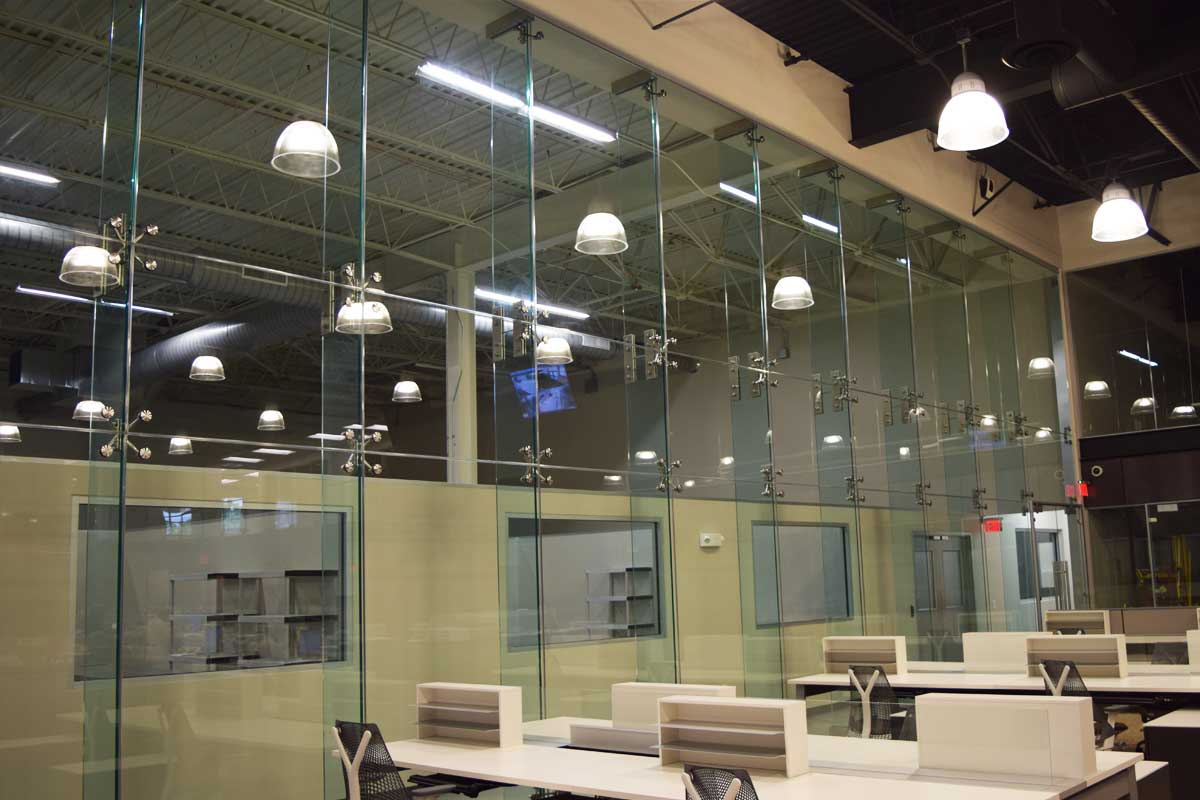

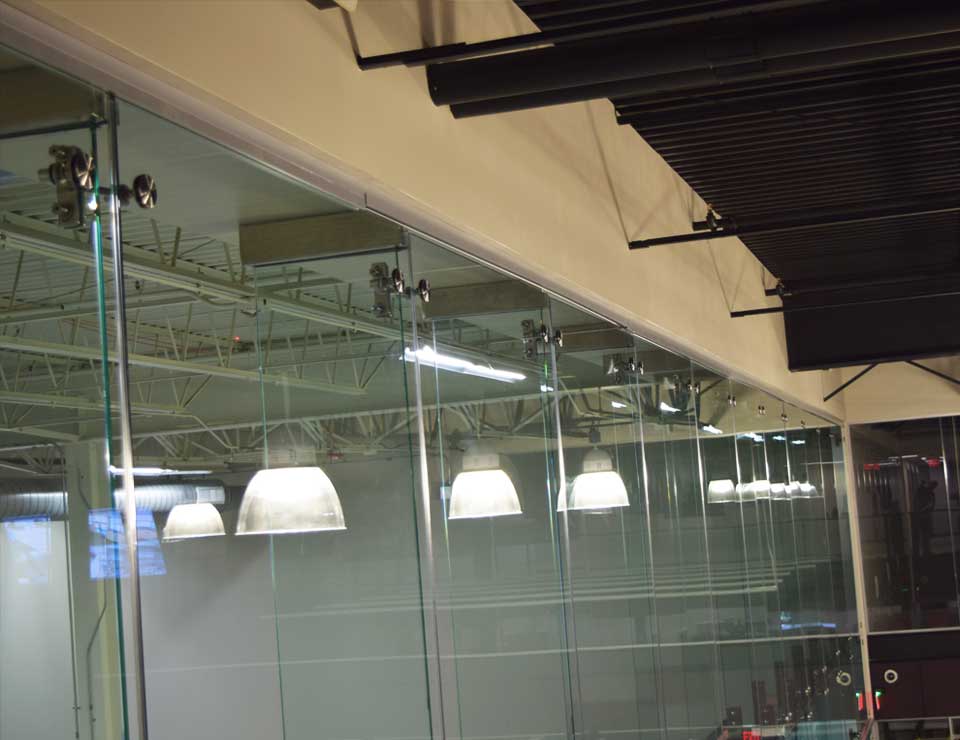

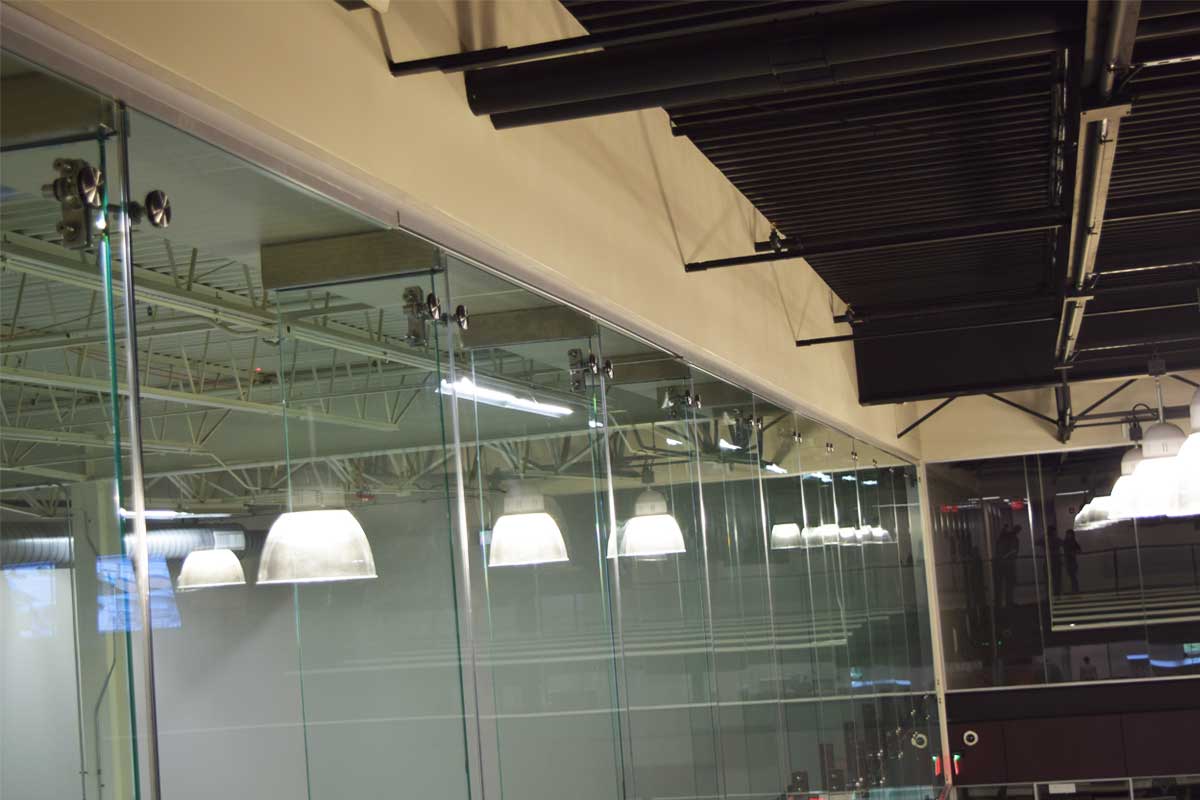

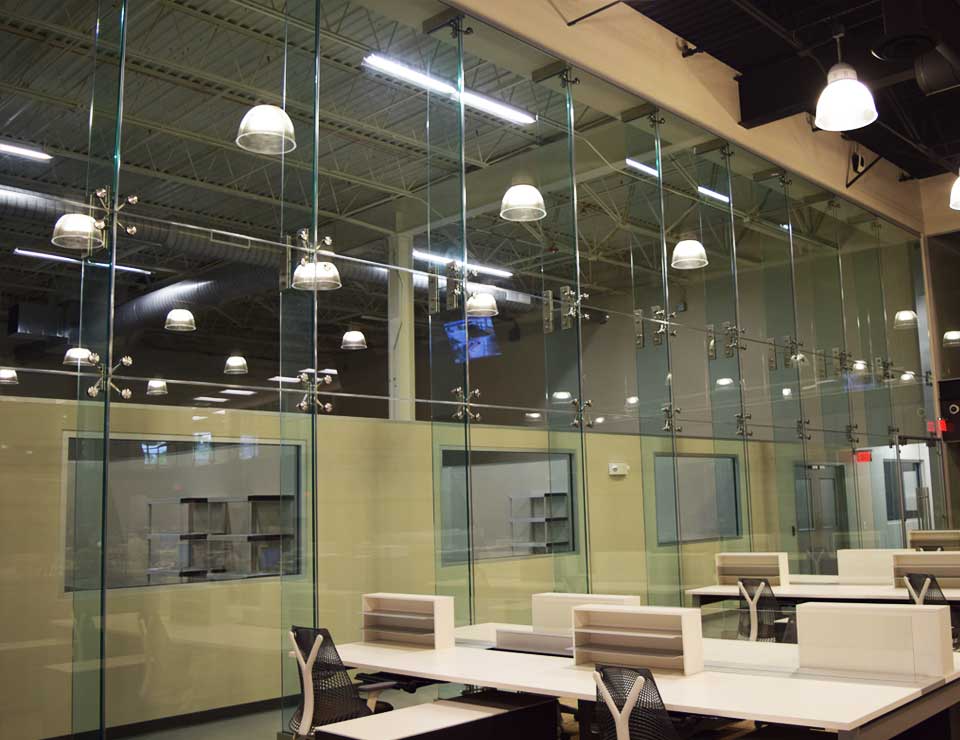

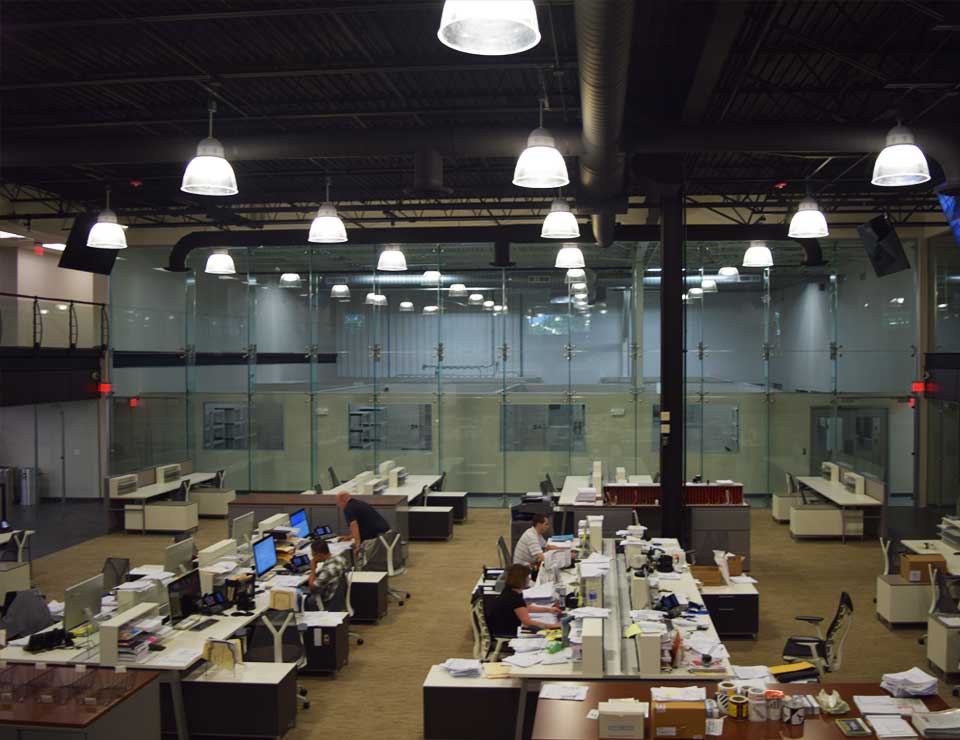

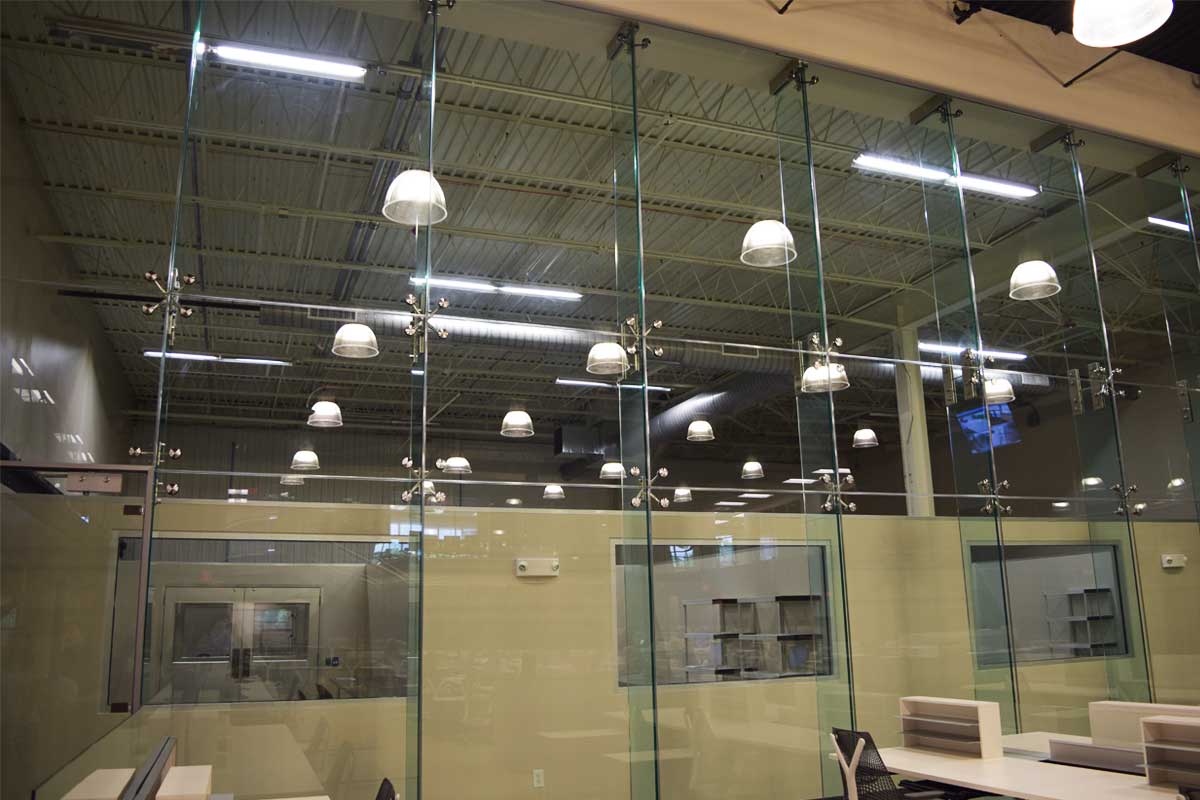

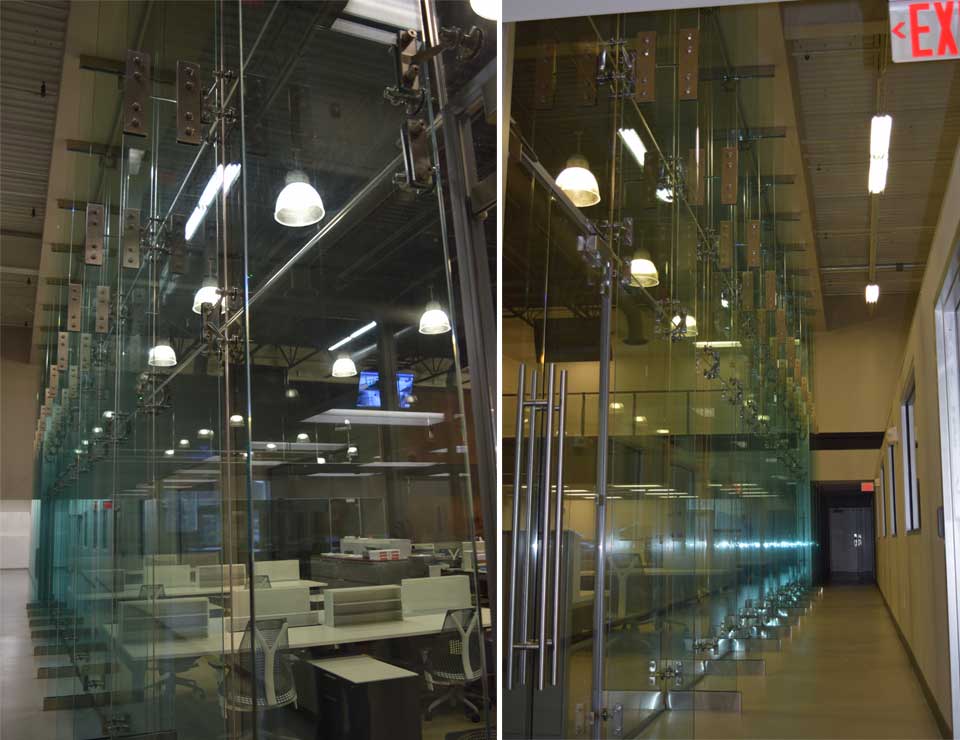

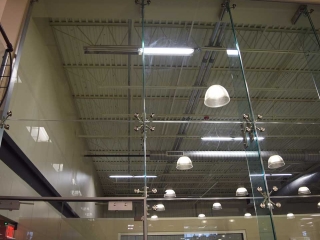

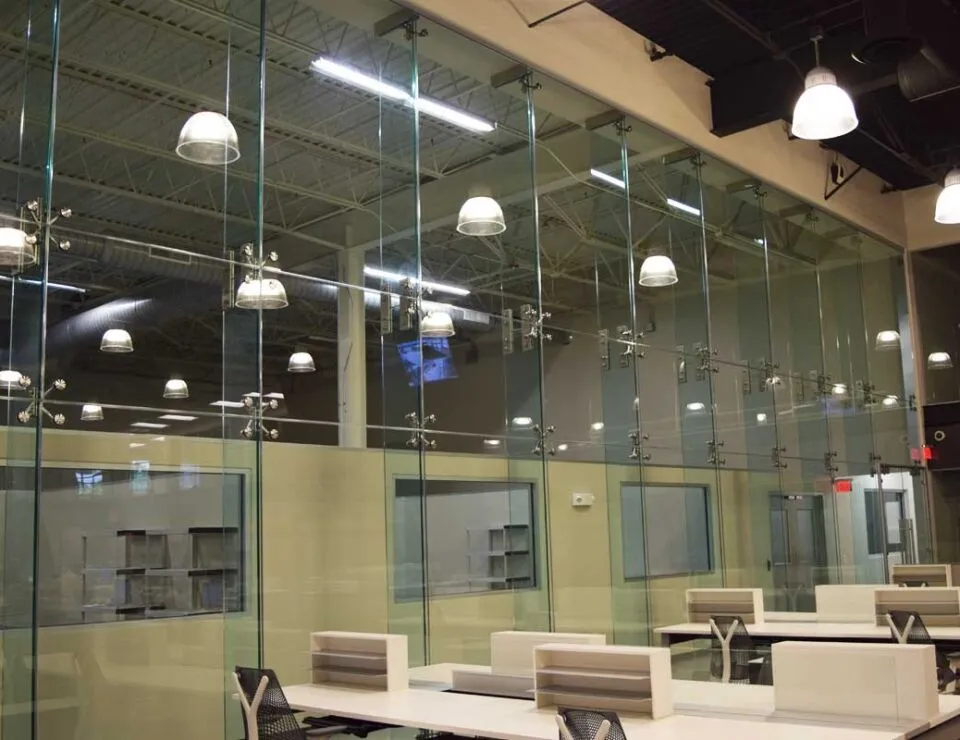

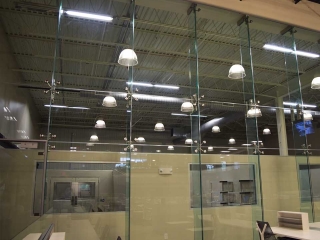

The Elevare Point Support Single Glazed High Wall System is an innovative, contemporary looking, complete supporting interior partition system based on the concept of structural facades with the use of vertical glass fins. The system is a completely versatile and suitable for different needs and environments through the widest spectrum of possible combinations. Glass, poly-carbonate and wood are all compatible with the support components. All perimeters are fastened to solid walls. The Elevare Point Support Single Glazed High Wall System is especially suited for offices, retail spaces and trade fairs.

The Elevare Point Support Single Glazed High Wall System offers a flexible and modular separation of spaces with a contemporary look. It's design allows for the movement, reconfiguration, relocation the connection elements with minimal holes in the main support Structure.

The maximum panel height is 24’-0”, maximum panel width is 48” (panels may be larger with engineering). Configurations may be straight, angled or curved. LCD, pivot, sliding and hinged doors may be installed. Standard frame finishes include: 304 and 316, Satin Stainless Steel and Polished Stainless Steel.

LEED 2009 (v3): MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.

LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

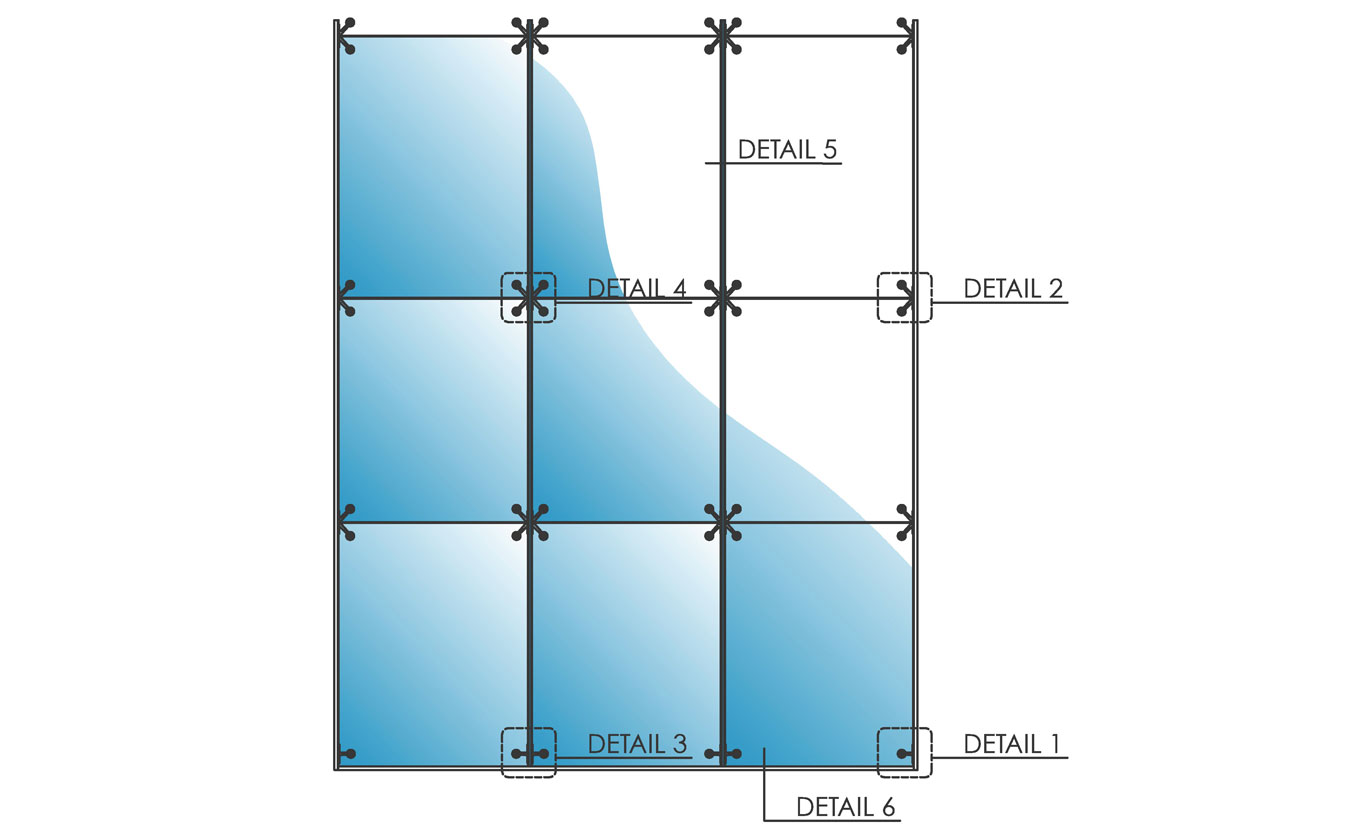

Point Support Single Glazed High Wall System
