Solare Double Glazed Frameless Partition System

Request A Quote
Technical Data
3 Part Spec
Architects Package

(Elevation, CAD Details & Specs)


  • Maximum Glazing Panel Width: 60″
  • Maximum Glazing Panel Height: Full Height up to 12′-0″
  • Glazing Available: 3/8″, 7/16″, 1/2″, 9/16″, 3/4″
  • Available Glazing Types: Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
  • Standard Frame Finishes Available: Standard RAL 9006 and Clear Anodized. Custom Color Powder Coating Available
  • STC Rating: up to 47 (varies by glass thickness)

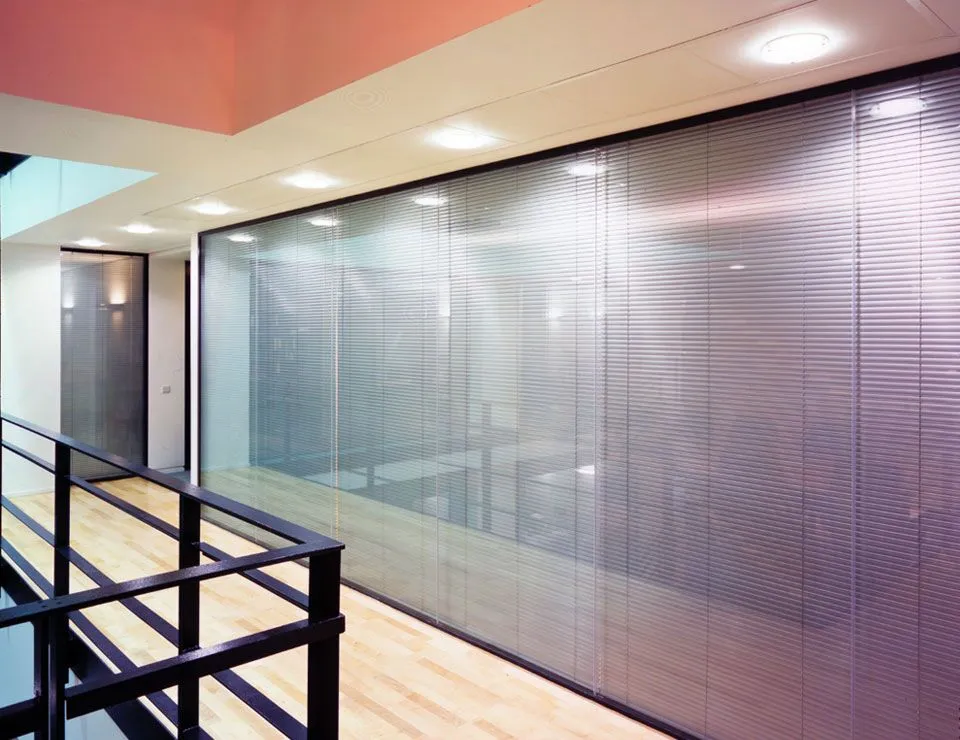

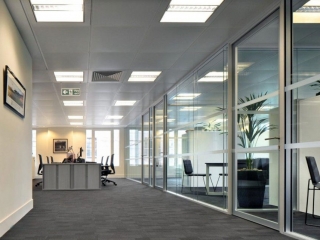

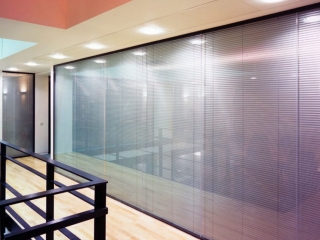

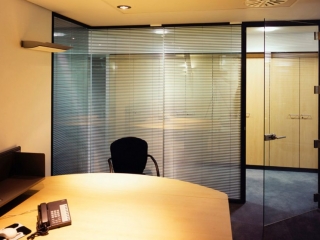

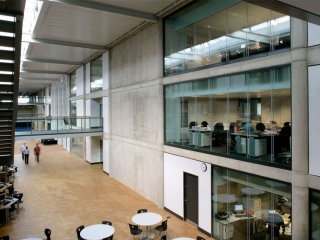

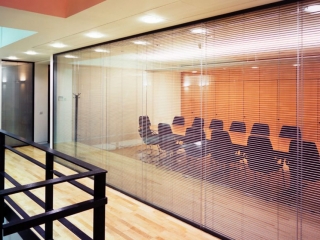

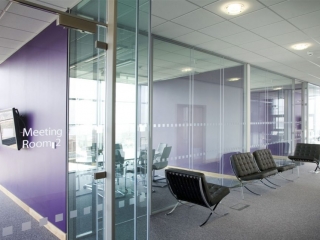

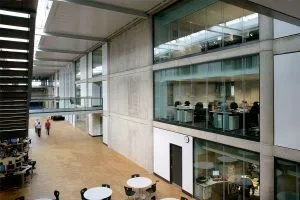

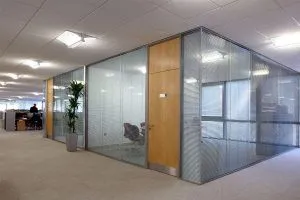

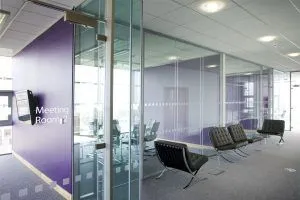

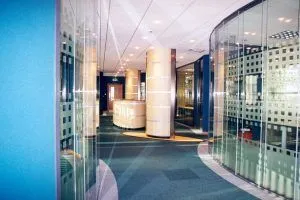

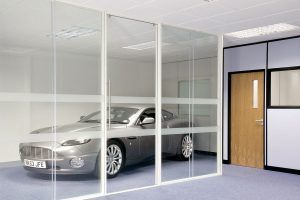

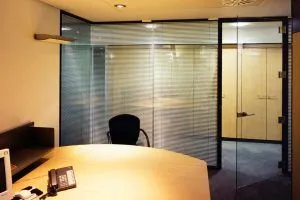

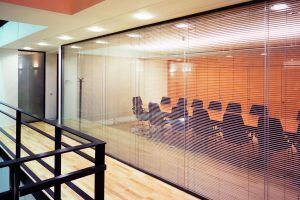

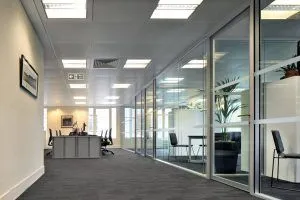

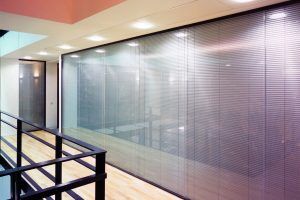

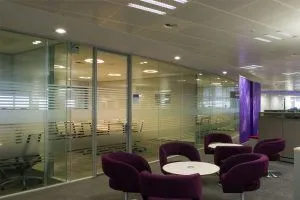

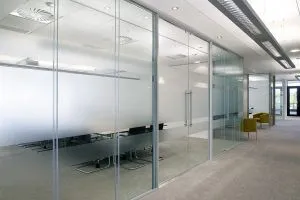

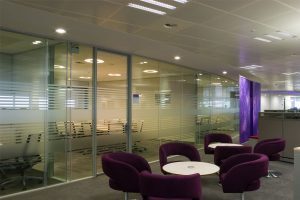

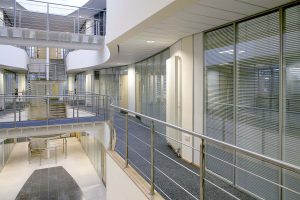

Gallery

Description

The Solare Acoustic Frameless Double Glazed Partition System provides the transparency of glass yet the acoustic rating of a solid wall and with the opaque Lunar Smart Glass or integral operable blind privacy option. With an STC wall rating of 44 and a door rating of up to 41, the system is ideal for interior offices, conference rooms, meeting rooms and atriums. Optional Fire resistance rated assemblies provide up to a rating of 60 minutes.

The 1”x4” aluminum track accommodates tempered, laminated, low iron and Lunar Smart Glass glazing and may be of standard or custom RAL color. The track may also be of a straight or curved configuration. Pivot, sliding and hinged doors may be installed. Wood, steel, aluminum and glass doors (single glazed and double glazed) are all compatible within the double glazed system.

Technical Data

Download Architects Package

(Elevation, CAD Details & Specs)

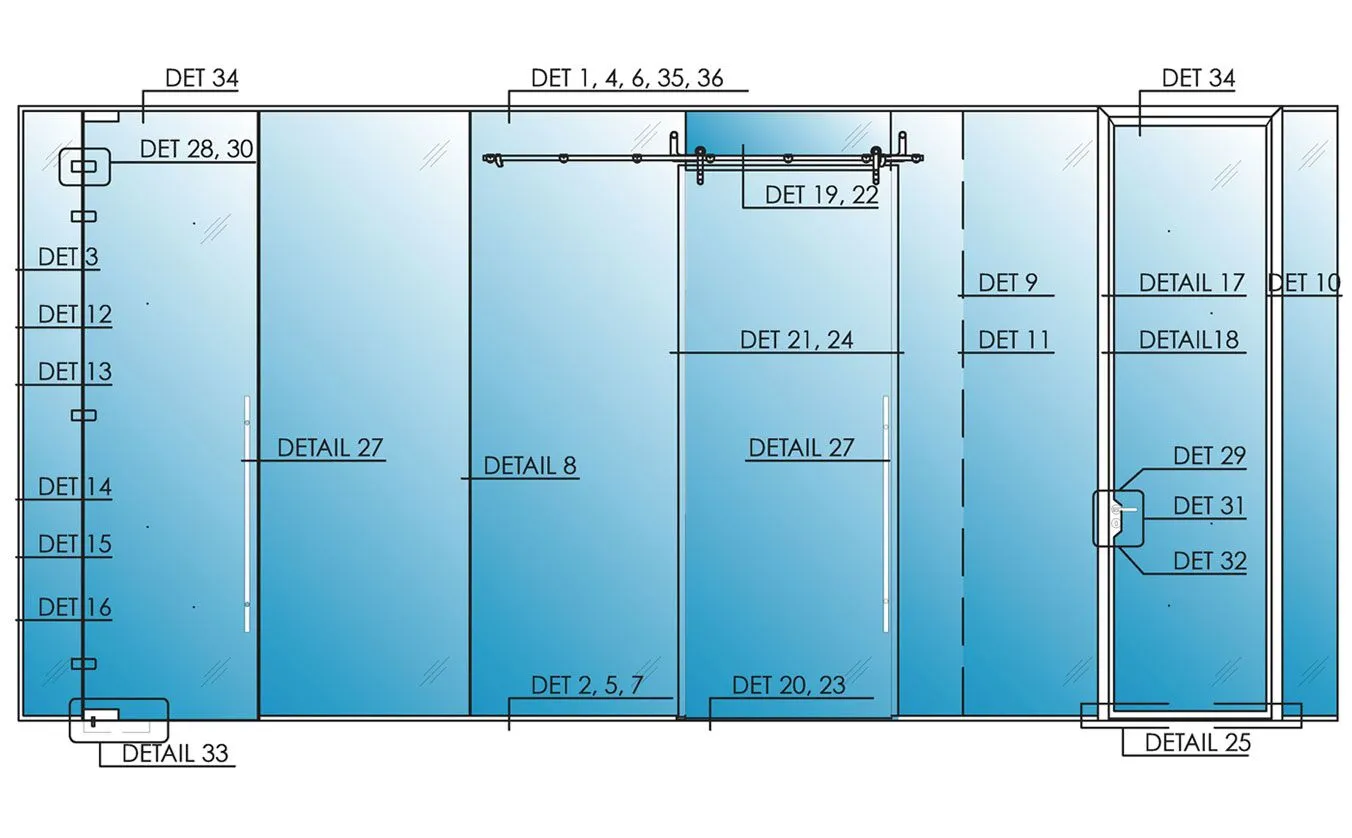

Solare Frameless Double Glazed Elevation
  • Detail 01
    Standard Track Double Glazed Head

    Standard Track Double Glazed Head Download Detail: DWG | DXF | PDF
  • Detail 02
    Standard Track Double Glazed Sill

    Standard Track Double Glazed Sill Download Detail: DWG | DXF | PDF

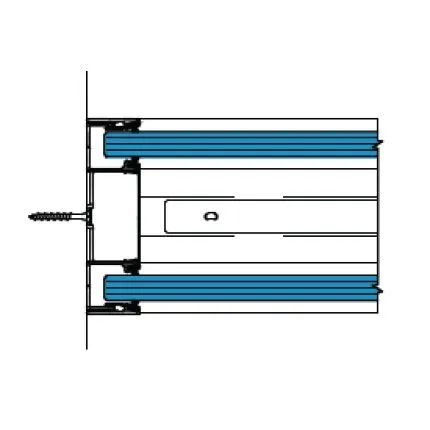

  • Detail 03

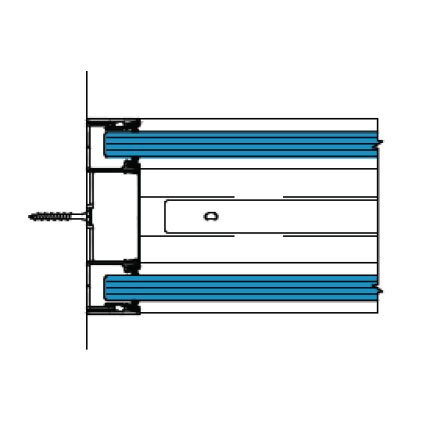

    Standard Track Double Glazed Jamb

    Standard Track Double Glazed Jamb Download Detail: DWG | DXF | PDF
  • Detail 04

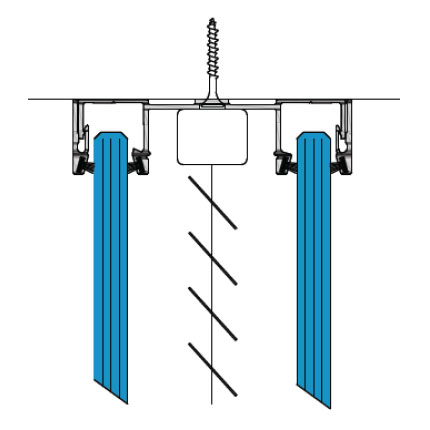

    Standard Track Doulbe Glazed With Blinds Head

    Standard Track Doulbe Glazed With Blinds Head Download Detail: DWG | DXF | PDF

  • Detail 05

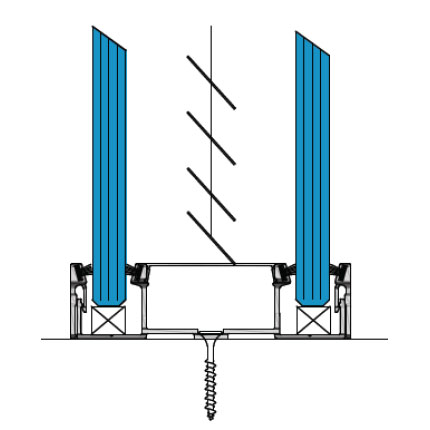

    Standard Track Double Glazed With Blinds Sill

    Standard Track Double Glazed With Blinds Sill Download Detail: DWG | DXF | PDF
  • Detail 06

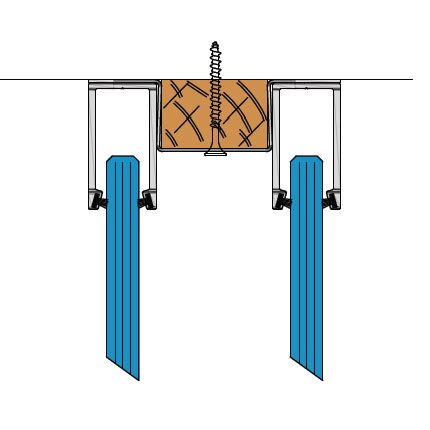

    Deep Deflection Track Double Glazed Head

    Deep Deflection Track Double Glazed Head Download Detail: DWG | DXF | PDF

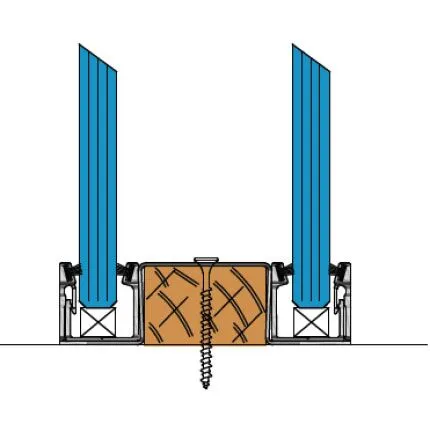

  • Detail 07
    Deep Deflection Track Double Glazed Sill

    Deep Deflection Track Double Glazed Sill Download Detail: DWG | DXF | PDF
  • Detail 08

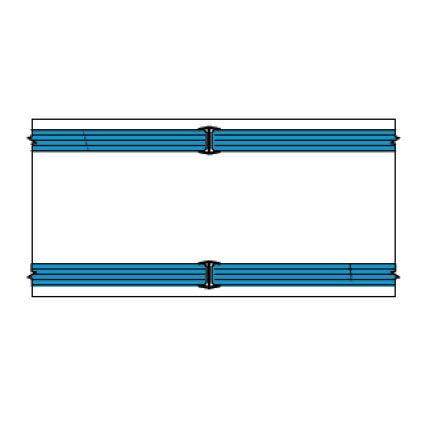

    H Section Straight Joint

    H Section Straight Joint Download Detail: DWG | DXF | PDF

  • Detail 09

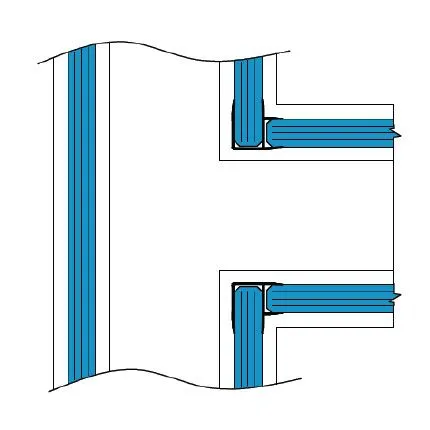

    F Section T Intersection

    F Section T Intersection Download Detail: DWG | DXF | PDF
  • Detail 10
    F Section 90 Corner Horizontal View

    F Section 90 Corner Horizontal View Download Detail: DWG | DXF | PDF
  • Detail 11
    Double Glazed T Intersection

    Double Glazed T Intersection Download Detail: DWG | DXF | PDF

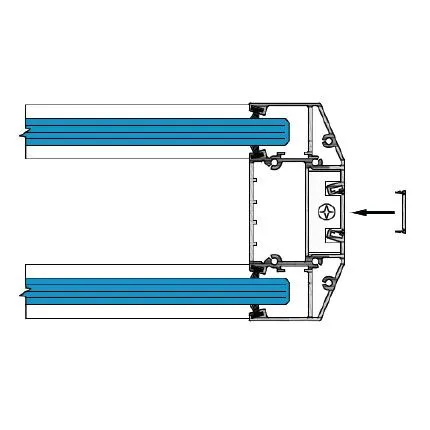

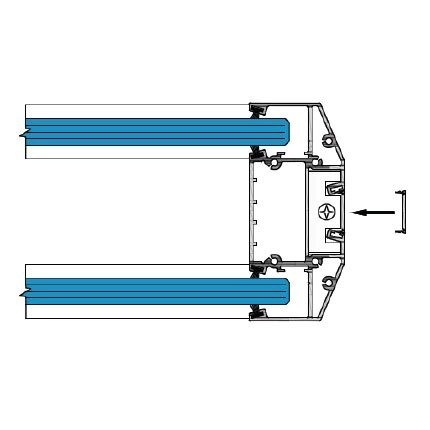

  • Detail 12
    Double Glazed Fair End

    Double Glazed Fair End Download Detail: DWG | DXF | PDF

  • Detail 13

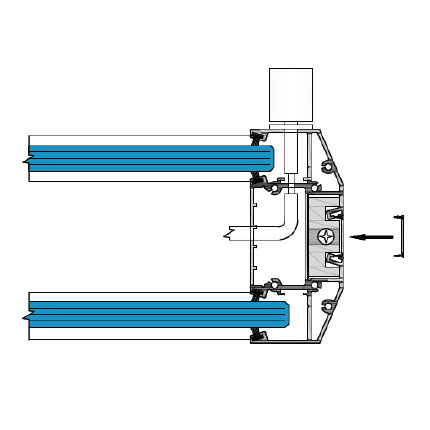

    Double Glazed Fair End With Manual Blind Control

    Double Glazed Fair End With Manual Blind Control Download Detail: DWG | DXF | PDF
  • Detail 14

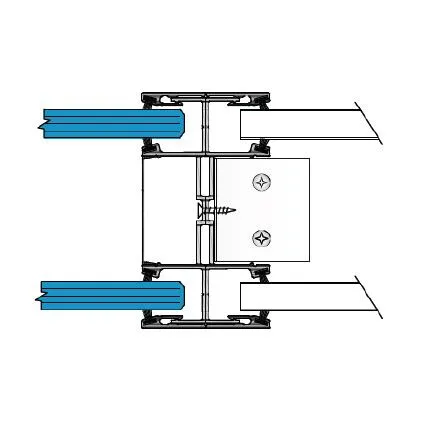

    Double Glazed Frame To Solid Mullion

    Double Glazed Frame To Solid Mullion Download Detail: DWG | DXF | PDF
  • Detail 15

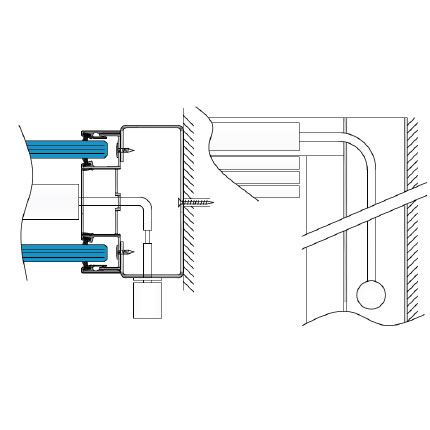

    Double Glazed Wall Abutment Manual Blind Control

    Double Glazed Wall Abutment Manual Blind Control Download Detail: DWG | DXF | PDF
  • Detail 16

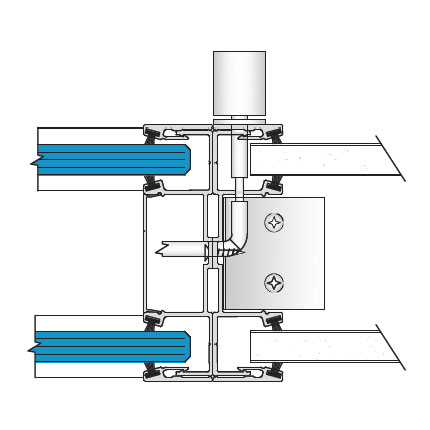

    Double Glazed Frame To Solid Mullion With Manual Blind Control

    Double Glazed Frame To Solid Mullion With Manual Blind Control Download Detail: DWG | DXF | PDF

  • Detail 17

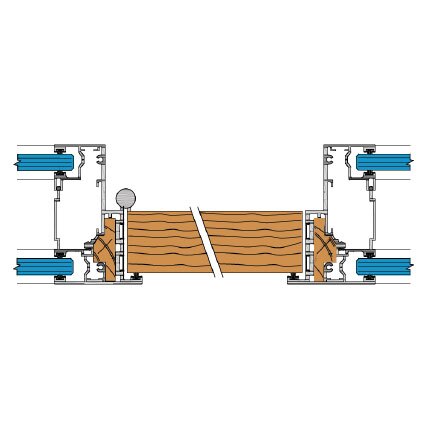

    Double Glazed Door Frame Timber Door

    Double Glazed Door Frame Timber Door Download Detail: DWG | DXF | PDF
  • Detail 18

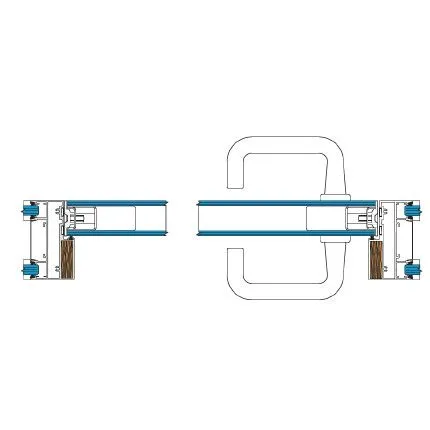

    Double Glazed Flush Door Frame

    Double Glazed Flush Door Frame Download Detail: DWG | DXF | PDF
  • Detail 19

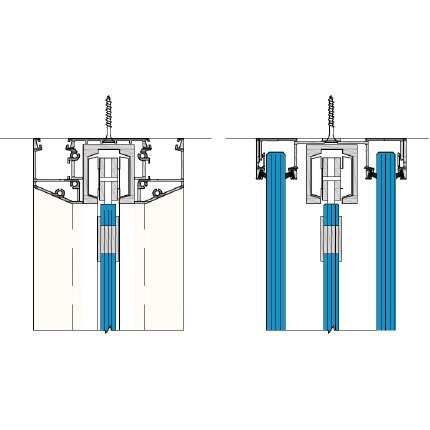

    Double Glazed Pocket Sliding Door Head

    Double Glazed Pocket Sliding Door Head Download Detail: DWG | DXF | PDF
  • Detail 20
    Double Glazed Pocket Sliding Door Sill

    Double Glazed Pocket Sliding Door Sill Download Detail: DWG | DXF | PDF

  • Detail 21

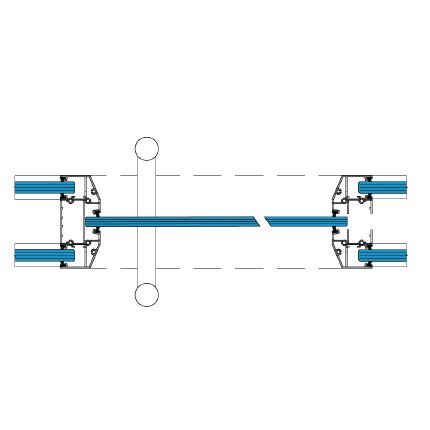

    Double Glazed Pocket Sliding Door Jamb

    Double Glazed Pocket Sliding Door Jamb Download Detail: DWG | DXF | PDF
  • Detail 22

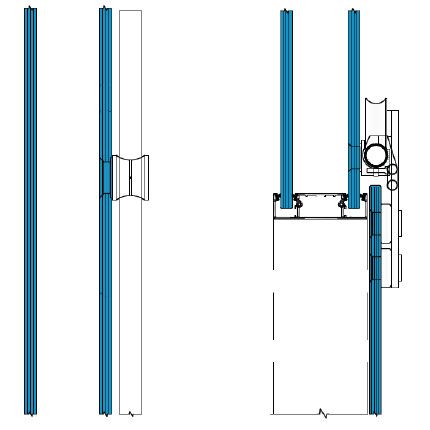

    Double Glazed Sliding Door Head

    Double Glazed Sliding Door Head Download Detail: DWG | DXF | PDF
  • Detail 23

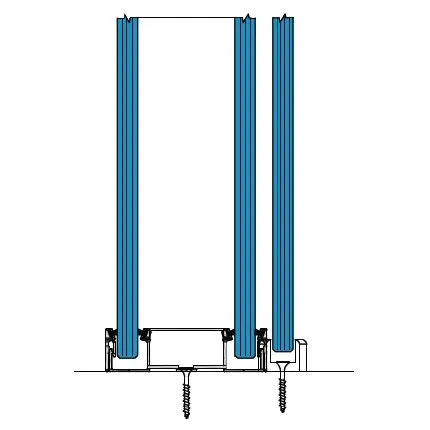

    Double Glazed Sliding Door Sill

    Double Glazed Sliding Door Sill Download Detail: DWG | DXF | PDF

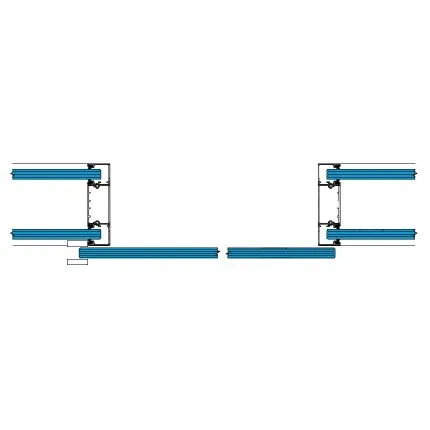

  • Detail 24
    Double Glazed Sliding Door Jamb

    Double Glazed Sliding Door Jamb Download Detail: DWG | DXF | PDF

  • Detail 25

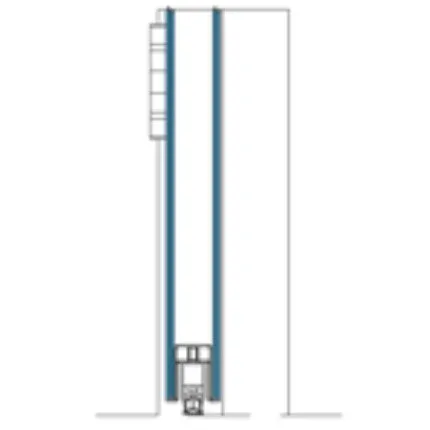

    Dropped Down Door Seal

    Dropped Down Door Seal Download Detail: DWG | DXF | PDF
  • Detail 26

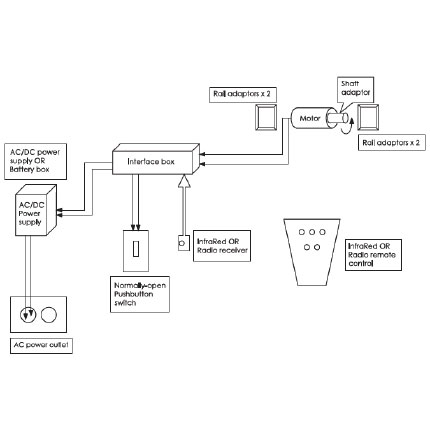

    Motorized Blinds

    Motorized Blinds Download Detail: DWG | DXF | PDF
  • Detail 27

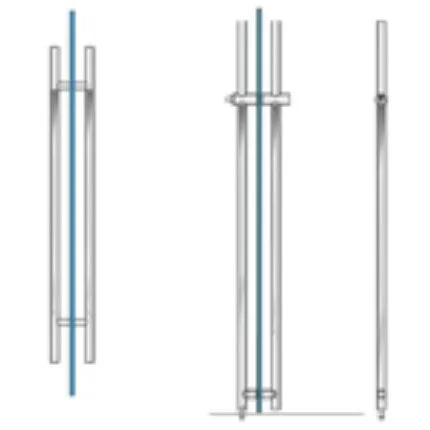

    Door Pull

    Door Pull Download Detail: DWG | DXF | PDF

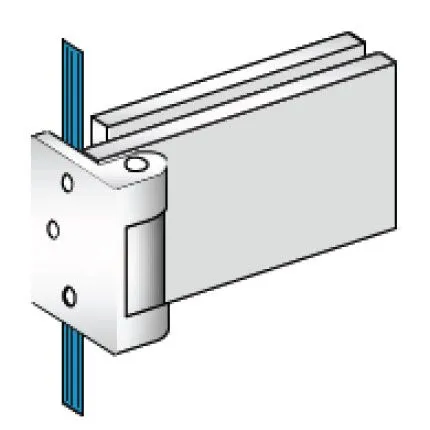

  • Detail 28
    Free Swing Hinge

    Free Swing Hinge Download Detail: DWG | DXF | PDF

  • Detail 29

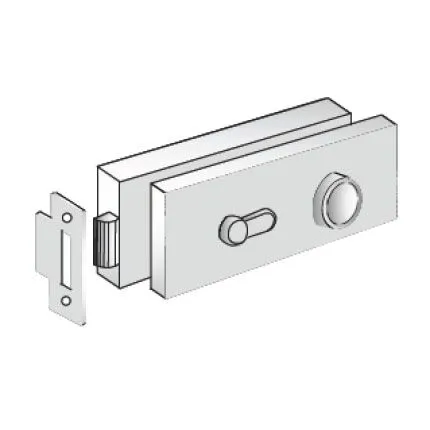

    Lockset Center Mount

    Lockset Center Mount Download Detail: DWG | DXF | PDF

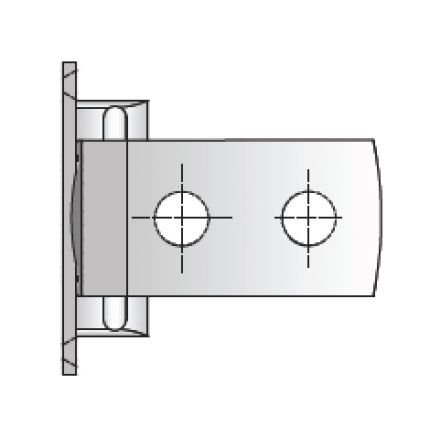

  • Detail 30
    Frame To Glass Hydraulic Hinge

    Frame To Glass Hydraulic Hinge Download Detail: DWG | DXF | PDF
  • Detail 31

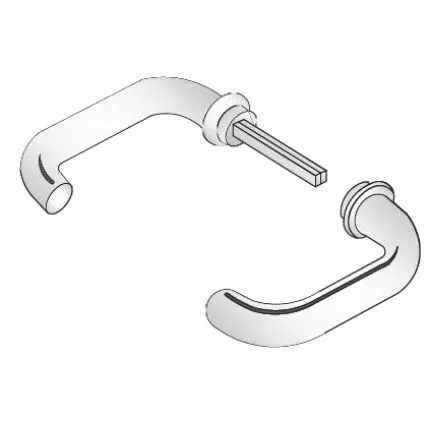

    Lever Handle

    Lever Handle Download Detail: DWG | DXF | PDF
  • Detail 32

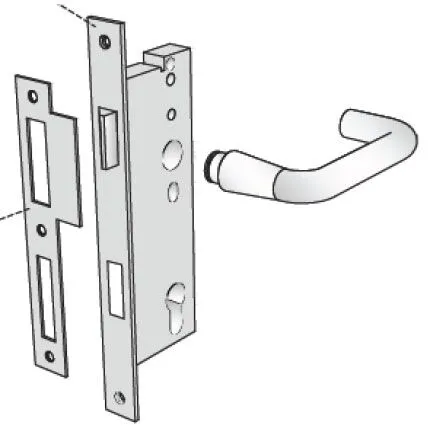

    Lever Latch And Handle

    Lever Latch And Handle Download Detail: DWG | DXF | PDF

  • Detail 33

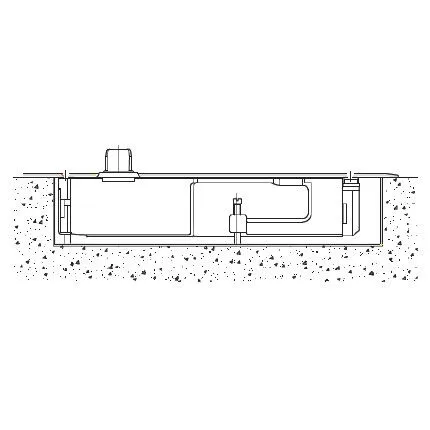

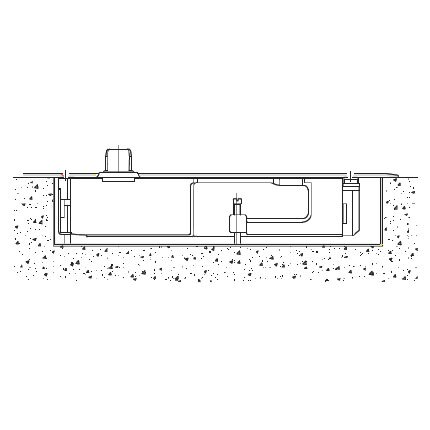

    Floor Recessed Door Closer

    Floor Recessed Door Closer Download Detail: DWG | DXF | PDF
  • Detail 34

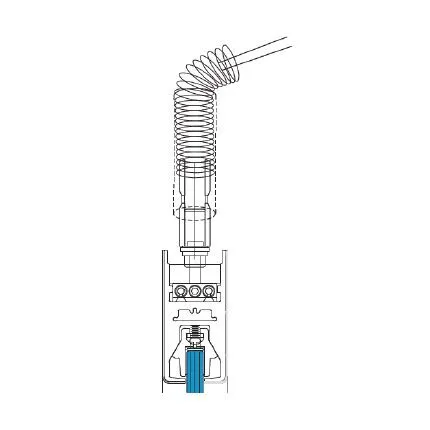

    Lunar Smart Glass Glazed Door

    Lunar Smart Glass Glazed Door Download Detail: DWG | DXF | PDF
  • Detail 35
    Lunar Smart Glass Glazed Panel

    Lunar Smart Glass Glazed Panel Download Detail: DWG | DXF | PDF
  • Detail 36

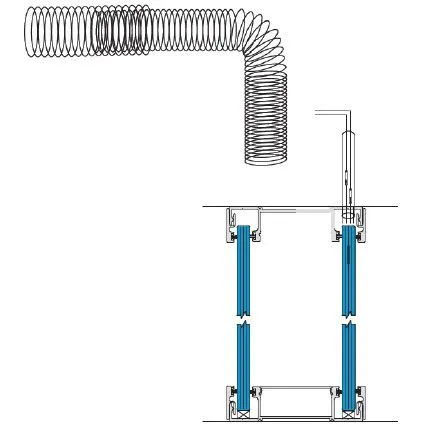

    Double Glazed With Leads

    Double Glazed With Leads Download Detail: DWG | DXF | PDF

  • Detail 37

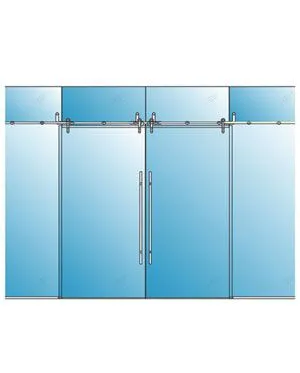

    Barn Sliding Glass Door

    Barn Sliding Glass Door Download Detail: DWG | DXF | PDF
  • Detail 38

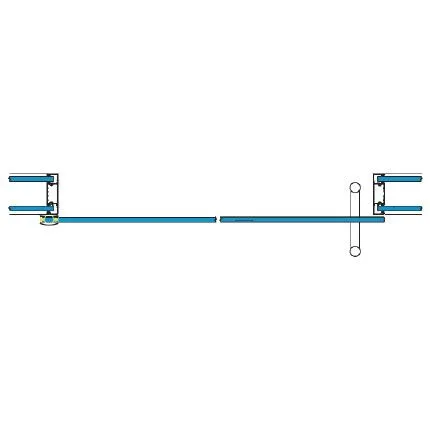

    Cloud Assisted Sliding Door

    Cloud Assisted Sliding Door Download Detail: DWG | DXF | PDF
  • Detail 39
    Pocket Sliding Glass Door

    Pocket Sliding Glass Door Download Detail: DWG | DXF | PDF
  • Detail 40
    Double Glazed Acoustic Swing Door

    Double Glazed Acoustic Swing Door Download Detail: DWG | DXF | PDF

  • Detail 41
    Timber Swing Door

    Timber Swing Door Download Detail: DWG | DXF | PDF
  • Detail 42

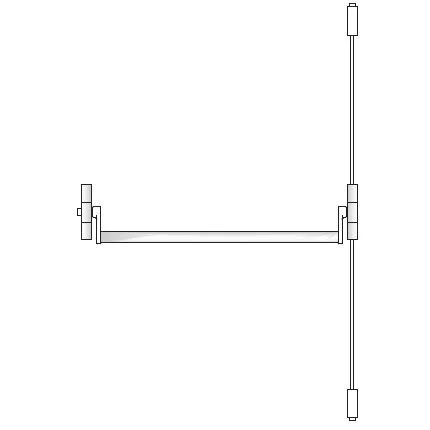

    Panic Hardware With Rods

    Panic Hardware With Rods Download Detail: DWG | DXF | PDF
  • Detail 43

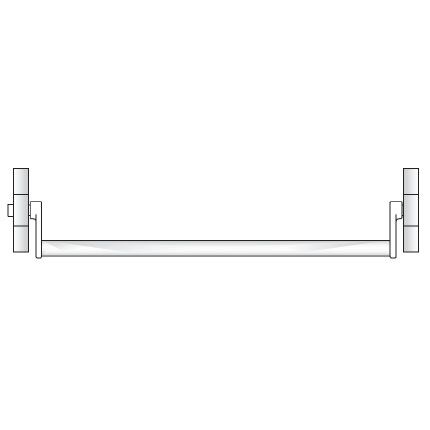

    Panic Hardware

    Panic Hardware Download Detail: DWG | DXF | PDF

The Solare Acoustic Double Glazed Partition System meets LEED Characteristics:

LEED 2009 (v3): MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.

LEED v4: MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

Q: Maximum height achievable?
A: Standard height allowable 10’0” for 1/2″ glass. We can go higher with 5/8″ or 3/4″ glass and/or structural fins. (Anything higher can be engineered accordingly with the assistance of heavier track or seismic header channel and/or thicker glass).

Q: What is the maximum glass size available?
A: 48” x 120” as a rule of thumb however, job conditions, unloading conditions and elevator size may determine the largest glass size that can be used on the job.

Q: What are the glass thicknesses that can fit the system?
A: Our system is extremely versatile, we can support – 1/2″, 5/8″ & 3/4″ glass thicknesses.

Q: Which doors can I incorporate with the system?
A: All glass doors, all glass doors with acoustic frame, acoustical double glazed door with acoustic frame.

Q: What are my Finished opening Tolerances?
A: On the floor or ceiling or walls the tolerance allowable out of plumb , level and square are 1/8” – 3/8” at Maximum. (anything outside of these tolerances will require either shimming or custom shaped or cut glass to fit perfectly).

Q: What are the standard aluminum and hardware finishes available?
A: Brushed or polished stainless steel.

Q: Can I select a custom color for the aluminum paint finish?
A: You may choose any color or finish of your choice but know that anything outside of the standard, additional costs may apply. We can match any RAL color.

Q: Does Avant offer design and engineering assistance?
A:Yes, we can assist in the planning of your project, please see our Engineering & Design Service

Q: What is the tested sound rating for the system?
A: Lab tested 35 STC for a single glazed system, up to 44 STC for a double glazed system.

Q: What is the Avanti material warranty?
A: Our material warranty is 2 years.

Q: What is the lead time for the framing system?
A: 4-6 weeks for most systems and applications. Custom finishes, custom hardware and custom details will add to the lead time.

Q: How ready should my surrounding opening be for dimensions to be taken?
A: Preferred to be a finished/finalized opening when taking dimensions but if it is for an un-built space, we would work off HOLD to dimensions and you and or your Framing Carpenter agree on and have signed off so the opening is built to the dimensions that all the parties agree and the Glass was the same. This will help with lead times so that as soon as your opening is built, your glazing materials are there and ready to go.


Door Options

Pivot Glass Door

Pivot Glass Door

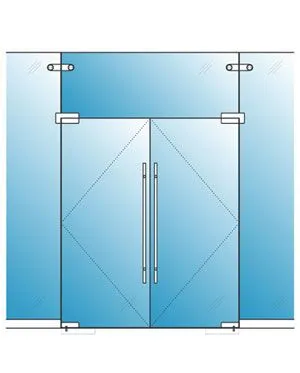

Pivot Glass Door (Pair)

Pivot Glass Door (Pair)

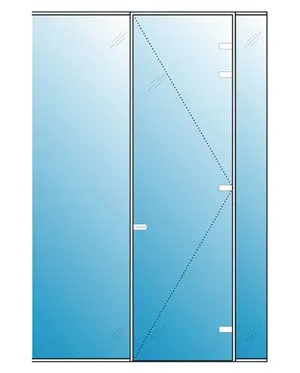

Hinged Glass Doors

Hinged Glass Doors

Double Glazed Acoustic Doors

Double Glazed Acoustic Doors

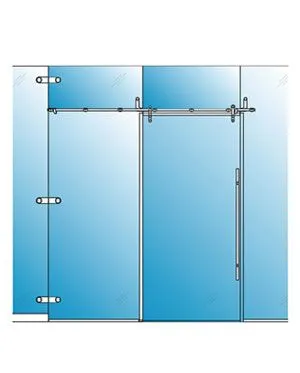

Standard Sliding Doors

Standard Sliding Doors

Barn Sliding Doors

Barn Sliding Doors

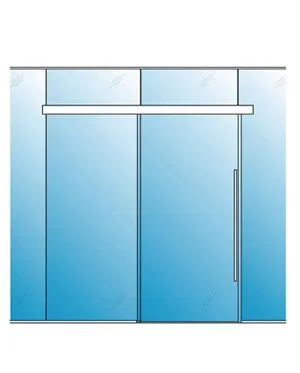

Premium Sliding Glass Doors

Premium Sliding Glass Doors

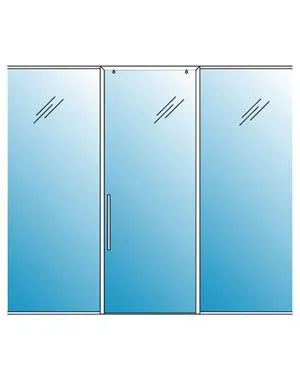

Pocket Sliding Glass Doors
